    Rapid Ref : CK-3GHSLD  Mfr Ref : 3GHSLD

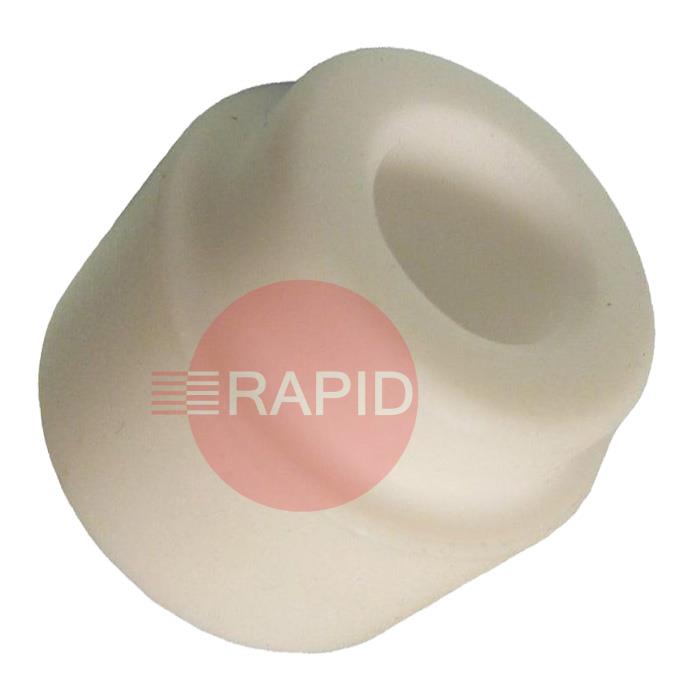

    Large Diameter Gas Lens Heatshield
    3GHSLD CK-3GHSLD

    £12.36  EX VAT
    SSP Suggested Selling Price = £24.72  YOU SAVE £12.36

    CK TL26 Large Diameter Gas Saver Spares FAQs

    Large diameter gas saver collets, collet bodies, gas lens bodies, heat shields and cups for a heavier-duty TIG torch.

    What makes a large diameter gas saver front end different from a standard one?icon-minus-redicon-plus-red

    A large diameter front end pairs a wider gas lens body, with its fine mesh diffuser, with a wider cup. A welding-equipment maker's manual says gas lens parts reduce turbulence and improve the shield gas coverage pattern, which suits jobs where coverage matters.

    Because the diameters are different, the body, cup and heat shield are made as a set and are not normally interchangeable with the standard-diameter parts. The collet is a separate part that still grips the tungsten, and it must suit the electrode diameter you are running.

    When is it worth choosing large diameter parts?icon-minus-redicon-plus-red

    Large diameter parts are usually chosen where a wider gas shield and longer tungsten stickout are needed, for example on joints where air contamination matters such as stainless steel. Some welders also like to rest or walk the cup along the work. For reactive metals such as titanium the procedure may call for additional shielding, so follow your welding procedure rather than relying on the cup alone.

    The trade-off is bulk: a bigger cup can block access to tight joints and can hide more of the joint from view than a slimmer one. If your work is mostly easy-access mild steel, a standard or shorter set may be enough. The material, joint and your procedure should guide the choice.

    Should I choose a long alumina cup or a borosilicate glass cup for large diameter work?icon-minus-redicon-plus-red

    A torch maker's manual says alumina cups suit general-purpose work and where impact resistance is needed, and that a ceramic (lava) type is used when reflected heat is high. Alumina is opaque. Clear borosilicate glass cups let you see the tungsten and the weld path, which helps with setting up and in corners.

    Glass is generally less tolerant of impact and of being dragged on the work, and any cup can crack if overheated or dropped. Limits vary with the maker, so check the torch manual and inspect every cup for cracks before use, replacing any that are damaged.

    How do I identify the right large diameter parts for my torch?icon-minus-redicon-plus-red

    Find the torch series or style in the manual or on the torch, then confirm you need the large diameter version of the gas saver parts rather than the standard or short one. Parts from other torch families can look similar but have different threads and diameters.

    Note the tungsten diameter you use, because the collet and body are sized to it. Compare the worn part with the new one: thread, length and diameter should match. If something only fits with force, it is wrong. Our team can help you match a part if you give us the torch series and the electrode size.
