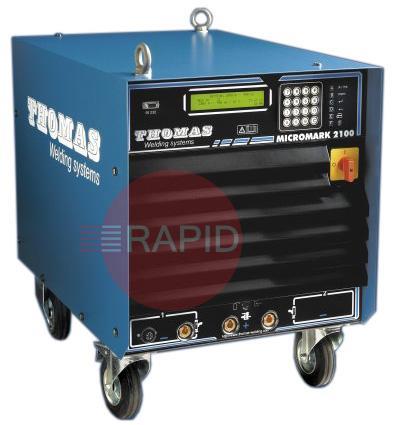

The MICROMARK drawn arc stud welding unit : This line of stud welding equipments is a unique, fully programmable,microprocessor-controlled stud welding system with great versatility and near-perfect reliability. Features include : 9 memories, immediate digital verification of all weld parameters, diagnosis of weld and system deviations, self-monitoring system, computer/printer connection, large display.
Specification
Weldable studs: : Ø 3 - Ø 22 (M24) in Steel and Stainless Steel
(M3 - M12 in Aluminium with inert gas)
Stud Welding current : 100 A to 2100 A
Stud Welding time :12 mS to 1400 mS
Stud Welding Range : Ø 3 - Ø 22 (M24)
Short Cycle Range : M 3 to M 12
Duty cycle : Up to 60 studs / min.
Incoming power : 230 V / 400 V - 63 A
Size (w x h x l) : 520 x 730 x 820 mm
Protection : IP 21
Insulation Class :1
