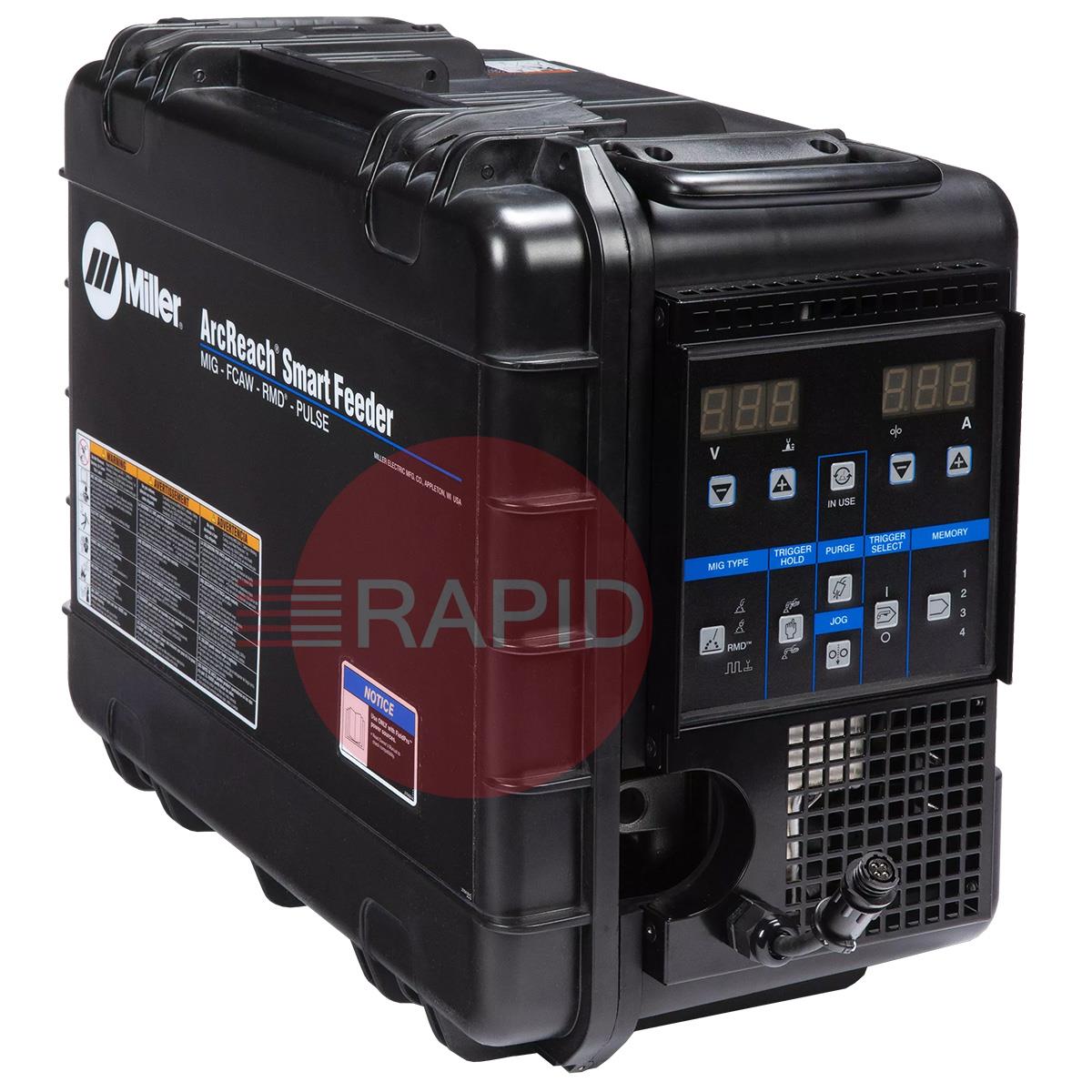

ArcReach Smart Feeder system delivers excellent RMD and Pulse MIG, MIG and Flux-Cored welding up to 60 meters away from the power source with no control cables. This system automatically shifts all controls to the Smart Feeder including weld process selection, material type and wire diameter, gas type, wire feed speed and voltage.
Specification
- Input Power: XMT 350 FieldPro connected to three-phase power or an ArcReach-equipped engine drive
- Input Welding Circuit Rating: 275 A at 60% duty cycle
- Wire Feed Speed: 1.3–12.7 m/min. dependent on arc voltage
- Wire Diameter Capacity: 0.9–1.1/1.2 mm
- Max. Spool Size Capacity: 305 mm, 15 kg
- Dimensions: H: 457 mm x W: 330 mm x D: 546 mm
- Net Weight: 23 kg
