Orbitalum Accessories for BRB / REB machines FAQs
Answers on the clamping, lubrication and air-supply accessories used with portable pipe end preparation machines.

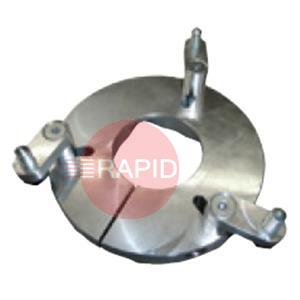

How does inside-diameter clamping hold the pipe or tube?

Portable pipe end preparation machines of this type are clamped from the inside. A clamping head fitted with a set of clamping wedges locates in the open end of the pipe and expands against the bore, so the machine is centred on the inside of the pipe. Makers describe the pipe dimension as quick to set for each wedge set.
Because the clamp works off the bore, the inside diameter matters more than the outside diameter when you choose the wedge set. Check that the range on the data plate or in the manual covers the pipe, and keep loose scale, swarf and burrs out of the bore so the wedges seat properly.
What are the health risks of cutting fluids and how do I reduce them?

The HSE says skin contact with metalworking fluids can cause dermatitis, mainly on the hands and arms, and that breathing in the mist can cause lung problems such as occupational asthma. Its key messages are to prevent or limit skin contact, to prevent or control airborne mist, and to keep the fluid in good condition.
In practice that means using only the amount you need, avoiding soaked clothing, washing fluid off the skin, and reading the product's safety data sheet. Your risk assessment should decide what protective equipment and ventilation are needed.
Why is the bevel angle and finish important before welding?

Bevelling the pipe ends gives access to all parts of the joint, so the weld can fuse properly right through. Single-sided joints need dimensionally accurate preparation and fit-up, the included angle is what matters for access, and if the angle or gap is too small there is not enough room to hold a correct arc length.
The angle, root face and gap that you need are set by your weld procedure and the standard for the job, so check those before you set up the machine. A clean, even, burr-free finish also helps the pipe ends fit together properly, so check the finished prep before you move on.
What should I check on the air hose and quick couplings?

If your machine is air-driven, check the hose before each use for cuts, bulges, abrasion and other damage, and tag and replace any defective hose straight away. Safety guidance recommends a safety cable or whip check to stop the hose moving uncontrollably if a connection fails, and a mechanical lock on connections.
Never run hose, couplings or the machine above the maker's pressure rating, make sure couplings are fully engaged and clean, and do not run the hose where it can be trodden on. The HSE has guidance on compressed air safety that covers portable pneumatic equipment, including inspection, maintenance and training.
