    Rapid Ref : 790093295

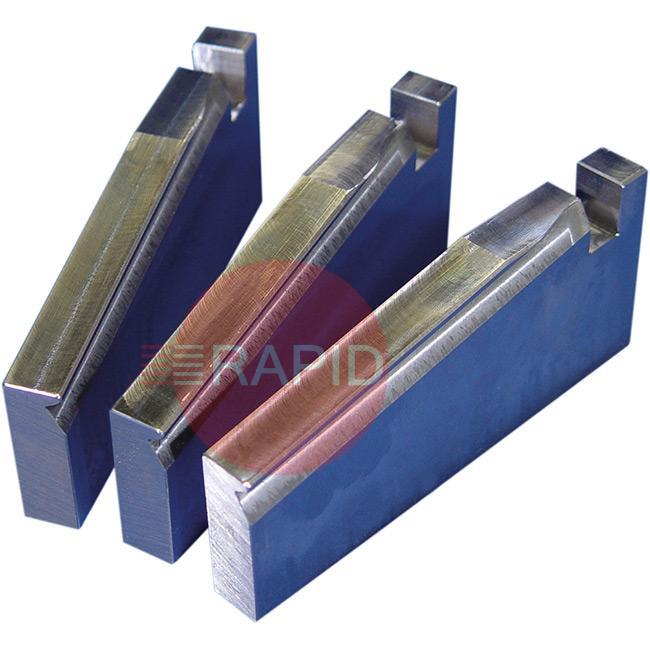

    Orbitalum REB 6 Optional Clamping Wedges to Extend Dimension, Pipe ID 155 - 166mm
    790093295

    £610.00  EX VAT
     Buy in 3 easy interest free payments of £203.33† with

    Orbitalum REB 6 optional clamping wedges to extend dimension of a standard REB 6 machine, Pipe ID 155 - 166mm.

    Orbitalum Accessories for BRB / REB machines FAQs

    Answers on the clamping, lubrication and air-supply accessories used with portable pipe end preparation machines.

    How does inside-diameter clamping hold the pipe or tube?icon-minus-redicon-plus-red

    Portable pipe end preparation machines of this type are clamped from the inside. A clamping head fitted with a set of clamping wedges locates in the open end of the pipe and expands against the bore, so the machine is centred on the inside of the pipe. Makers describe the pipe dimension as quick to set for each wedge set.

    Because the clamp works off the bore, the inside diameter matters more than the outside diameter when you choose the wedge set. Check that the range on the data plate or in the manual covers the pipe, and keep loose scale, swarf and burrs out of the bore so the wedges seat properly.

    What are the health risks of cutting fluids and how do I reduce them?icon-minus-redicon-plus-red

    The HSE says skin contact with metalworking fluids can cause dermatitis, mainly on the hands and arms, and that breathing in the mist can cause lung problems such as occupational asthma. Its key messages are to prevent or limit skin contact, to prevent or control airborne mist, and to keep the fluid in good condition.

    In practice that means using only the amount you need, avoiding soaked clothing, washing fluid off the skin, and reading the product's safety data sheet. Your risk assessment should decide what protective equipment and ventilation are needed.

    What are optional clamping wedges for?icon-minus-redicon-plus-red

    Clamping wedges are the parts that actually contact the pipe bore. A standard set covers a stated range of bore sizes, and makers list optional wedge sets specifically for extending that range, each shown against the pipe inside diameter it suits, so the same machine can take larger bores.

    Choose them by the inside diameter of the pipe, which depends on the outside diameter and the wall thickness, not by the nominal pipe size alone. Measure the bore if you are unsure, and check the machine's manual for which wedge set matches which bore range. Do not use a set outside its stated range.

    What should I check on the air hose and quick couplings?icon-minus-redicon-plus-red

    If your machine is air-driven, check the hose before each use for cuts, bulges, abrasion and other damage, and tag and replace any defective hose straight away. Safety guidance recommends a safety cable or whip check to stop the hose moving uncontrollably if a connection fails, and a mechanical lock on connections.

    Never run hose, couplings or the machine above the maker's pressure rating, make sure couplings are fully engaged and clean, and do not run the hose where it can be trodden on. The HSE has guidance on compressed air safety that covers portable pneumatic equipment, including inspection, maintenance and training.
