    Rapid Ref : SSH300  Mfr Ref : SSC3

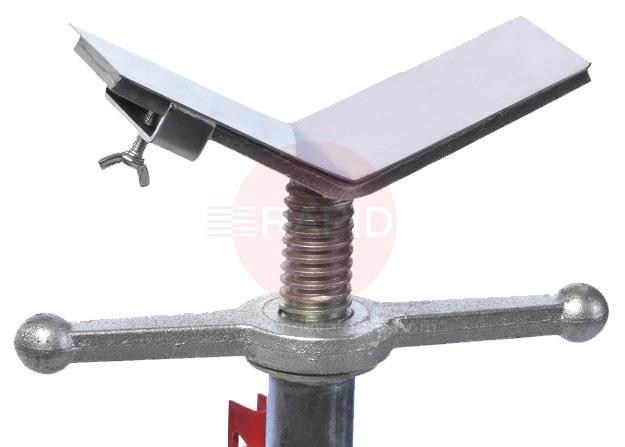

    Pair of Slip-On Stainless Steel Covers for Standard V Head
    SSC3 SSH300

    £33.00  EX VAT
     Buy in 3 easy interest free payments of £11.00† with
    • Weight: 1Kg
    • Load Capacity: 1,000Kg
    • Pipe Size: 1 - 12"

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Related Items

    Large Vee Head Jacks FAQs

    Heads, wheel kits, ball transfers and hold-downs that adapt a heavy-duty pipe jack stand to the job in hand.

    How do I know whether a head or wheel kit is within my stand's load rating?icon-minus-redicon-plus-red

    Never exceed the maker's rated load for the stand. Fitting a different head, wheel kit or castors can change what the stand can safely carry, so check the rating for every part and the stand's data plate or manual before use. In practice you work to the lowest figure marked on any part of the assembly.

    The rating normally assumes a load that is centred on the head and a stand on a level, solid base. Use the same head style on every stand supporting one pipe, and add another stand rather than pushing one to its limit. If you cannot find a figure for a part, ask the maker instead of guessing.

    Why should I use stainless or non-metallic wheels and covers for stainless pipe?icon-minus-redicon-plus-red

    Contact with carbon steel can leave iron particles on stainless steel. Those particles can later show as rust spots and weaken the corrosion resistance you chose stainless for. Stainless fabrication guidance says tools and handling equipment for stainless should be kept separate from carbon steel use, and that tooling and work surfaces should be cleaned before stainless goes on them.

    Wheels and covers made of stainless steel or a suitable non-metallic material keep the pipe from touching bare carbon steel on the head. Dedicate them to stainless work, keep them clean, and do not reuse wheels that have been used on carbon steel.

    Can welding current damage wheels and ball transfers?icon-minus-redicon-plus-red

    It can. Welding current that finds an unintended path back to the machine can pass through bearings, wheels and ball transfers, which can pit or damage them. HSE says stray currents can be comparable to the welding current, and are more likely when the return clamp is on rusty or dirty metal.

    So clamp the return lead directly to the workpiece, on clean bare metal and as close to the weld as possible, rather than relying on the stand, rails or other pipework to carry current. Keep the connection tight and clean, and inspect wheels and balls for pitting or roughness. Follow your welding equipment instructions and risk assessment.

    What are ball transfer heads for, and when should I avoid them?icon-minus-redicon-plus-red

    A ball transfer unit is a housing holding a load ball on smaller bearing balls, so the load ball turns in any direction. On a pipe stand that lets a pipe slide or turn freely, which is handy for moving a length through or lining up a joint before it is fixed.

    Because the pipe moves so easily they are a poor choice for tacking or any time it must stay steady, so move it into a V head or use a hold-down once it is placed. Felt rings help keep dirt out of the housing, so keep the units clean. Check the maker's data for the rated load and any limit on how the unit may be mounted.
