    Rapid Ref : PI08E02

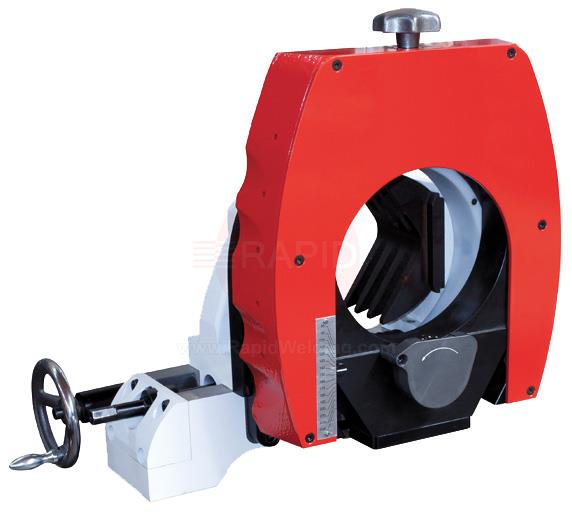

    Pipe 8 Orbital Saw Handwheel Rotation Pipe Cutter Machine, 80 - 230mm Range OD
    PI08E02

    £10310.22  EX VAT
     Buy in 3 easy interest free payments of £3436.74† with
    Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

    The PIPE 8 orbital pipe cutters have been designed and constructed for improved performances, such as increased stability and better cut precision obtained by a new cam and slide system which grants a perpendicular cut completely burr free. The PIPE 8 pipe cutters feature a revolutionary self-centring locking device and the automatic detection of the outer diameter of pipes.

    Product Details

    Technical specifications

    • Locking range: 3 ÷ 8”
    • Pipe thickness: 2 ÷ 10mm
    • Idle speed: 200 ÷ 300 rpm
    • Machine rotation speed: 0 ÷ 1.5 rpm
    • Power: 2200 Hp (W)
    • Voltage: 110/220v
    • Frequency: 50/60 Hz
    • Maximum acoustic emission: 75 dB
    • Weight: 145Kg

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    GBC Pipe Saws & Flame Cutting Machines FAQs

    Answers to common questions about choosing and using portable pipe saws and flame pipe cutting machines.

    Should I choose a pipe saw or a flame cutting machine?icon-minus-redicon-plus-red

    It mostly comes down to the material and the finish you need. Flame (oxy-fuel) cutting is suited to mild and low alloy steels and works by heat, so the cut edge will usually need some cleaning before welding. An orbital pipe saw is a cold-cutting method: a blade travels around the pipe, so there is no flame and no heat input from the cut itself. Saws are also used on stainless steel and some non-ferrous pipe.

    Flame machines tend to suit heavier carbon steel pipe and plate, while saws are often chosen when a square, clean, weld-ready end matters. Check the outside diameter and wall thickness range of any machine against your pipe. Our team can help you choose.

    Can I flame cut stainless steel pipe?icon-minus-redicon-plus-red

    Not with an ordinary oxy-fuel set-up. The process relies on the steel burning in a jet of oxygen and the resulting oxide melting away. Stainless steel, cast iron and non-ferrous metals form oxides that do not clear in the same way, so standard flame cutting is not suitable for them unless special powder-assisted equipment is used.

    For stainless pipe, a cold-cutting saw or another method recommended by the equipment maker is the usual choice. Always check what materials a machine is designed for in its manual before you buy or use it.

    How does an orbital pipe saw work, and why is it used for weld preparation?icon-minus-redicon-plus-red

    The pipe is clamped in a rigid vice and a circular blade is driven in a planetary path around it, feeding in as it goes. A small blade can therefore cut a large pipe. Because it is a cold cutting method, there is no heat-affected edge, and the end is normally square.

    Some saws can cut and bevel in one pass, which gives a ready-to-weld end. Capacity is set by the outside diameter and wall thickness the vice and drive can handle, so always check both against the pipe you cut. Use clean jaws and blades when working on stainless steel to avoid contaminating it.

    Which fuel gas should I use for flame cutting, acetylene or propane?icon-minus-redicon-plus-red

    Acetylene gives the hottest, most concentrated flame, so it starts a cut faster and gives a narrower heat-affected zone. It suits short cuts and bevel cutting. Propane pierces more slowly and needs a higher proportion of oxygen, but once the cut is under way the cutting speed is comparable, and it is more forgiving of changes in torch height.

    Your cutting machine, torch and nozzle must be designed for the gas you choose, so follow the maker's instructions and use the correct nozzle for the thickness being cut. The two gases need different regulators, hoses and fittings and must never be interchanged.
