  • PJ1-X  Pipe Jack 1 Uno Pipe Stand with V Head, 175 to 700mm (7 - 27)
  • PJ1-X  Pipe Jack 1 Uno Pipe Stand with V Head, 175 to 700mm (7 - 27)
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : PJ1-X

Pipe Jack 1 Uno Pipe Stand with V Head, 175 to 700mm (7 - 27")
PJ1-X

Select Option
Prices From £113.14 ex VAT

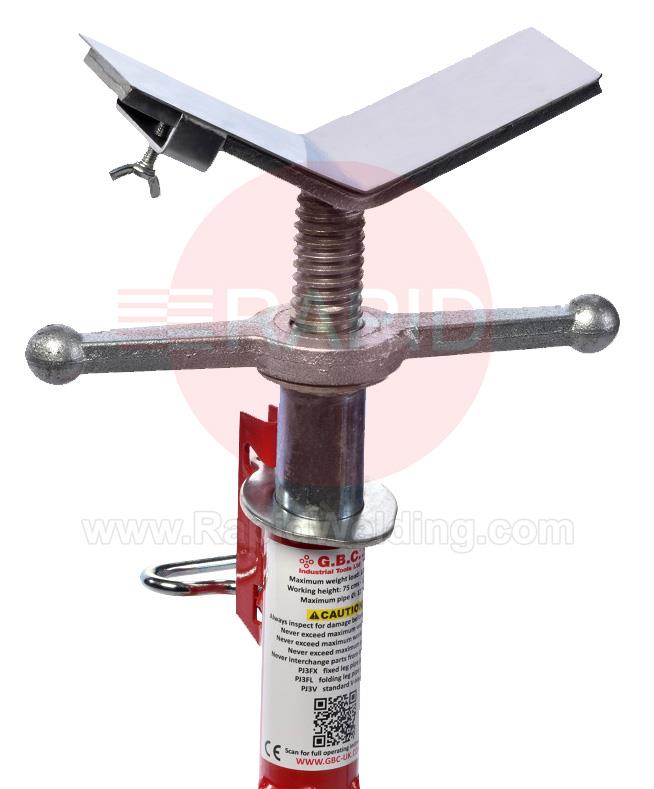

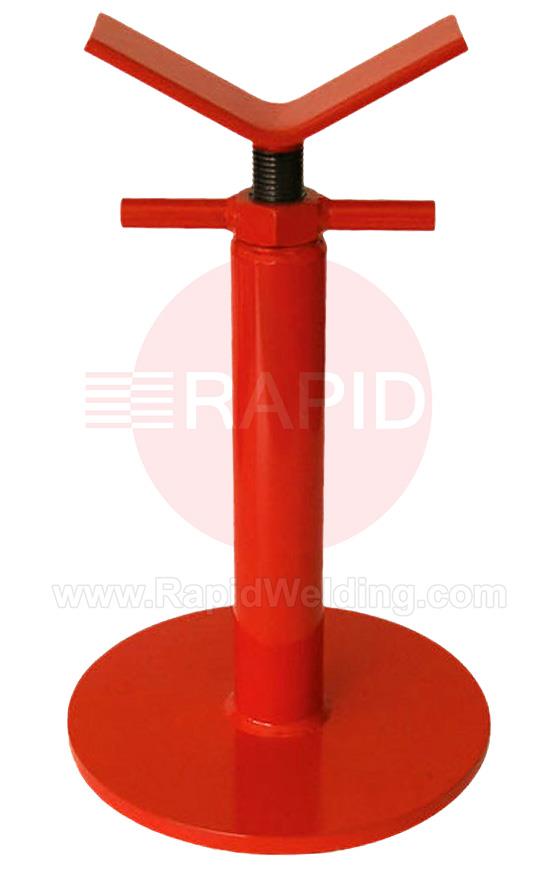

The PJ1 Pipe Stand is the standard single-tubed pipe stand, which is simple to use and easy to set up. A new favourite for low-level work in all fabrication shops.

Available in 4 standard heights from 175 to 700mm (7 - 27"). Optional roller heads from the PJ3 pipe stand series can also be fitted to the vee head of the PJ1 Stand to suit varying applications.

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure

Pipe Stands FAQs

Practical answers on choosing, setting up and looking after adjustable pipe stands and their heads.

Can I adjust the height or move a pipe stand with the pipe on it?icon-minus-redicon-plus-red

No. Makers of pipe jack stands say never to change the height of a stand, or move it, while it is under load. Remove the load first, then adjust or move the stand.

Set the height before the load goes on, keep every stand supporting one pipe at the same height, and lower the pipe on gently rather than dropping it onto the stand. Keep hands and other body parts out from between the pipe and the stand head.

Lock the head assembly before moving a stand, and do not wind a stand beyond the maker's height limit marking, as an over-extended stand is unstable.

Does it matter what the floor is like under a pipe stand?icon-minus-redicon-plus-red

Yes. Makers say to use stands only on solid, level surfaces that will support the weight of the load, not on inclines, and to avoid dirt or gravel. All the feet of each stand should make solid contact with the floor.

If the floor is uneven or soft, move the work to a better spot or use a firm, flat base under the feet rather than packing the legs with makeshift material. Check that the feet are all in solid contact before you load the pipe, and keep the stand out of walkways.

Can I put more than one pipe on a stand?icon-minus-redicon-plus-red

No. Makers say never to place more than one pipe on pipe jack stands. Two pipes or an off-centre load can unbalance the stand and exceed the rated load on the head.

Support each pipe on its own set of stands. Use at least two stands, set to the same height and fitted with the same head style, so the load is shared evenly and will not tip or move. Centre the pipe on the heads and consider its length, diameter and weight when deciding how many stands you need.

If you are unsure, add stands rather than stacking pipes.

What should I do if the pipe on a stand starts to slip or tip?icon-minus-redicon-plus-red

Do not reach out to steady or catch it. Makers say that if a load becomes unstable you should move away from the work area quickly, because a falling pipe can cause serious injury.

Never allow anyone to stand beneath a supported pipe, and keep hands clear of the gap between the pipe and the stand head when positioning it.

After an incident, remove the load, check the stand for bent legs, a bent lock ring or a damaged head before it is used again, and think about whether the pipe needs another stand, a hold-down device or a better base. Review the set-up with your risk assessment.
