    Rapid Ref : EL16-XXX

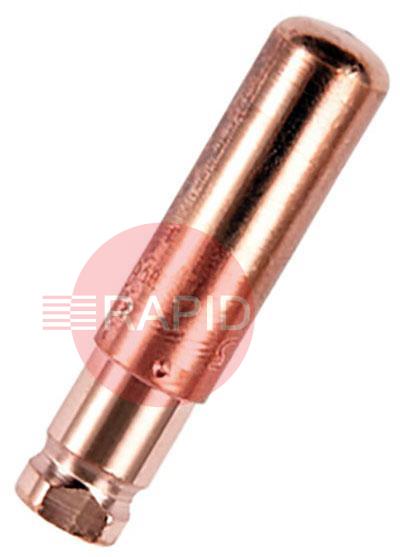

    Tweco Eliminator EL16 Contact Tips
    EL16-XXX

    Select Option
    Prices From £2.31 ex VAT

    Tweco Torch Parts FAQs

    Straight answers on contact tips, nozzles, diffusers and liners: how to match them to your torch, spot wear and fit them properly.

    How do I know when a contact tip is worn out?icon-minus-redicon-plus-red

    The clearest sign is the hole in the tip losing its round shape. Wire friction and heat stretch it into an oval, often called keyholing, and the wire then wanders so the arc wanders with it. Other signs are an erratic arc, wire that snags or feeds unevenly, a burnt or deformed tip end, extra spatter and frequent burn-back.

    There is no fixed number of hours. Wear depends on current, wire type and how clean the wire and joint are, so many welders check the tip every time they change a wire spool. If feeding is poor, the tip is usually the quickest thing to check and swap before you look at the drive rolls and then the liner.

    Why must the contact tip be fitted tightly?icon-minus-redicon-plus-red

    The contact tip passes the welding current to the wire. If it is loose in the diffuser or tip holder, the joint heats up, current transfer becomes poor and the tip can overheat and wear out far faster than it should. A tip that looks cooked or discoloured is often a sign of this.

    Fit it snug and firmly seated, but do not force it. Over-tightening can damage the tip or the holder, so follow your torch maker's instructions on how tight to go. Check the tip is still tight after a long session, always with the torch cool, and look at the seat in the diffuser for damage when you change tips.

    What size contact tip do I need for my wire?icon-minus-redicon-plus-red

    Choose the tip whose bore is marked for your wire diameter, for example the same size as the wire you are feeding. The hole has to let the wire slide through freely yet still make good electrical contact. An oversized bore tends to give patchy contact, more arcing inside the tip and more burn-back, while an undersized one drags on the wire and feeds erratically.

    Soft wires such as aluminium sometimes work better with a tip that is slightly larger than the nominal wire size, because they expand with heat. Check the wire maker's and torch maker's advice. If feeding is poor, also check the drive roll tension and the wire quality before simply moving up a size.

    Why am I getting porosity, and could the nozzle or gas flow be the cause?icon-minus-redicon-plus-red

    Yes, both can be. Spatter building up inside the nozzle narrows the gas path and disturbs the shielding gas, which can leave pinholes in the weld. Too much gas flow is also a known cause, because it creates turbulence at the end of the nozzle that can draw air into the gas stream. Too little flow leaves poor coverage.

    Clean or replace a clogged nozzle, check hoses and joints for leaks and kinks, shield the weld from draughts, and keep the flow within the range your torch maker and the nozzle size suggest. A tapered nozzle can help where draughts cannot be avoided. Try changes on scrap first.
