Rapid Ref : 1014020012

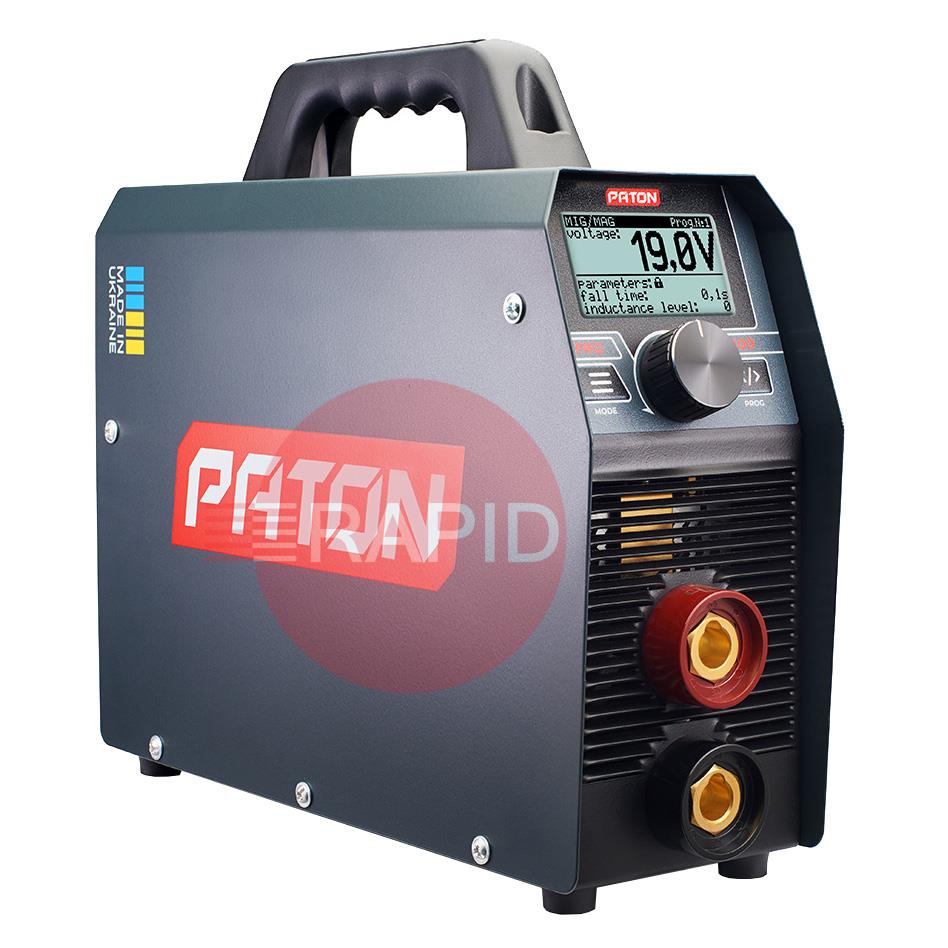

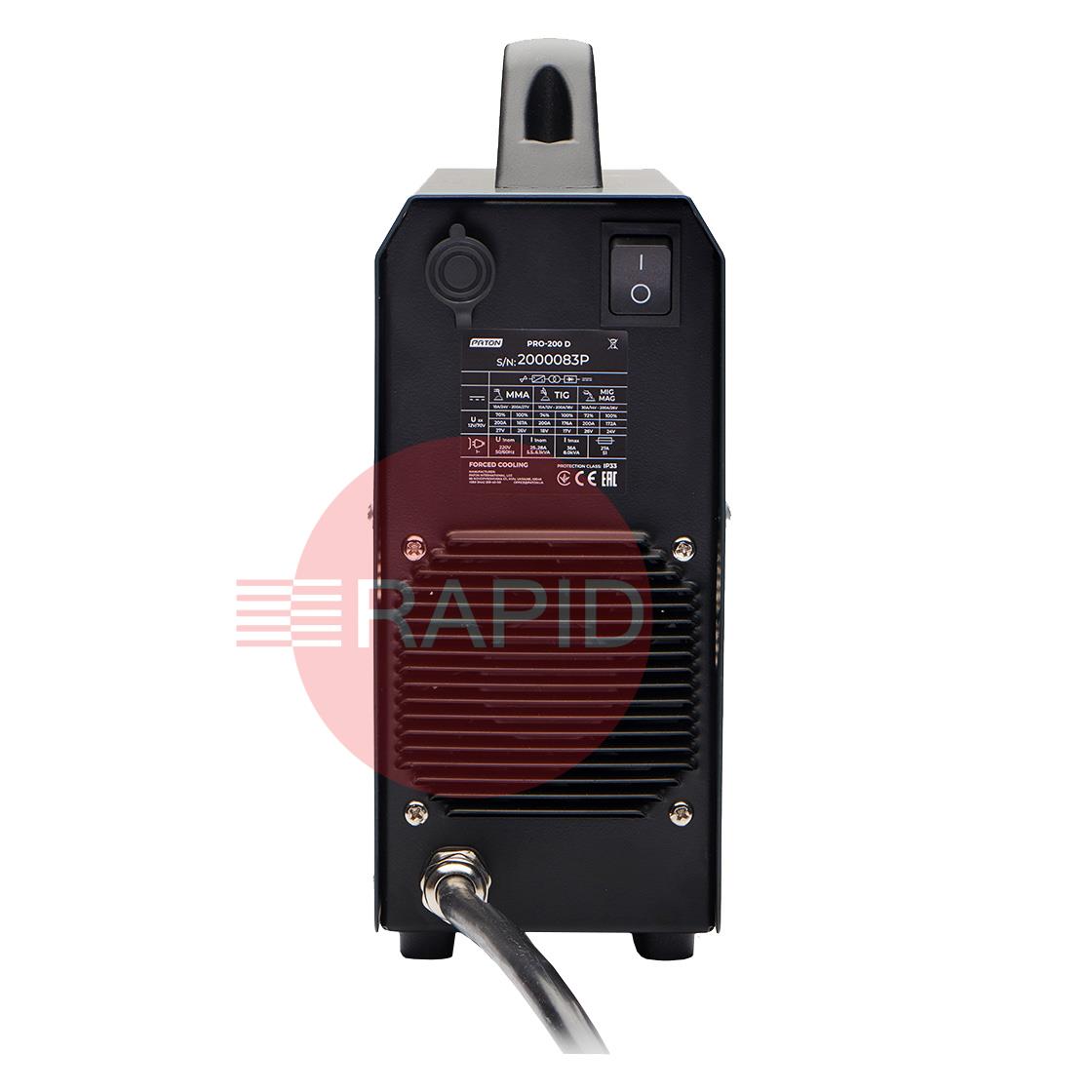

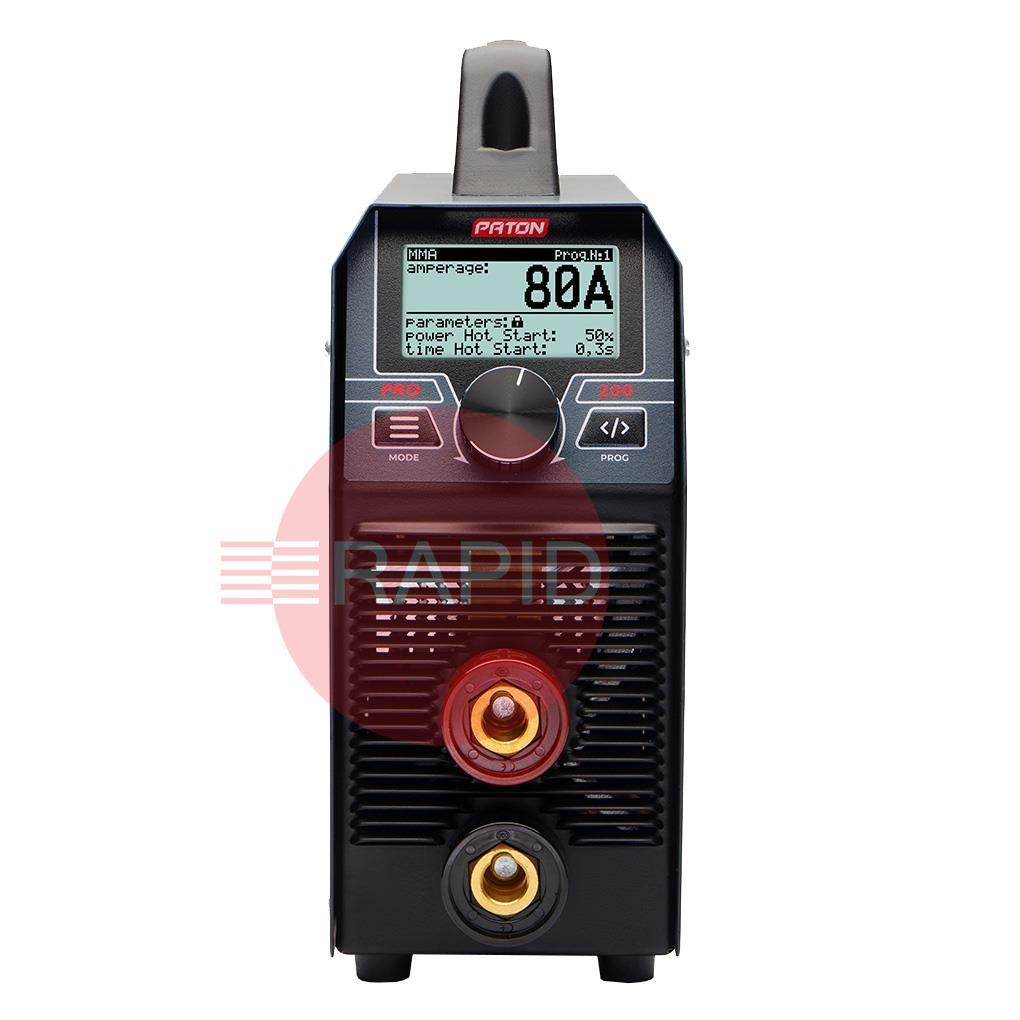

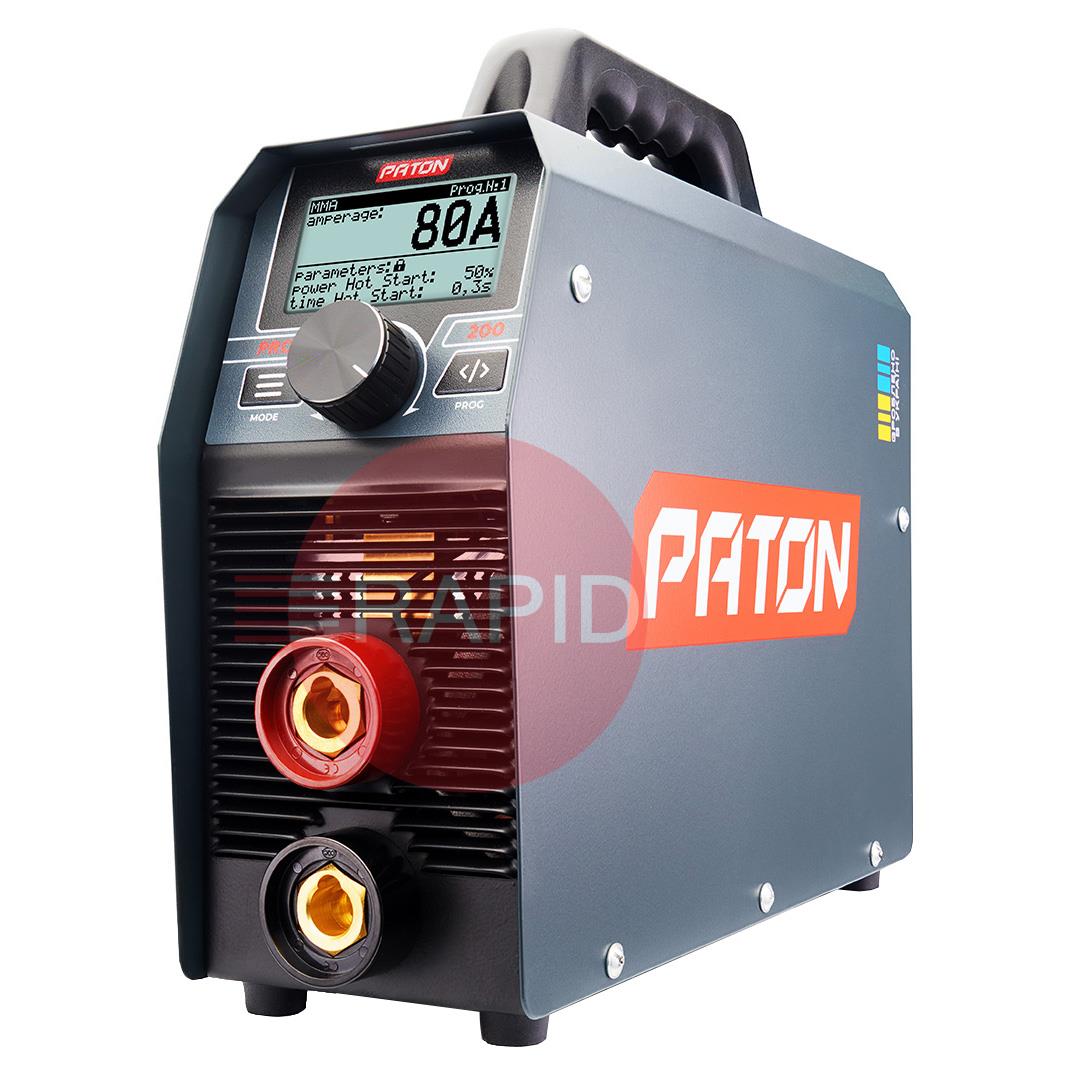

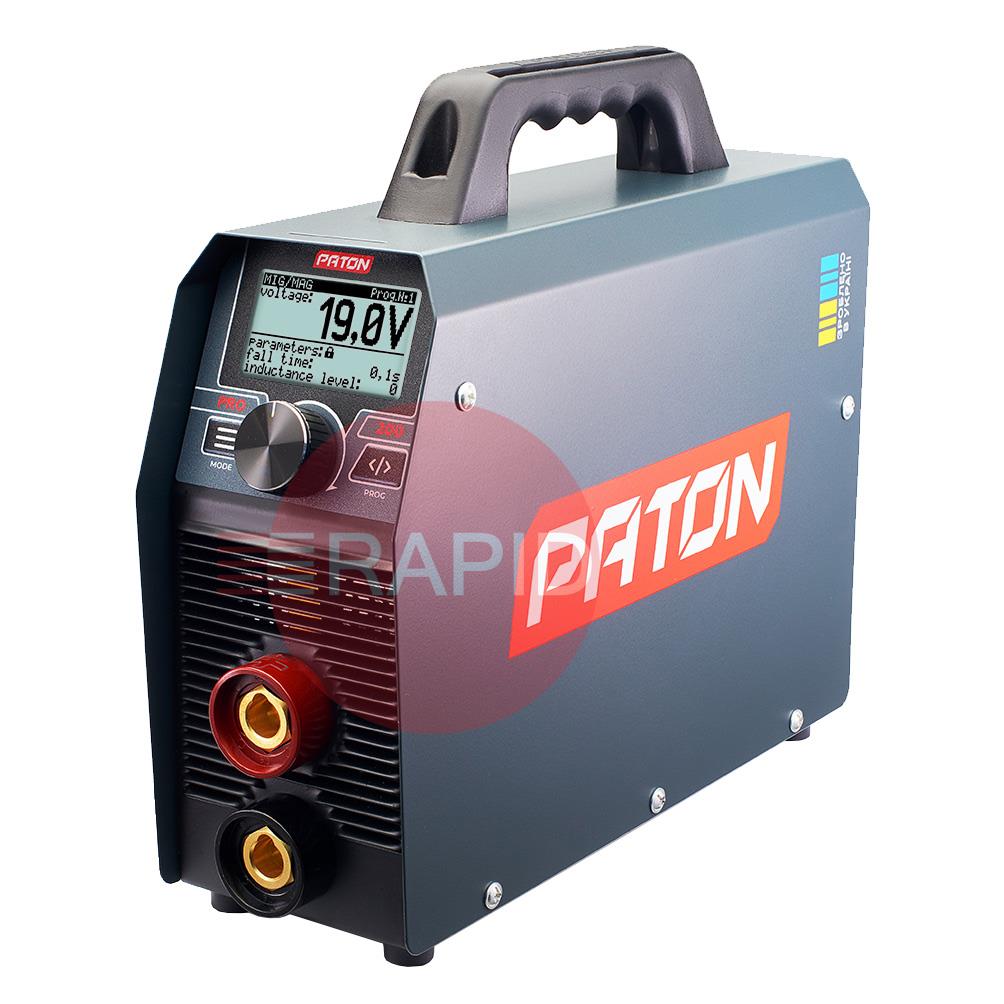

PATON PRO-200 Digital Inverter 200A Arc Welder Suitcase Package - 230v, 1ph
1014020012

Click here to see what's included
£278.30  EX VAT
 Buy in 3 easy interest free payments of £92.77 with

The PATON PRO-200 is a compact 200A arc welder, ideal for professional and industrial welding works. This inverter welder is also capable of TIG Lift and MIG/MAG welding after the purchase of a wire feeder. The device's small size makes it very mobile. The PATON PRO-200 welder has a work stabilisation system installed, allowing it to be powered by a generator. The 200A output allows the use of electrodes from 1.6mm to 5.0mm in diameter and semi-automatic welding with solid wire from 0.6mm to 1.0mm (MIG/MAG welding is possible after purchasing a wire feeder). The PRO-200 features a 70% duty cycle and a 5-year warranty.

  • Powerful Output in a Compact Package: Weld with confidence — the PRO-200 delivers up to 200A of steady, reliable power for MMA (Stick) welding. For electrode diameters 1.6mm up to 5.0mm
  • Multi-Process: MMA, TIG Lift, MIG-MAG (after purchase of wire feeder)
  • Lightweight & Portable: Weighs just 5.6 kg – ideal for site work, and hard-to-reach spots
  • Ukrainian Engineering: Built by Paton™ in Europe, one of Europe’s most trusted welding brands with over 60 years of innovation
  • Generator Ready: Possibility to work on long extension cables as well as with a generator
  • Hot-Start, Arc-Force, Anti-Force, Pulse x3 functions
  • 5-Year Warranty

Product Details

Universal inverter welder PATON PRO-200 is designed for manual arc welding with the MMA method, argon-arc welding with the TIG method with direct current and semi-automatic welding with the MIG/MAG method in a shield of gases and protective mixtures. The PATON™ PRO-200 welder has a work stabilisation system installed, allowing it to be powered from a generator. The 200A output allows the use of electrodes from 1.6mm to 5.0mm in diameter and semi-automatic welding with solid wire from 0.6mm to 1.0mm (MIG/MAG welding is possible after purchasing a wire feeder). The PRO-200 features a 70% duty cycle and a 5-year warranty.

Specification

Mains Voltage: 230V
Welding Current Range: 10 - 200A
Duty Cycle: 200A at 70%, 167A at 100%
Maximum Power Consumption: 7.4kVA
Open Circuit Voltage: 12 / 75V
Dimensions (L x W x H): 330mm x 115mm x 262mm
Weight: 5.6kg
Protection Class: IP33

Perfect For

  • Professional and industrial welding works
  • Productions and installation of various metal structures
  • Pipelines welding
  • Welding in construction

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   PATON PRO User Manual

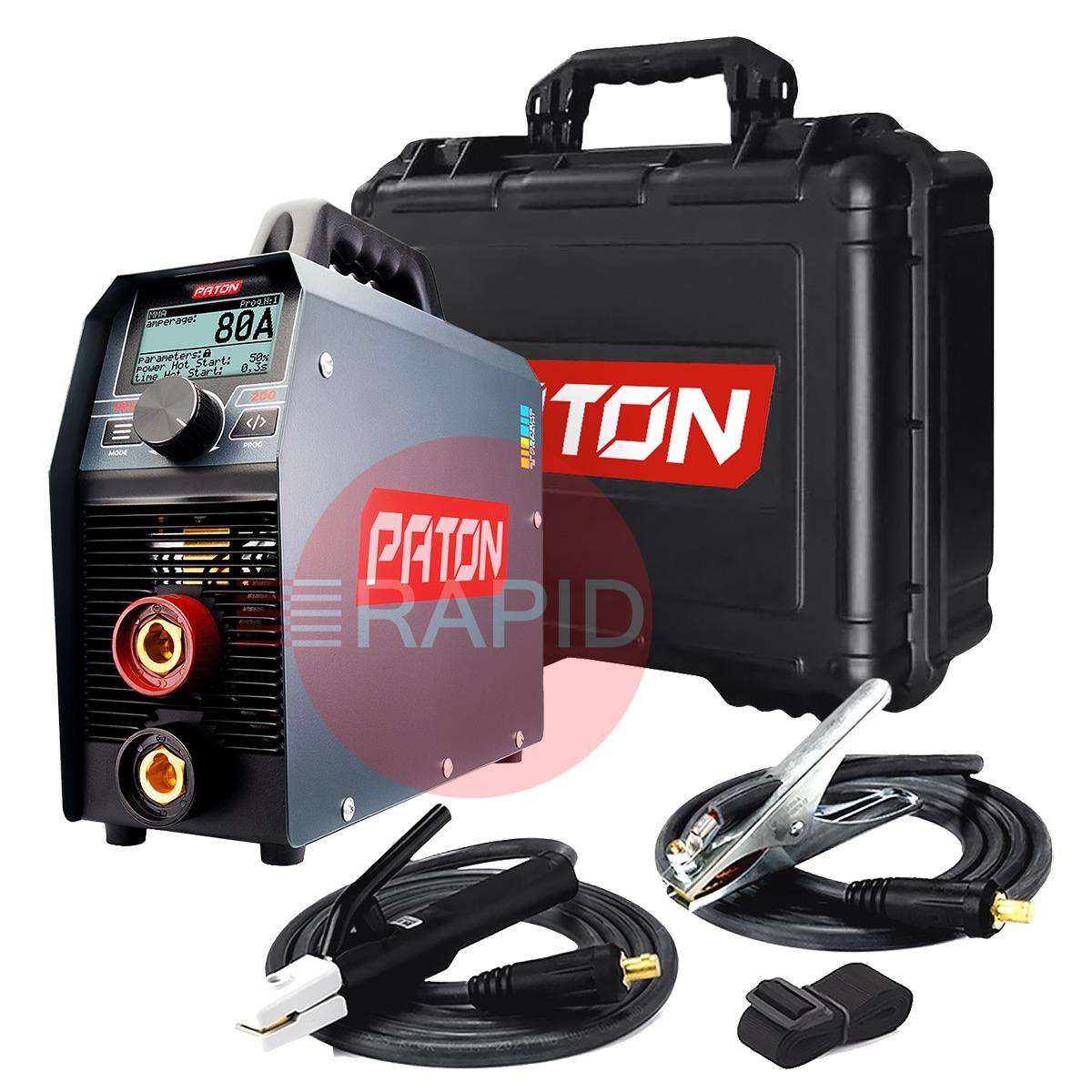

What's Included

PATON-CASE  PATON Carry Case

PATON Carry Case

PATON-SSTRAP  PATON Shoulder Strap

PATON Shoulder Strap

PTN-MMA16CBL  PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²

PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²

WARRANTYP5  PATON 5 Year Warranty

PATON 5 Year Warranty

Warranty and Support

  • 5-Year Warranty
  • UK based service centre and support hotline
  • Access to spare parts and calibration service

Whether you're welding in the field, or on the job site, the PATON PRO-200 Arc Welder gives you the power, precision, and portability you need, without the bulk.
