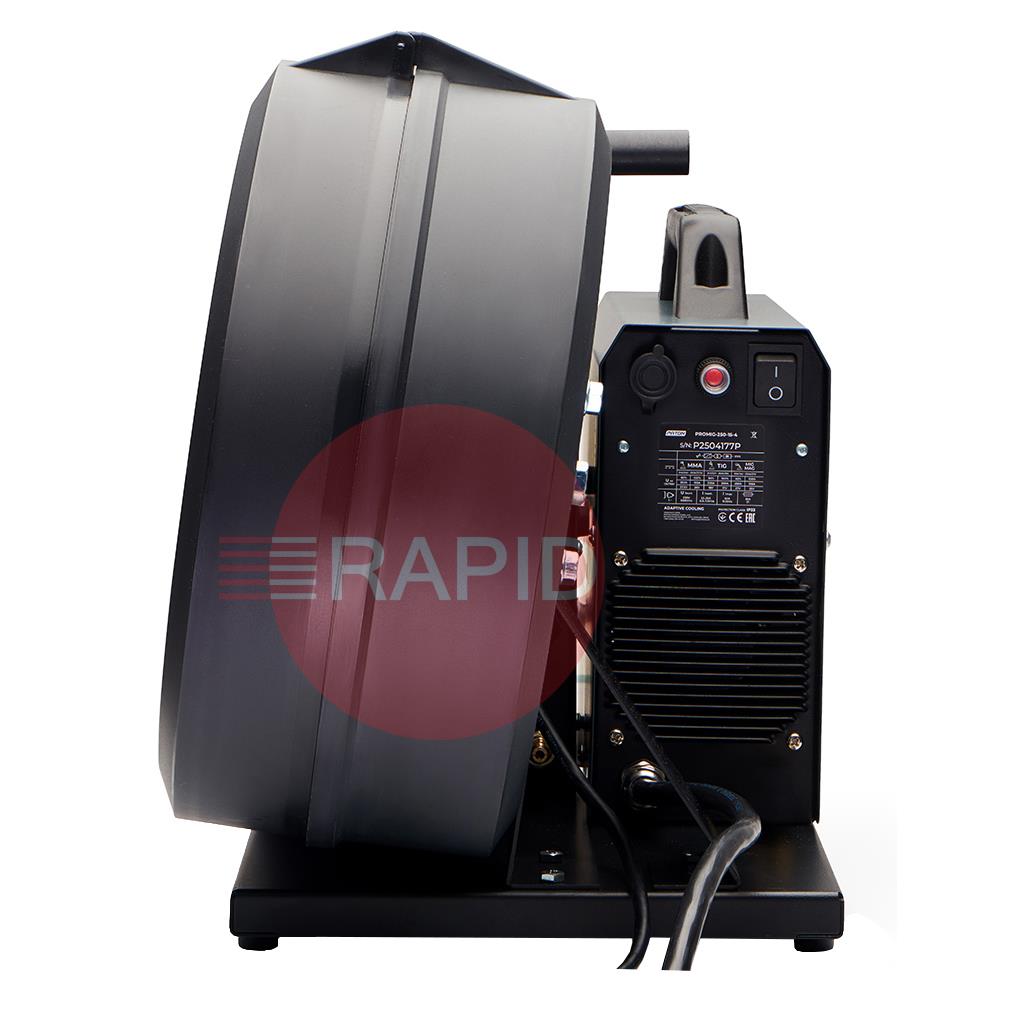

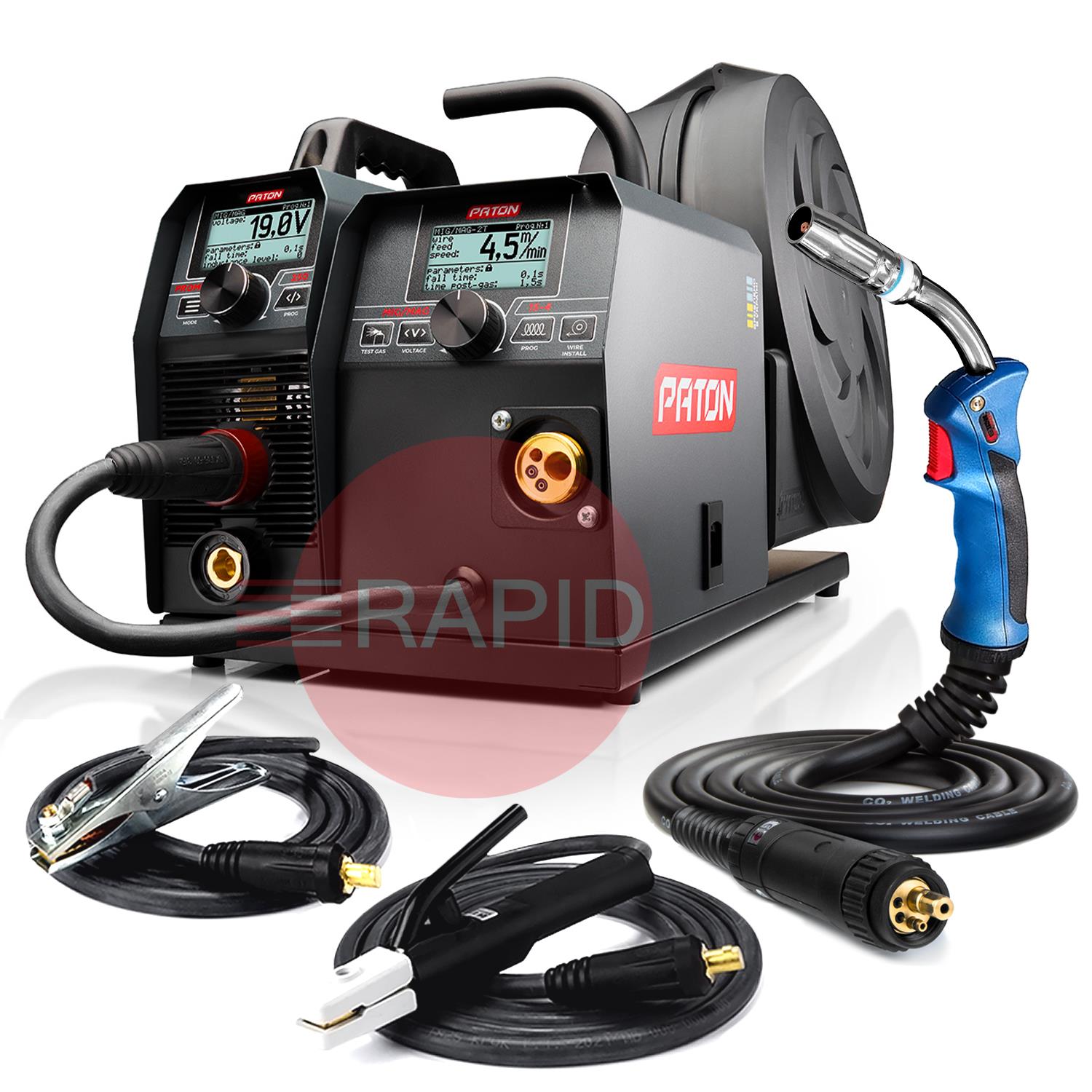

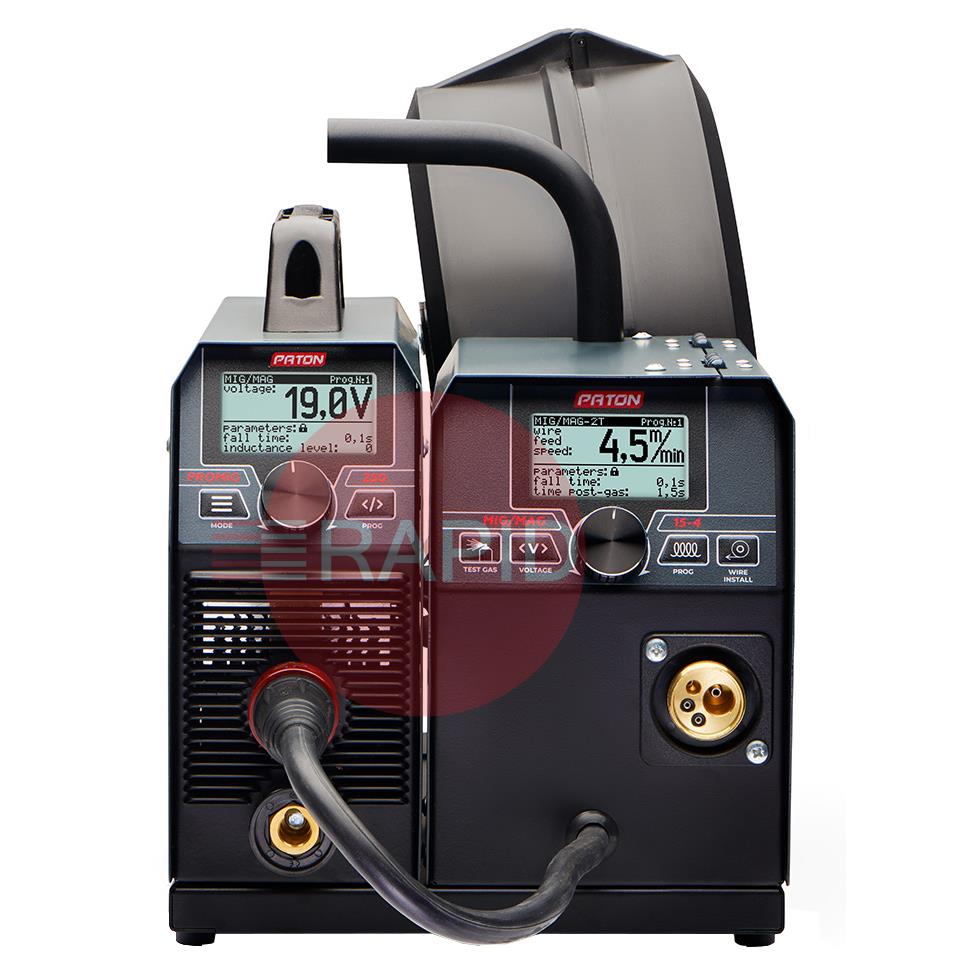

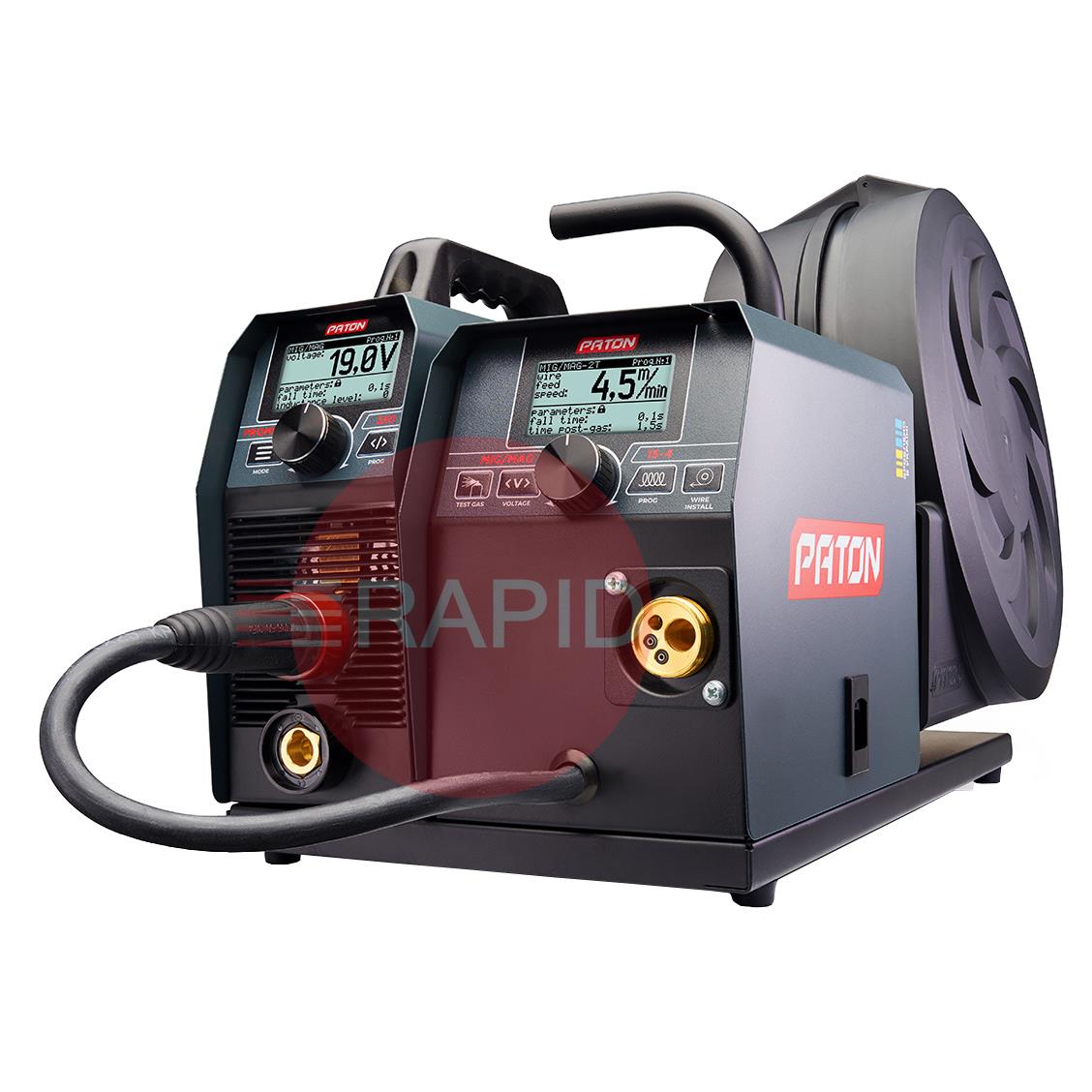

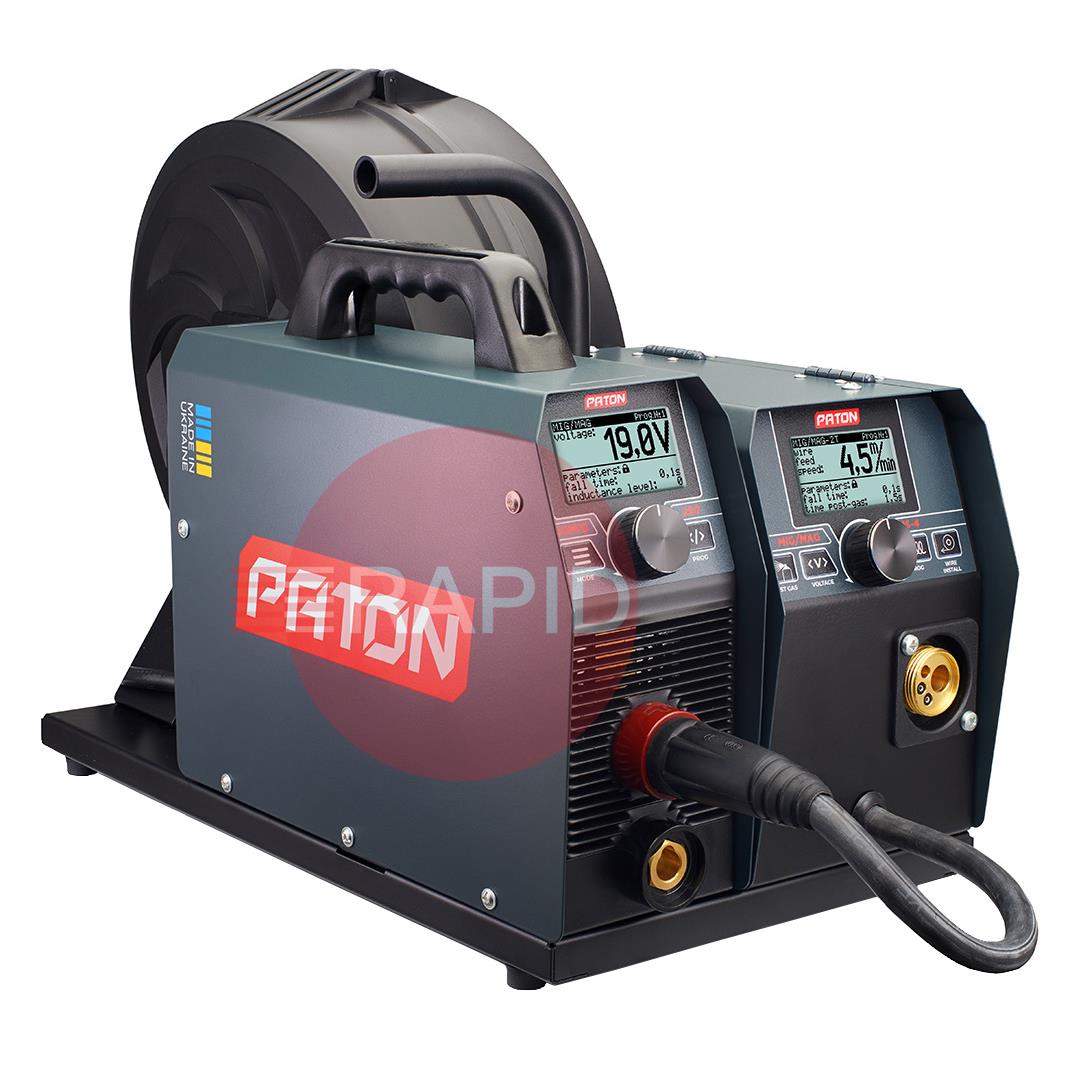

The PATON ProMIG 250 is designed for direct current welding of a wide range of materials in MIG/MAG, MMA

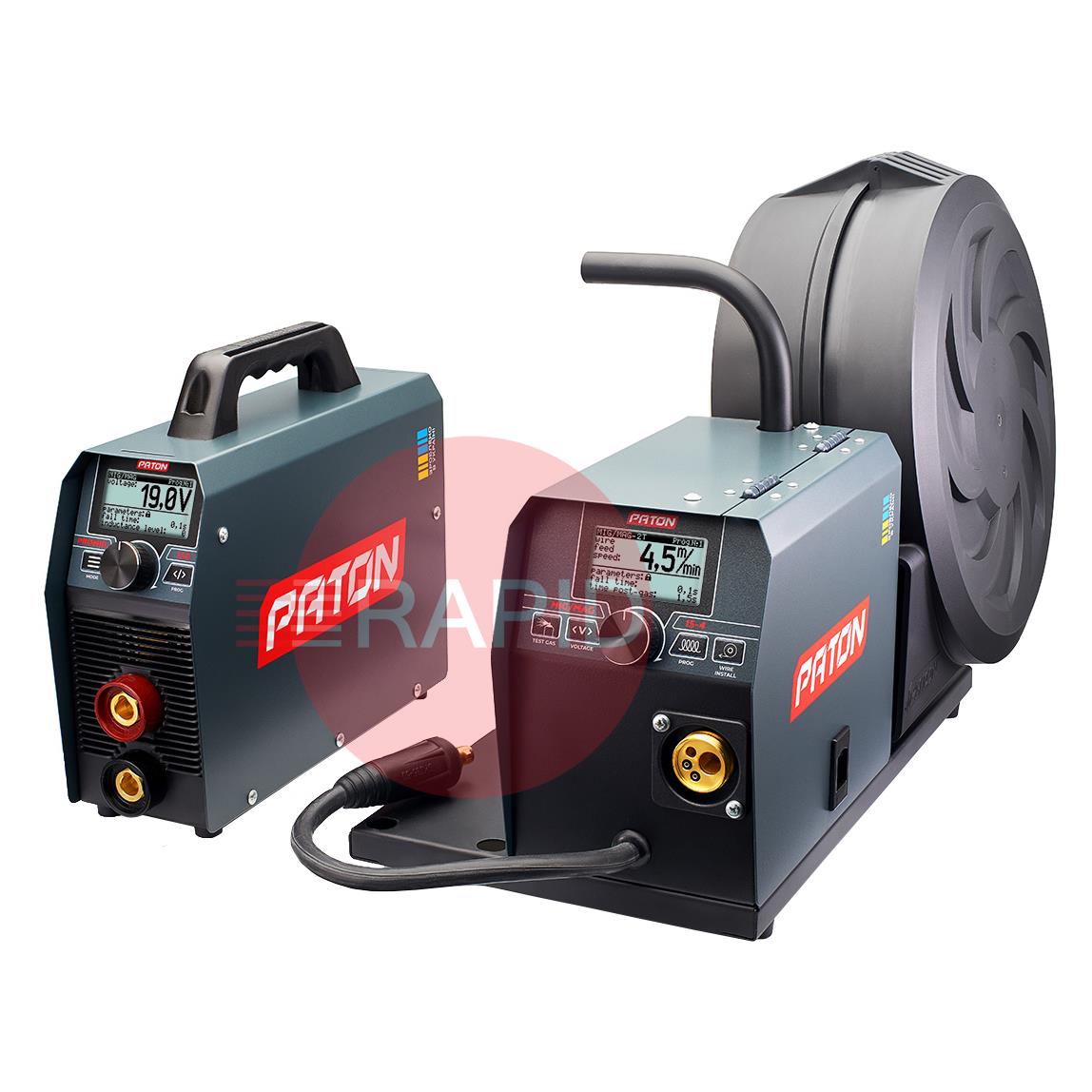

and Lift TIG modes. The PATON ProMIG welding machines are designed for professional use. The welding current source can be used separately from the wire feeding unit in order to provide ease of operation in MMA and TIG
modes and provide compliance with safety requirements in some welding cases. These machines
are operated from a 230V single-phase power supply and have an IP33 protection rating.
Specification
| Mains Voltage: |
230V |
| Welding Current Range: |
12 - 250A |
| Duty Cycle: |
250A at 60%, 193A at 100% |
| Maximum Power Consumption: |
9.5kVA
|
| Dimensions (L x W x H): |
360mm x 260mm x 270mm
|
| Weight: |
14kg
|
| Protection Class: |
IP33
|
Perfect For
- Professional Workshops
- Agricultural Work
- Vehicle Repair
