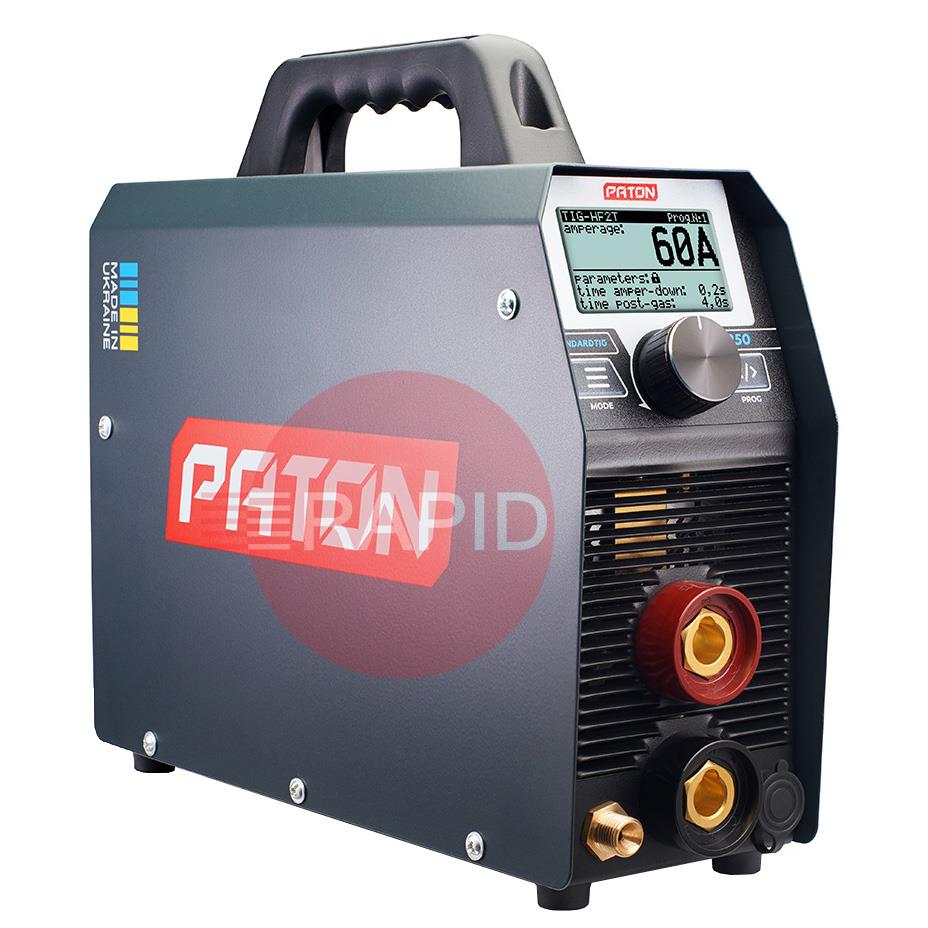

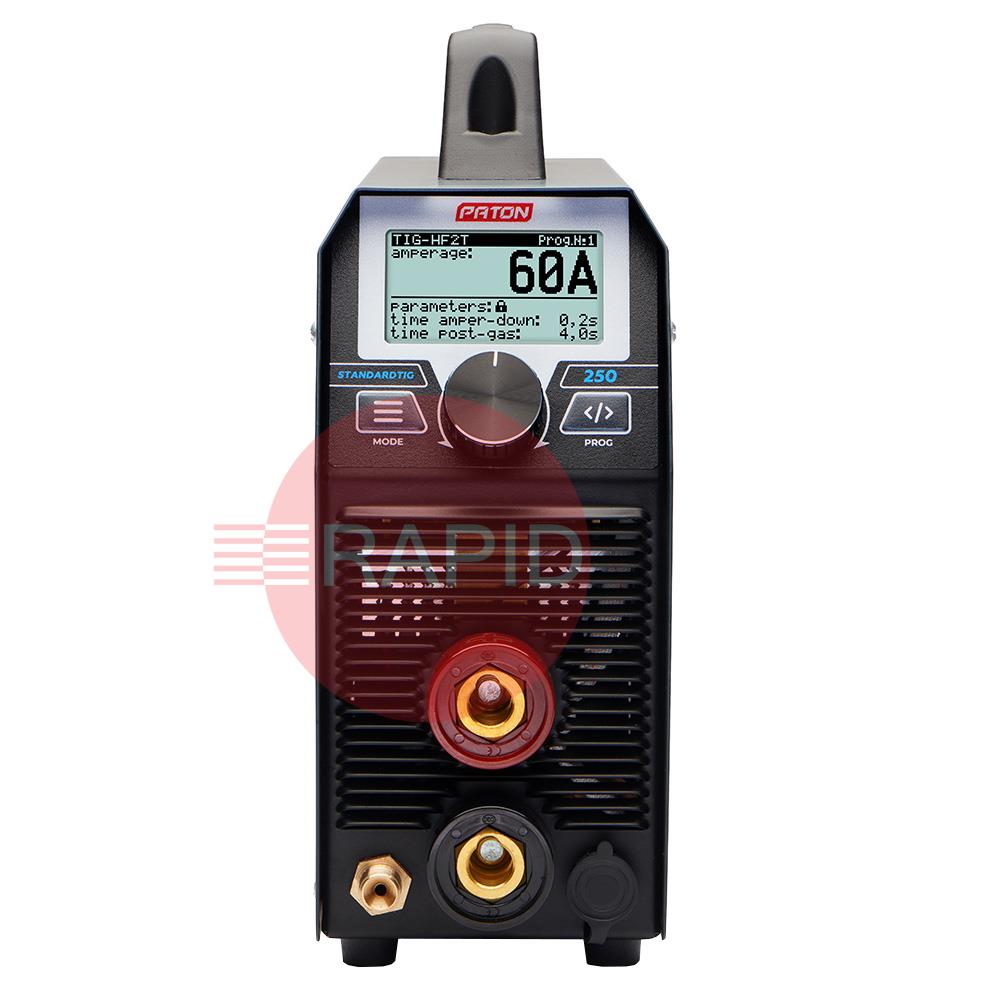

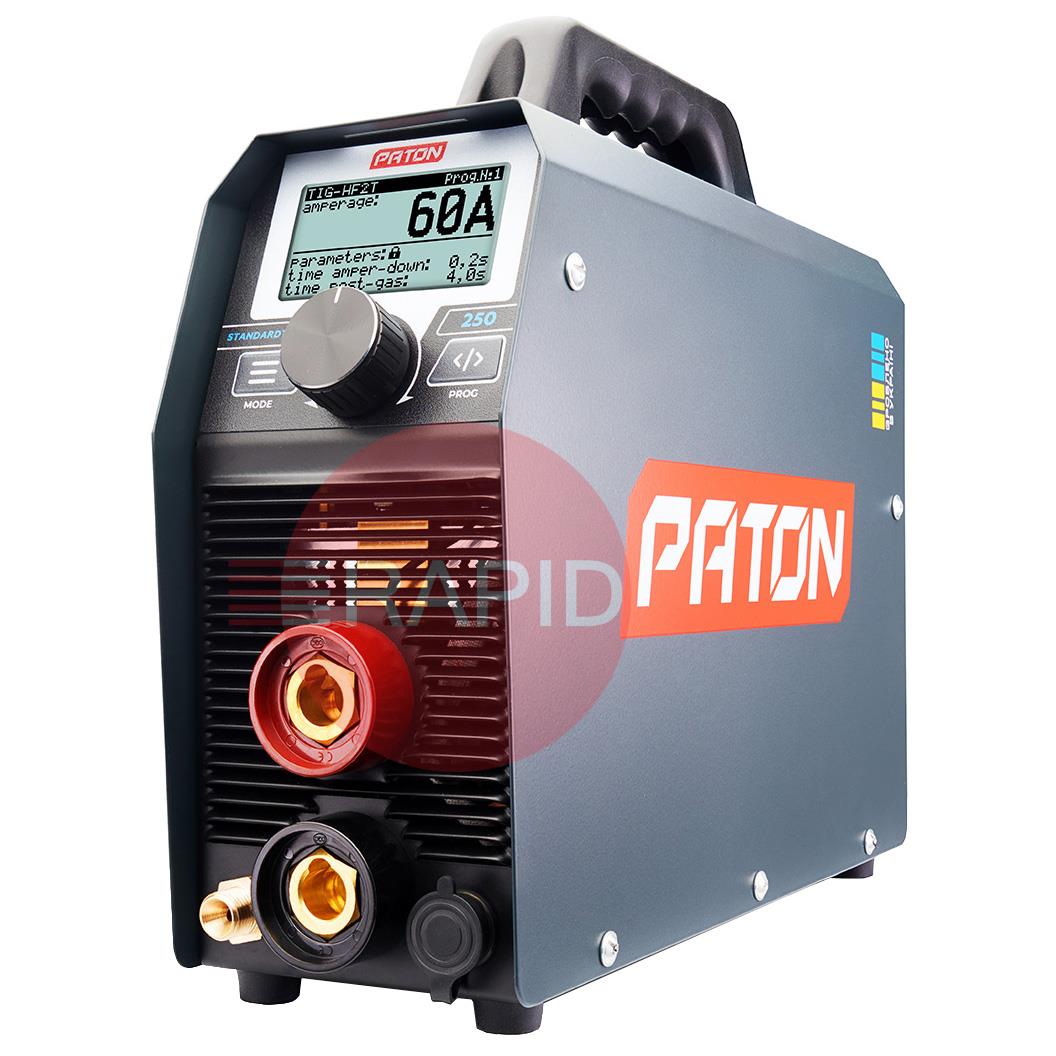

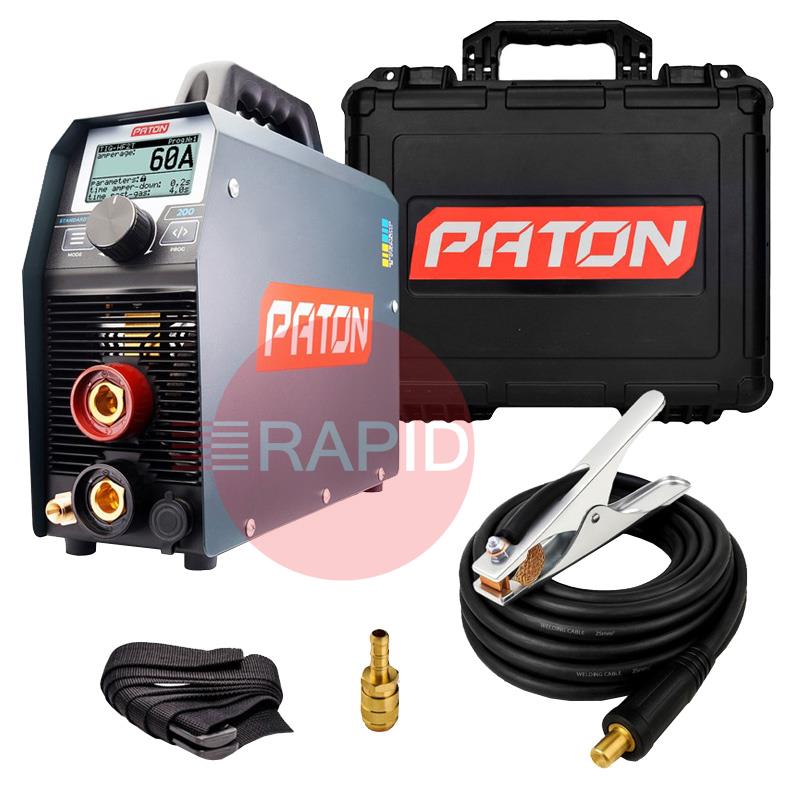

PATON StandardTIG 250 digital inverter welder is optimised for TIG (HF) inert gas shielded arc welding, manual submerged electrode arc welding (MMA) and semi-automatic MIG/MAG arc welding (as a source with external feeder) with direct current. Each of the methods mentioned above allows us to use pulsed current (PULSE function). The StandardTIG 200 features a 45% duty cycle and a 3-year warranty.
An additional advantage is the CLEAN mode, which offers cleaning of stainless-steel parts and their weld seams from oxides and heat tint, as well as surface polishing to restore its aesthetic appearance and corrosion resistance properties. To operate in CLEAN mode, it is necessary to additionally purchase a special electrolytic liquid for the passivation of high-alloy steels and a PATON TIG brush. Without these accessories, cleaning and polishing of stainless steel using this function is not possible.
Specification
| Mains Voltage: |
230V |
| Welding Current Range: |
12 - 250A |
| Duty Cycle: |
250A at 45%, 167A at 100%
|
| Maximum Power Consumption: |
9.4kVA
|
| Dimensions (L x W x H): |
345mm x 112mm x 290mm
|
| Weight: |
6kg
|
| Protection Class: |
IP33 |
Perfect For
- Field Work
- Workshops
- Agriculture
