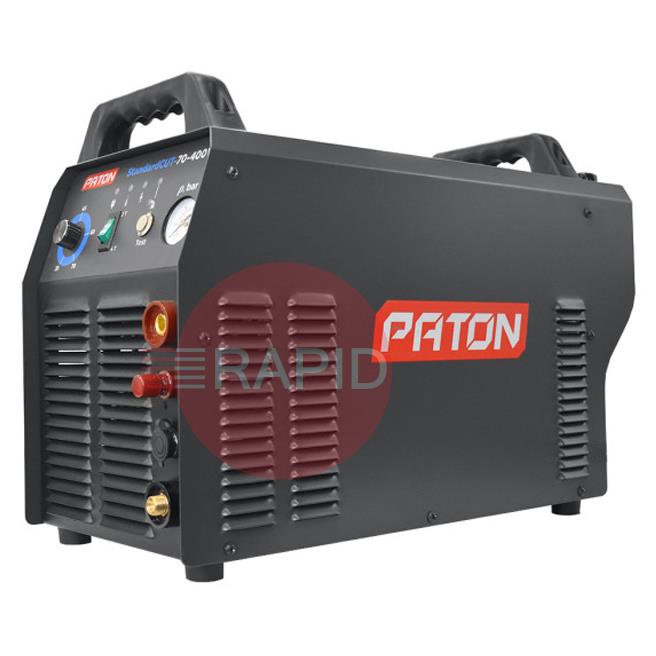

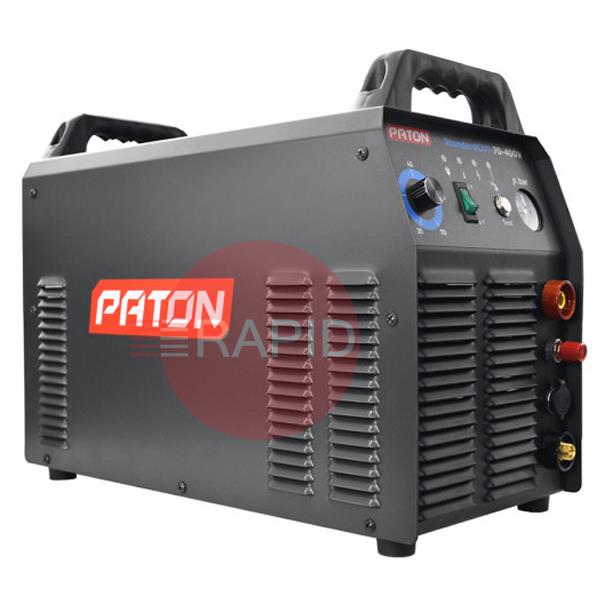

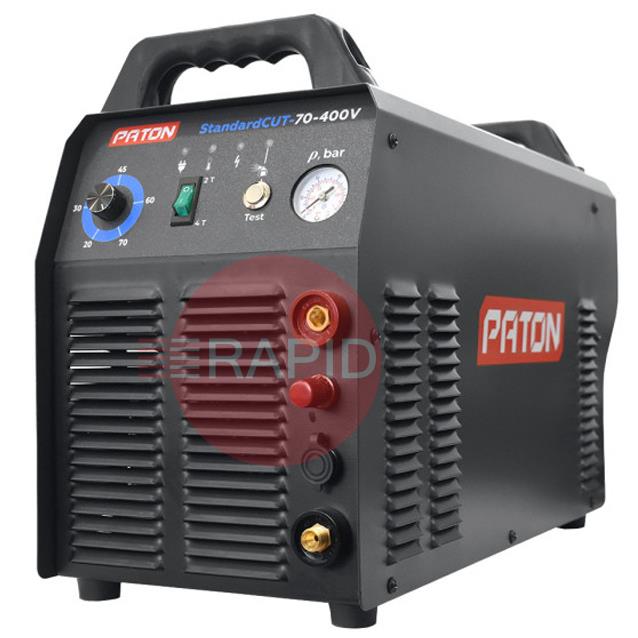

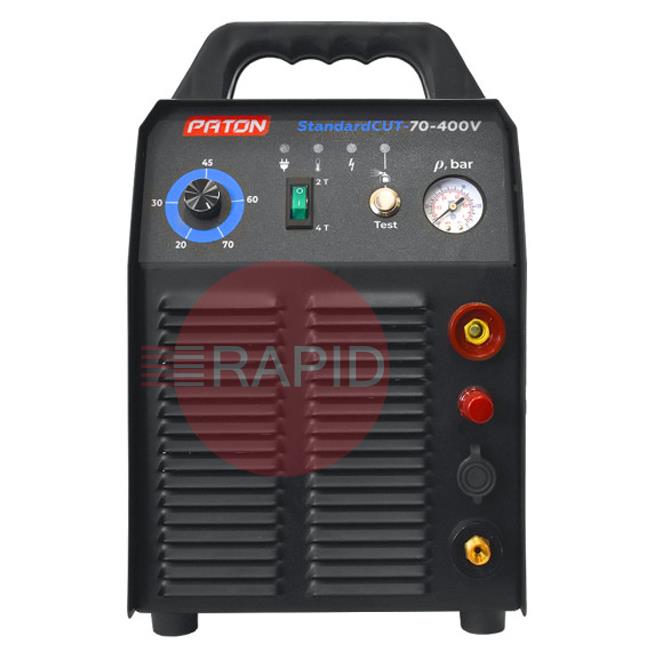

The PATON StandardCUT-70-400V inverter plasma cutter is designed for manual
cutting of metals and alloys up to 25 mm thick with a plasma arc in a stream of
compressed air. The plasma cutter is lightweight and easy to set up, thanks to its
infinitely variable current control, which allows for precise cutting without metal

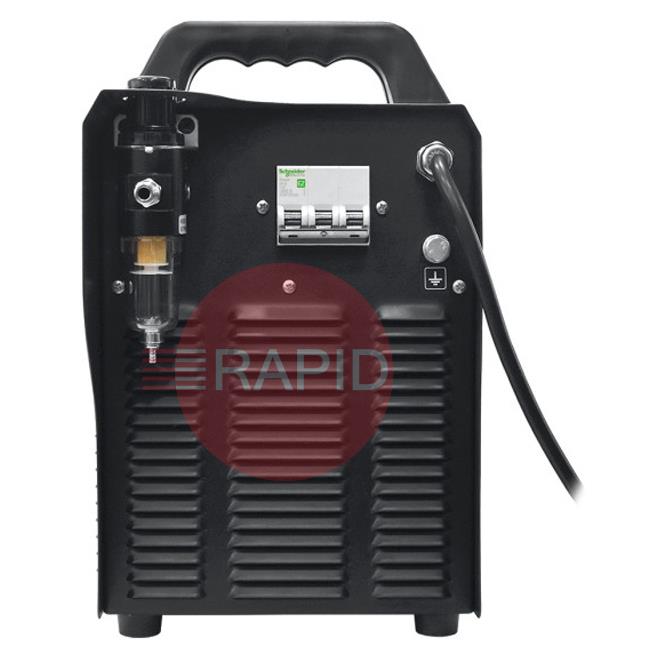

deformation, both in sheet metal and in curved cutting. It is equipped with a pneumatic
system with two valves for soft arc ignition with reduced metal spatter, which
significantly increases the life of plasma torch consumables. The torch protection
system avoids ignition at insufficient air pressure.
Specification
| Mains Voltage: |
400V 3ph |
| Cutting Current Range: |
20 - 70A |
| Duty Cycle: |
70A at 50%, 40A at 100%
|
| Nominal Power Consumption: |
12.6kVA
|
| Dimensions (L x W x H): |
560mm x 233mm x 360mm
|
| Weight: |
20.3kg
|
| Protection Class: |
IP23
|
Perfect For
- Garages
- Private Workshops
- Professional Workshops
