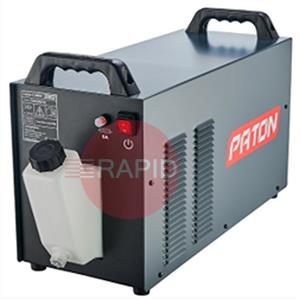

The PATON Cooler-7 welding machine cooler is a multi-purpose cooling device designed to provide highly efficient cooling of welding fixture accessories and plasma torches. The cooler can be used for both welding apparatus and plasma cutters.
The PATON WCU-7 welding machine cooler provides reliable cooling of the handle operating at high currents (above 300A for semi-automatic welding machines and above 140A for TIG welding) and is an indispensable part of welding equipment operating in continuous conditions. The cooler holds up to 7 litres of coolant and ensures that the coolant is circulated in a closed system with a high capacity (delivering fluid to a height of 10 metres) and capacity (up to 6.5 l/min).
Specification
| Mains Voltage: |
400v |
| Power, W |
160 |
| Cooling power, kW, at 1L/min: |
1 |
| Load duration, % |
100 |
| Rated current consumption, L |
0,35 |
| Coolant tank volume, L |
7 |
| Maximum feed L/min |
6,5 |
| Dimensions (L x W x H): |
700mm x 234mm x 367mm
|
| Weight: |
17kg
|
| Protection Class: |
IP21 |
