Rapid Ref : 115200

HMT VersaDrive ImpactaBurr TCT Chamfer Tool
115200

Select Option
Prices From £27.20 ex VAT

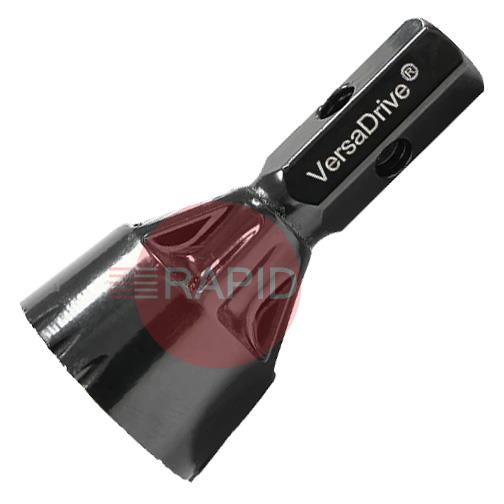

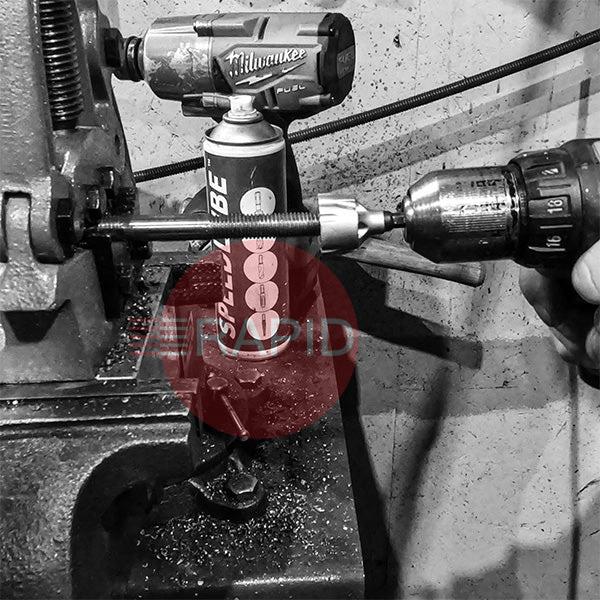

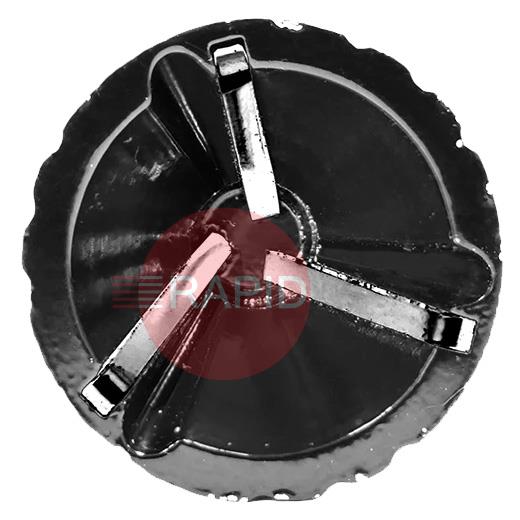

The ImpactaBurr chamfer tool has tungsten carbide inserts designed to chamfer the outside edge of the tube and round bar. This removes dangerous burrs and also prepares the facing edge ready to receive an external thread or fastener.

  • Quick and effective deburring and chamfering
  • Impact rated to reduce dangerous kickbacks
  • Compatible with the VersaDrive® adaptor range
  • 60° angle
  • Impact & Rotary rated

HMT ImpactaDie Threader FAQs

Answers on choosing and using impact-driven die threaders to cut, extend, clean and repair external threads.

How do I work out the thread size and pitch I need?icon-minus-redicon-plus-red

You need two values: the outside (major) diameter and the pitch. Measure the diameter across the crests of the thread with calipers, then try the leaves of a thread pitch gauge until one sits fully along the thread, and read the number stamped on it.

Metric threads are stated as diameter by pitch in millimetres, for example M8 x 1.25. Inch threads are stated as threads per inch. Compare your result against a thread table, and check that a matching nut runs on smoothly by hand. If the nut does not turn freely, stop and re-check instead of forcing it, because that can damage both parts.

Do I need to chamfer the end of the bar first?icon-minus-redicon-plus-red

Yes, it helps. Die-threading guidance says to chamfer or bevel the end of the rod or bar before cutting, so the die can start square and grip properly.

Some kits include a chamfering tool for this. Without a chamfer, the die may start badly, bind or cut a rough first thread. Remove any burr left from cutting the bar, and check that the end is clean and square before starting. Follow the instructions supplied with your kit for the size of chamfer.

Do I need cutting fluid when threading?icon-minus-redicon-plus-red

Yes. Cutting fluid reduces friction and heat, helps the die last longer and improves the finish of the thread. Die makers advise applying it to the die before and during cutting, and makers of impact dies say to apply it regularly to limit heat build-up.

Apply it regularly rather than once, and especially when working on tougher or harder material. Threaded parts can become very hot, so allow them to cool or handle them with care. Wipe off surplus fluid afterwards and check the die and holder for swarf.

How do I clear swarf and avoid the die jamming?icon-minus-redicon-plus-red

The usual die-threading technique is to turn forward for a short way, then ease back slightly to break the chip. This also lets fresh lubricant reach the cutting edges. An impact die has a chip-breaking action built into it, but it still pays to check the die and holder or collar periodically and clear any swarf that builds up.

Keep the tool square to the work and avoid sideways movement or tilting, which can damage the die. Apply firm forward pressure when starting the cut and when reversing off the thread. If the die stalls, back off and clear it instead of forcing it.
