    Rapid Ref : 115300-03

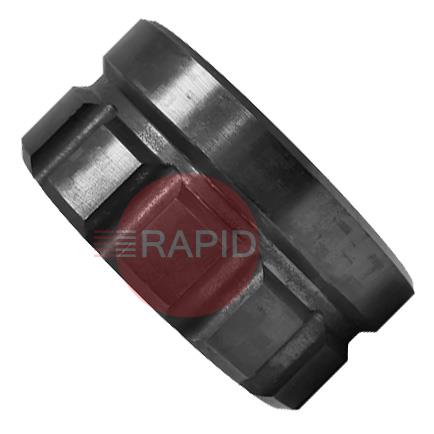

    HMT VersaDrive ImpactaDie XL Flush Collar M16-M25
    115300-03

    £47.09  EX VAT
    SSP Suggested Selling Price = £55.40  YOU SAVE £8.31
     Buy in 3 easy interest free payments of £15.70† with

    Create XL external threads quickly and easily with this unique patent-pending impact die system. Ideal for both creating/extending new threads, repairing existing damaged/deformed threads or cleaning old threads clogged with surface coatings, rust or other unwanted material that can prevent threads mating and turning properly.

    • Guide collar ensures straight & true threading
    • Create external threads from M16 - M25
    • Create external threads up to 75mm long
    • Impact chipbreaker action for effective swarf evacuation
    • VersaDrive patented shank & modular adapters provide unbeatable jobsite flexibility
    • Use with Impact Wrenches (prevents dangerous kickback)
    • Clean out existing external threads
    • Impact-rated due to dual hardening process - allows up to 15X faster speed than traditional methods

    HMT ImpactaDie Threader FAQs

    Answers on choosing and using impact-driven die threaders to cut, extend, clean and repair external threads.

    Do I need to chamfer the end of the bar first?icon-minus-redicon-plus-red

    Yes, it helps. Die-threading guidance says to chamfer or bevel the end of the rod or bar before cutting, so the die can start square and grip properly.

    Some kits include a chamfering tool for this. Without a chamfer, the die may start badly, bind or cut a rough first thread. Remove any burr left from cutting the bar, and check that the end is clean and square before starting. Follow the instructions supplied with your kit for the size of chamfer.

    Do I need cutting fluid when threading?icon-minus-redicon-plus-red

    Yes. Cutting fluid reduces friction and heat, helps the die last longer and improves the finish of the thread. Die makers advise applying it to the die before and during cutting, and makers of impact dies say to apply it regularly to limit heat build-up.

    Apply it regularly rather than once, and especially when working on tougher or harder material. Threaded parts can become very hot, so allow them to cool or handle them with care. Wipe off surplus fluid afterwards and check the die and holder for swarf.

    How do I clear swarf and avoid the die jamming?icon-minus-redicon-plus-red

    The usual die-threading technique is to turn forward for a short way, then ease back slightly to break the chip. This also lets fresh lubricant reach the cutting edges. An impact die has a chip-breaking action built into it, but it still pays to check the die and holder or collar periodically and clear any swarf that builds up.

    Keep the tool square to the work and avoid sideways movement or tilting, which can damage the die. Apply firm forward pressure when starting the cut and when reversing off the thread. If the die stalls, back off and clear it instead of forcing it.

    Can I use it to clean up or repair a damaged thread?icon-minus-redicon-plus-red

    Yes, a die is often used on external threads that are rusty, clogged with coating or lightly deformed, to clean up bolts and studs. Use the collar designed for cleaning and rethreading so the die can run the full length of the thread.

    Be aware that a cutting die removes some metal, whereas a thread chaser reforms the existing thread without removing material. Where a thread is badly damaged, worn or missing too much material, replacing the part is usually safer than trying to rescue it. Always match the die to the exact diameter and pitch of the thread.
