1G82-R Gullco Katback 1G82-R CERAMIC TILES 9M Box

Click the thumbnails to view larger images

Rapid Ref : 1G82-R

YOU PAY
£ 31.50
ex VAT

Qty :

Rest Of Shelf

This tile is similar to the 1G42-R but it is thicker and more robust for heavier weld deposits and higher amperages. Each tile is radiused to form the strip around the cylinder.

Impart X-ray Quality Back Beads On Root Pass
Weld One Side Only
Deposit More Weld Metal
Root Weld And Fill In One Pass
Eliminate Defects And Rework
Eliminate Costly Unnecessary Gouging And Grinding
Sizes 1/4” (6.3 mm) to 6” (152.4 mm)
Special Sizes And Configurations Available
Conveniently Packaged and Sealed In Plastic For Moisture Proof Protection
Wider Heat Receptive Pressure Sensitive Foil For Improved Adhesion To Work Piece

9m - 30ft./ box
Available in 1/4” to 2” (6.3mm to 50.8mm) tiles.

Gullco 1G82

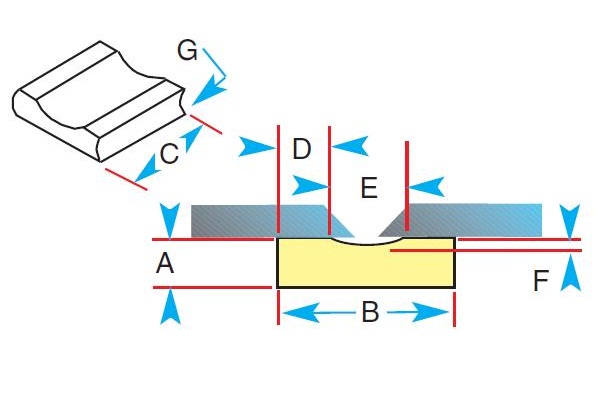

Specifications
A	5/16 in 7.9 mm
B	1 1/4 in 31.7 mm
C	1 in 25.4 mm
D	13/32 in 10.3 mm
E	7/16 in 11.1 mm
F	1/16 in 1.6mm
G	3/16 in 4.8 mm
