    Rapid Ref : 202050-SET3

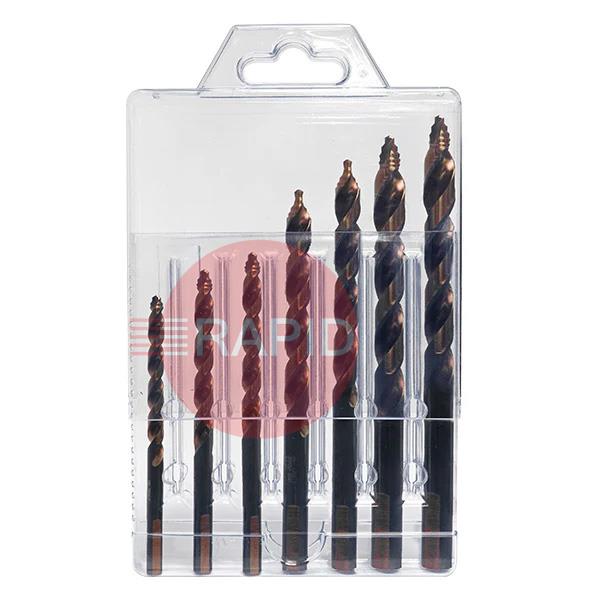

    HMT TurboTip Cobalt Jobber Drill Bit 7 Piece Set (5 - 10.2mm)
    202050-SET3

    £55.12  EX VAT
    SSP Suggested Selling Price = £64.85  YOU SAVE £9.73
     Buy in 3 easy interest free payments of £18.37† with
    The TurboTip Cobalt Jobber Drill Bit delivers fast, accurate drilling in steel, stainless steel, and cast iron, with additional capability in aluminium and other non-ferrous materials. Manufactured from 5% cobalt HSCo steel, it offers outstanding heat and wear resistance, maintaining sharpness and accuracy even under continuous use.

    HMT Drill Bits FAQs

    Answers to common questions about choosing and using cobalt, impact and general purpose drill bits for steel.

    What loose clothing, hair or glove precautions apply when drilling?icon-minus-redicon-plus-red

    Drills are rotating machinery, and entanglement is a serious risk. The HSE advises avoiding loose or baggy clothing, tying back or covering long hair, and avoiding jewellery, including rings, when operating engineering machinery. It also says many serious workshop accidents could be avoided if gloves were not worn near rotating machinery such as drills and lathes.

    Follow the instructions for your drill or drilling machine and your own risk assessment. Keep hands clear of the bit while it is turning.

    How should I secure the work and protect my eyes when drilling steel?icon-minus-redicon-plus-red

    Always clamp the workpiece firmly so the bit cannot grab it and spin it round, rather than holding it by hand. Loose workpieces are a serious safety risk.

    Drilling throws off sharp, hot swarf. The HSE lists projectiles and metal splash among eye hazards and says eye protection should be suited to the task and fit properly. Depending on your risk assessment that may mean safety spectacles, goggles or a face shield. Clear swarf only after the drill has stopped, using a brush or hook, not bare hands.

    What is the difference between cobalt and standard HSS drill bits?icon-minus-redicon-plus-red

    Cobalt steel is a variation of high speed steel with a higher cobalt content, usually described by grades with roughly 5 and 8 per cent cobalt. The cobalt gives much better red hardness, meaning the bit keeps its hardness at high cutting temperatures, so cobalt bits suit tough jobs such as stainless steel, hard steel, cast iron and high-tensile bolts.

    Standard HSS is usually adequate for mild steel, aluminium, brass and plastics. Cobalt bits are often a little more brittle, so avoid side-loading them and do not drill at an angle. Because grades vary, check the markings and the maker's guidance for your material.

    What drill size do I need before tapping a thread?icon-minus-redicon-plus-red

    The hole before tapping must be a specific 'tap drill' size, slightly smaller than the thread's nominal diameter, to leave material for the thread to form. A tool maker explains that a hole that is too small forces the tap to remove too much material and risks binding and breaking it, while one that is too large gives shallow threads that can strip.

    Charts often assume a high thread percentage, and a lower percentage that allows a slightly larger drill can make tapping easier. Charts also differ with whether the tap cuts or forms the thread, so use the chart supplied with your tap or the tap maker's data. Drill the hole straight and square to the surface.
