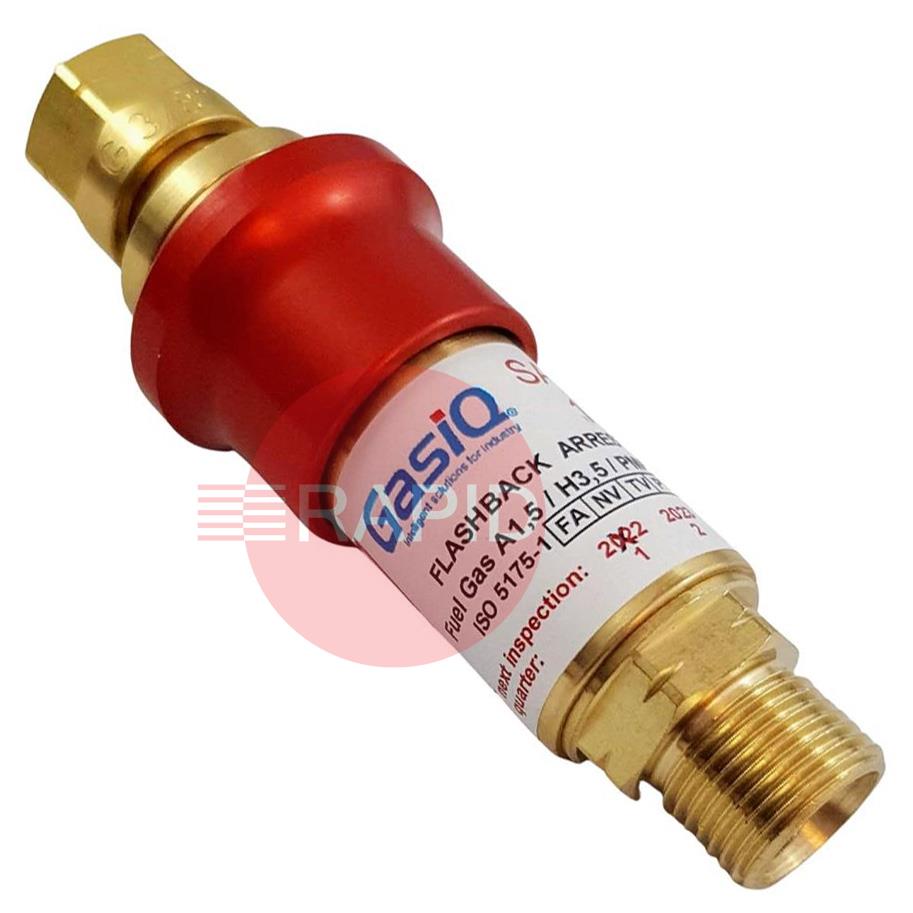

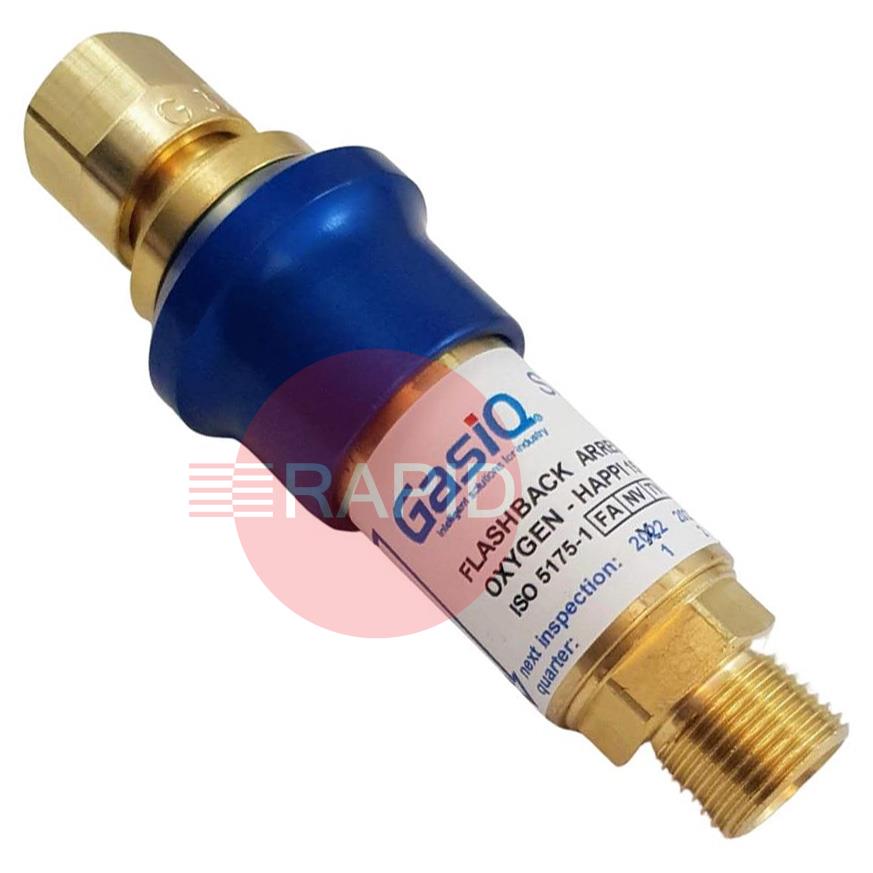

SAFE-X 1000 is a resettable flashback arrestor manufactured in accordance with BS-EN 730.
The model incorporates several unique features. It is designed to be user-friendly, with clear indications of open and closed operating modes. A green stripe indicates in-operation mode. The flashback arrestor closes during flashback, cutting off gas flow. The design includes a reset mechanism.
With the system decompressed and the cause of the flashback determined, the SAFE-X 2000 is reset by pulling the reset button out until the green stripe appears again.
SAFE-X 2000, of course, has all the safety functions you can demand from a modern flash back arrestor.
- A filter which prevents contamination affecting the function of the flashback arrestor.
- Flame arrestor of sintered metal, which stops and extinguishes backfire.
- Non-return valve which prevents flow-back.
- A flow-arrestor which automatically turns off the gas flow on flashback.
- Safety fuse which shuts off the gas flow on overheating.
