    Rapid Ref : 309210

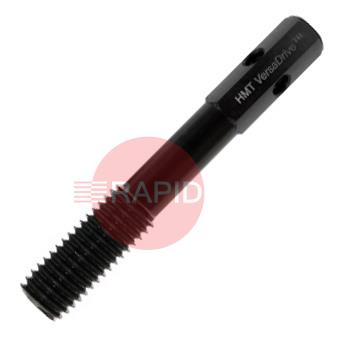

    HMT Versadrive Thread Chaser Black Nitride
    309210

    Select Option
    Prices From £41.52 ex VAT

    New innovative product designed to clean out paint or debris from existing threaded holes and return them to a 6H tolerance without removing any extra material from the thread.

    • Trapezoidal design provides high strength and avoids breakage
    • Reduced risk of cross threading compared to conventional taps
    • HD hex shank design for secure nonslip operation
    • Patented shank and modular adapters provide unbeatable flexibility of use
    • Impact rated, up to 15X faster than traditional methods

    HMT Taps FAQs

    Answers to common questions about choosing and using taps and thread chasers for cutting and restoring internal threads.

    What is the difference between a tap and a thread chaser?icon-minus-redicon-plus-red

    A cutting tap makes a new thread by removing metal from a plain drilled hole. A thread chaser is designed to clean up and re-form a thread that already exists, following the existing thread path without cutting away much material.

    For threads that are dirty, burred or lightly damaged, a chaser is usually the gentler first choice. A cutting tap can remove too much thread material and weaken the thread, so it suits new holes. If a thread is badly stripped, replacing the part or fitting a threaded insert is normally the better repair.

    Why do taps break, and how can I avoid it?icon-minus-redicon-plus-red

    A tap is hard and brittle, and it rarely breaks without warning. Common causes are a hole drilled too small, chips packing in the flutes, the wrong tap style for a blind or through hole, hitting the bottom of a blind hole, side loading from a tap that is not square, and too little lubricant.

    Check the tap drill size, keep the tap square, use suitable cutting fluid and clear the chips by backing off regularly. Stop if the tap suddenly becomes harder to turn, as forcing it is how most taps snap.

    Why do some taps come oversize for galvanised work?icon-minus-redicon-plus-red

    When a part is galvanised, the zinc coating adds thickness to the threads, which can increase the diameter of a bolt thread. The nut or tapped hole therefore needs to be cut slightly larger so that the coated bolt can be assembled. This is called overtapping, and it is why oversize taps exist.

    An oversize tap is not a general replacement for a standard tap, because a nut tapped oversize will fit loosely on an uncoated bolt. Check the maker's marking and the requirement for your fastener before choosing.

    What are taper, plug and bottoming taps?icon-minus-redicon-plus-red

    These describe how long the lead-in chamfer is on a hand tap. A taper tap has the longest chamfer, which spreads the cutting load and makes it the easiest to start straight. A plug tap has a shorter chamfer and is the general-purpose choice for through holes and blind holes with room at the bottom.

    A bottoming tap has only a very short chamfer, so it can cut a thread close to the bottom of a blind hole, but it does not start as freely and is usually used to finish a hole already started with a taper or plug tap. Chamfer lengths vary between makers, so check the tap's specification.
