Rapid Ref : 805046

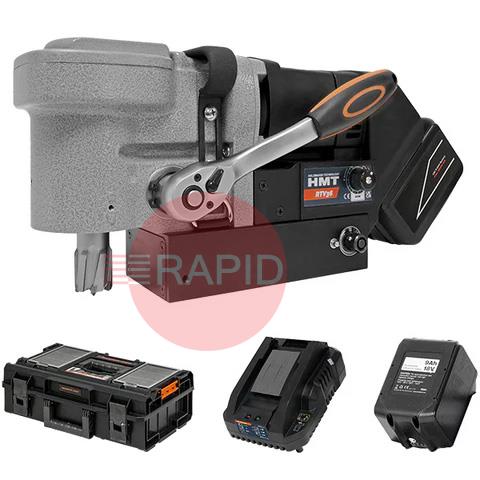

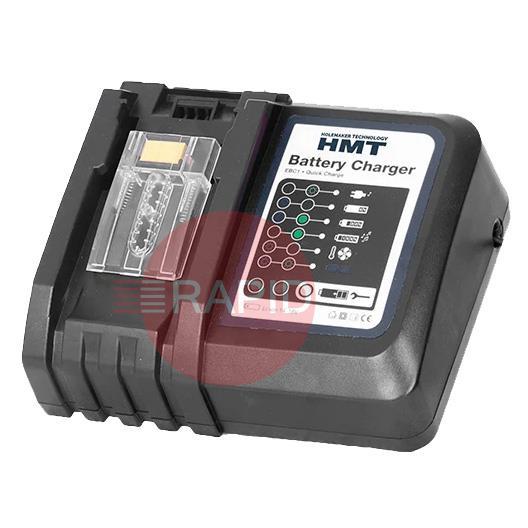

HMT Steelbor Cordless RTV36 Low Profile Magnet Drill Kit with STAKIT Base 200 Case, 2x Batteries & Charger
805046

Select Option
Prices From £1974.00 ex VAT

The RTV36 brings cordless performances to tight-access work for safe, fast drilling where cables can't go. Combining a low-height body with battery power, the RTV36 is ideal for steelwork inside beams, platforms, or confined installations. Built around Makita LXT batteries and designed with permanent magnet hold, it ensures safety and flexibility on remote jobs.

  • Only 198mm tall, built for overheard or inside-beam work
  • Cordless operation removes trip hazards and setup delays
  • Permanent magnet base stays secure without external power
  • Weldon compatible for HSS, TCT and CarbideMax cutters
  • Cuts up to 49 holes per charge with 9.0Ah battery

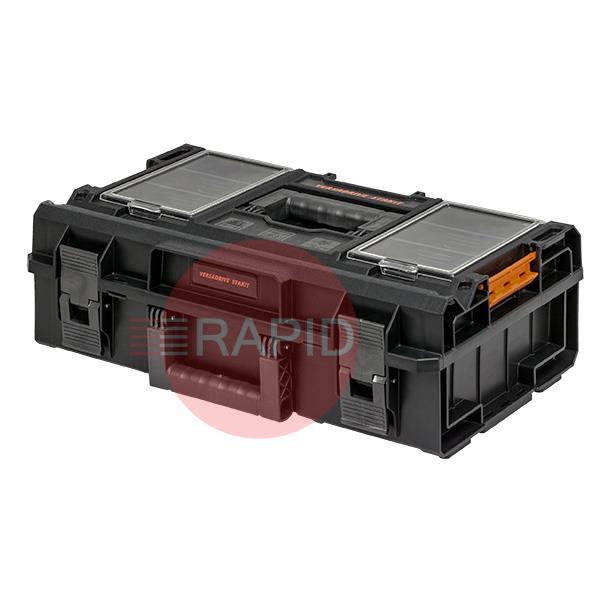

  • Kit include STAKIT case for easy transport and storage
  • Compactible with Makita LXT 18v batteries.

Product Details

Specification

CUTTER SIZE RANGE  12 - 36mm
MAX TCT CUTTER CAPACITY 36mm
MAX HSS CUTTER CAPACITY   32mm
TWIST DRILL CAPACITY 1 - 13mm
COUNTERSINKING 32mm
LENGTH (Inc. 4AH Battery) 385mm
WIDTH 140mm
HEIGHT 177mm
WEIGHT
11.3Kg
STROKE 40mm
MAGNETIC FORCE 650Kg
MOTOR POWER 1000W
TOTAL POWER 1000W
SPEED RPM (No Load) 270 - 430
SPINDLE WELDON 19.05mm 3/4"
ARBOR Integral 3/4" Weldon
COOLANT SYSTEM Optional Extra
WARRANTY 1 Year

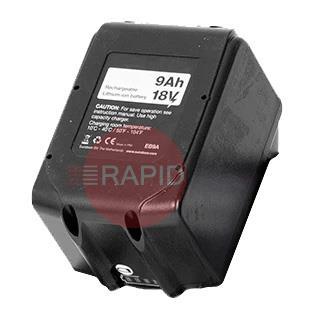

BATTERY CAPACITY 18V 4Ah / 9Ah Li-ion

Brochures & Manuals

HMT Mag Drills FAQs

Straight answers to the questions people ask most when choosing and using magnetic drilling machines.

What is a magnetic drill and what is it used for?icon-minus-redicon-plus-red

A magnetic drill is a portable drilling machine with a powerful electromagnet in its base. When switched on, the magnet clamps the machine firmly to steel, so you can drill accurate holes on site or in the workshop without a drill press.

It is mainly used with annular (hollow core) cutters to make clean holes in structural steel, plate, beams, channel, pipe and fabrications. It is widely used in steel erection, fabrication, shipbuilding, rail and plant maintenance.

Corded or cordless magnetic drill - which is better?icon-minus-redicon-plus-red

It depends on where you work. A corded machine gives consistent power for long runs of production drilling and heavy cutters. A cordless machine is far more convenient on site, at height or where no supply is close, and avoids trailing leads.

Cordless models rely on battery capacity, so plan the number of holes per charge and keep a spare battery for a full day's work. For the largest holes and continuous drilling, many users still prefer mains power. Check the manufacturer's stated hole capacity for each type.

What can a magnetic drill be fixed to, and what affects the magnet's grip?icon-minus-redicon-plus-red

The magnet only holds well on ferrous steel. It will not grip aluminium, stainless steels that are non-magnetic, copper or plastics, so those need a clamp, vacuum base or other fixing method.

Holding force depends on the thickness, flatness and cleanliness of the steel. Thin sheet, rough or painted surfaces, rust, swarf under the base and curved surfaces all reduce the grip. Clean the surface and the magnet face, and use the manufacturer's guidance on minimum material thickness. On pipe or uneven work, use a suitable pipe or V-base and a safety chain or strap.

What speed and feed should I use?icon-minus-redicon-plus-red

Larger cutters need slower speeds and smaller cutters faster ones, and harder or tougher materials such as stainless steel need slower speeds than mild steel. A variable speed machine lets you match the speed to the cutter and the job.

Feed steadily with even pressure and let the cutter do the work. Forcing it overloads the motor and chips the teeth; too light a feed makes it rub and blunt. The cutter manufacturer's speed recommendations should be your starting point. Listen for the sound: a steady cut and a continuous swarf curl suggest you are close.
