9873830 Kemppi Zeta Fresh Air W201 Auto Darkening Welding Helmet & PFU 210e PAPR System, Shades 8-12
    Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

    Rapid Ref : 9873830  Mfr Ref : P0735

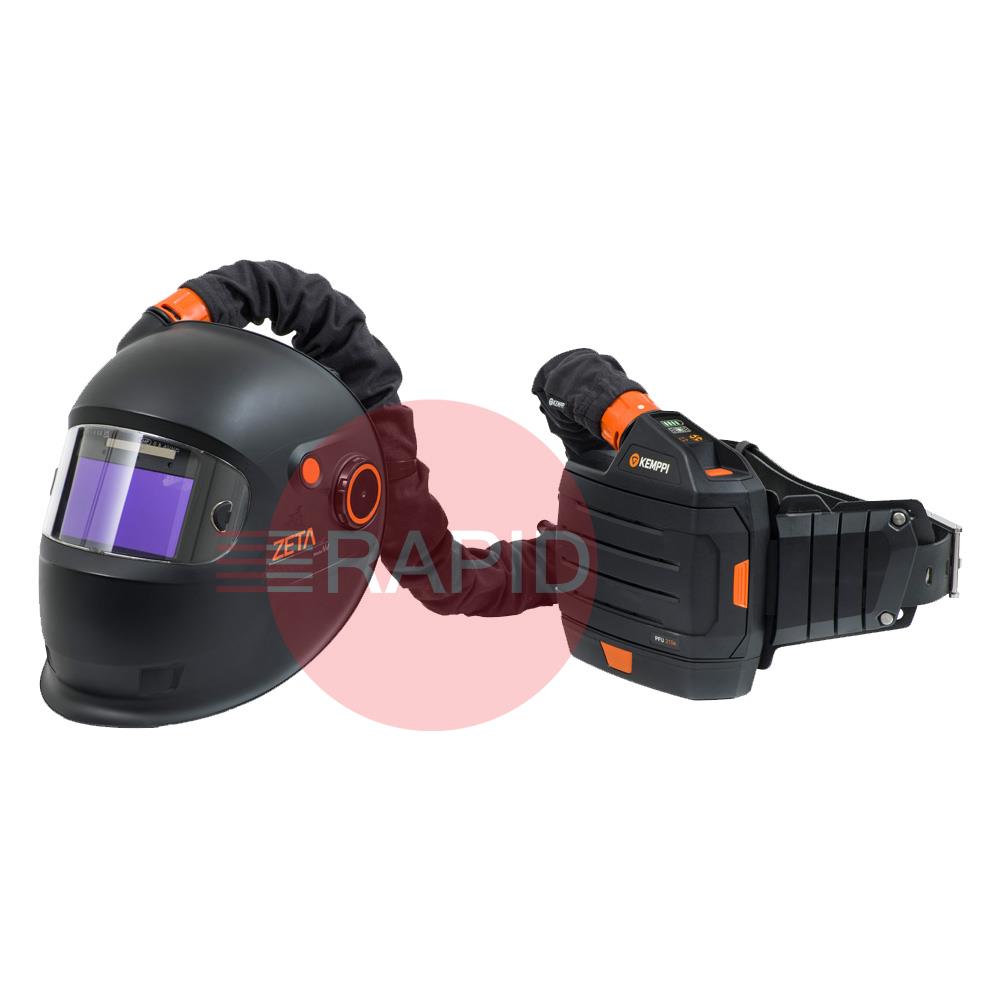

    Kemppi Zeta Fresh Air W201 Auto Darkening Welding Helmet & PFU 210e PAPR System, Shades 8-12
    P0735 9873830

    £1091.00  EX VAT
    SSP Suggested Selling Price = £1283.07  YOU SAVE £192.07
     Buy in 3 easy interest free payments of £363.67† with
    Shop Parts

    Lightweight design for added comfort

    Get the best protection and comfort for welding or cutting. Zeta Fresh Air is a complete respiratory protection system that includes a lightweight welding and cutting helmet and a certified Kemppi respirator. Zeta Fresh Air prioritises welder health with comprehensive eye, face, and breathing protection while remaining comfortable and easy to use.

    Offers the same TH3-level breathing protection and auto-darkening welding filter as the W201x PFU 210e, as well as the same comfort and ease-of-use features. This version does not include the built-in automatic LED work lights.

    Product Details

    TH-3 LEVEL BREATHING PROTECTION

    Zeta Fresh Air is a complete solution for work environments with harmful fumes, particles or gases. A Zeta welding helmet, combined with a powered filter unit, gives you best-in-class TH3-level breathing protection and freedom of movement.


    OPTIMISED ERGONOMICS

    Zeta Fresh Air welding helmets make work easier. A lightweight, narrow design makes it easy to move around the shop while also minimising neck fatigue at the end of the day. Well-placed buttons and controls are easy to reach with one hand, and all Zeta Fresh Air welding helmets offer high-quality ADF and a 110 x 60mm viewing area.



    Technical specifications Value
    Welding filter type SA 60Z
    ADF view size (mm) 110 x 60
    ADF switching time 0.1 ms
    ADF light state 2.5
    ADF shade range 8 - 12
    ADF sensors 3
    ADF UV/IR protection At all times
    ADF battery type 1 x CR2450
    ADF remote control Yes
    ADF classification V1
    Grind mode Yes
    Flip-up visor No
    Impact rate EN ISO 16321 E
    Operating temperature -5 - 55 °C
    Storage temperature -20 - 50 °C
    Recommended maximum humidity for use 80%
    Materials Glass, 100% cotton, ABS, PA, Padding foam, plastic, PC, POM, PP
    Weight without accessories 680g
    Standards EN ISO 16321-1 E, EN ISO 16321-2, EN 12941 TH3, EN 14594, AS/NZS 1716 P2, AS/NZS 1337.1, AS/NZS 1338.1

    Related Items

    Kemppi Air Fed Helmets FAQs

    Straight answers to the questions people ask most when choosing a welding or grinding helmet with a powered or flow-controlled air system.

    What is the difference between a powered respirator unit and a flow-controlled compressed air system?icon-minus-redicon-plus-red

    A powered respirator unit is a belt-worn blower with a battery that filters the surrounding air and passes it to the helmet. A compressed-air system feeds clean breathing air from a supply through a flow-control unit.

    A battery unit gives freedom to move without a hose to a fixed supply. A compressed-air system needs a suitable air source and clean, properly filtered air, but has no battery to charge. Choose by the work, the site and what you already have.

    Which helmet should I choose for welding and which for grinding?icon-minus-redicon-plus-red

    A welding helmet has an auto-darkening filter for arc work. A grinding helmet has a clear visor and is built for impact from particles and sparks.

    If you do both, you can use a welding head for arc work and swap to a grinding head on the same blower, if the system allows. This is often easier than a single compromise helmet.

    What does the shade range tell me?icon-minus-redicon-plus-red

    The shade range shows how dark the filter can go and how light it is in the clear state. A range that starts at a low shade is good for low-current work and for seeing before the arc starts, while higher shades are for heavy current.

    Choose a range that covers your processes and currents. A variable shade control gives more flexibility.

    How do I know the unit is giving enough air?icon-minus-redicon-plus-red

    Most units have an indicator, an alarm or both to show low flow or a low battery. A flow test with the test device, or the method in the manual, should be done before each shift.

    If the flow is low, check for a clogged filter, kinked hose or a flat battery. Do not weld until the correct flow is restored.
