Rapid Ref : ABM30

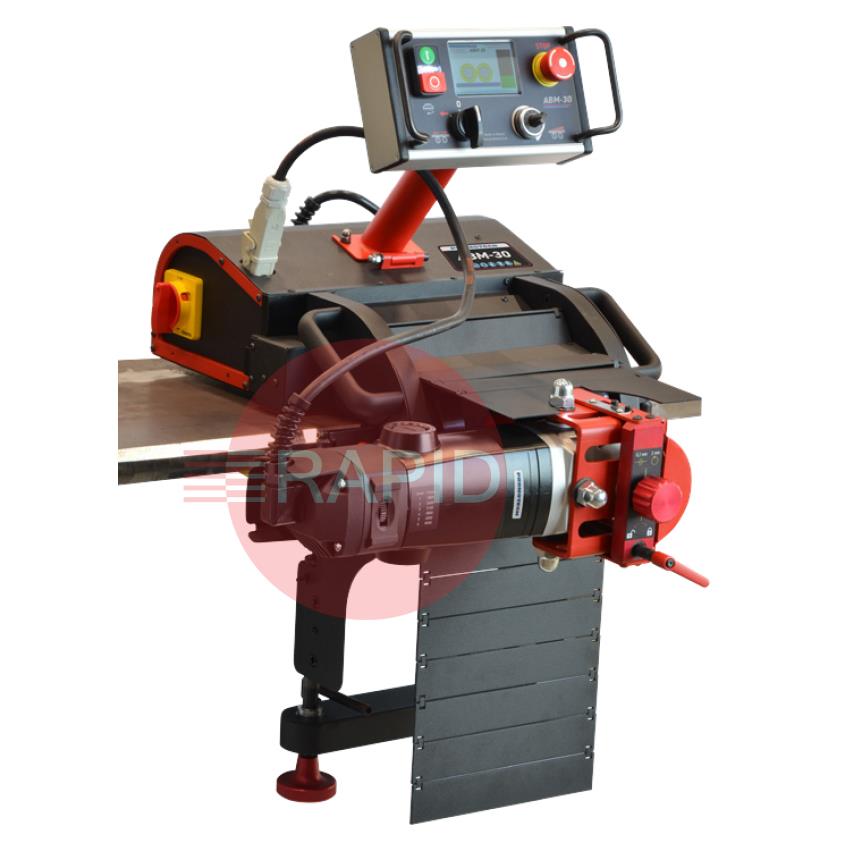

JEI Steelbeast ABM-30 Automatic Feed Trackless Beveller (Up to 30mm)
ABM30

Select Option

Prices From £12995.00 ex VAT

The Steelbeast ABM-30 portable bevelling machine from performs auto-feed bevelling on steel plates on the top, face and bottom edges. Despite not needing a track to move along the steel plate, the ABM-30 still produces accurate high-quality, double-sided bevels without thermal distortion or heat-affected zones on plate thicknesses ranging from 8-60 mm.

FEATURES

Needs no track to travel in both directions with feed speed up to 2 m/min
4 wheels feed drive eliminates hard physical work of the operator
Produces double-side bevels without having to flip the plate enhancing safety and reducing material handling time and expense
Edge to Edge working range
Semi-automatic feed stop at end of the metal sheet
Variable spindle speed
Bevel width up to 30 mm (1-3/16”)
Variable angle (-70°+70°)
Max. plate thickness up to 60 mm
Innovative, robust chip protection solution

Product Details

Voltage: 110/230 V, 50/60 Hz

Power: 2200 W

Spindle Rotational Speed (without load): 1800-5650 RPM

Feed Speed: 0-2 m/min

Bevel Angle: From -70° to 70°

Maximum Bevel Width: 30mm

Sheet Thickness: 8-60mm

Required Ambient Temperature: 5-40°C

Weight: 53kg
