CK-CK24W25SF-OZMO CK OZMO 180A Water-Cooled TIG Torch with 7.6m (25ft) Superflex Cables, G3/8 Machine Connections
  • CK-CK24W25SF-OZMO CK OZMO 180A Water-Cooled TIG Torch with 7.6m (25ft) Superflex Cables, G3/8 Machine Connections
  • CK-CK24W25SF-OZMO CK OZMO 180A Water-Cooled TIG Torch with 7.6m (25ft) Superflex Cables, G3/8 Machine Connections
  • CK-CK24W25SF-OZMO CK OZMO 180A Water-Cooled TIG Torch with 7.6m (25ft) Superflex Cables, G3/8 Machine Connections
  • CK-CK24W25SF-OZMO CK OZMO 180A Water-Cooled TIG Torch with 7.6m (25ft) Superflex Cables, G3/8 Machine Connections
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : CK-CK24W25SF-OZMO  Mfr Ref : CK24W-25SF-OZMO

CK OZMO 180A Water-Cooled TIG Torch with 7.6m (25ft) Superflex Cables, G3/8" Machine Connections
CK24W-25SF-OZMO CK-CK24W25SF-OZMO

£330.00  EX VAT
SSP Suggested Selling Price = £550.50  YOU SAVE £220.50
 Buy in 3 easy interest free payments of £110.00† with
Shop Parts

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure

Related Items

CK OZMO / Cut Down / 180A Torches FAQs

Answers for buyers choosing and looking after compact and extended-neck water-cooled TIG torches in the 180 amp class.

What is an extended-neck torch head for?icon-minus-redicon-plus-red

A longer neck lets the cup and tungsten reach into recessed joints, deep corners and areas behind obstructions where a standard head and handle would foul the work. It is mainly a reach and visibility solution for awkward joints.

The trade-off is that the handle sits further from the arc, so the torch can feel less balanced and needs a steadier hand. Pair it with the correct cup for the joint, check that gas coverage is still good at the end of the reach, and make a trial weld on scrap before committing to the real job.

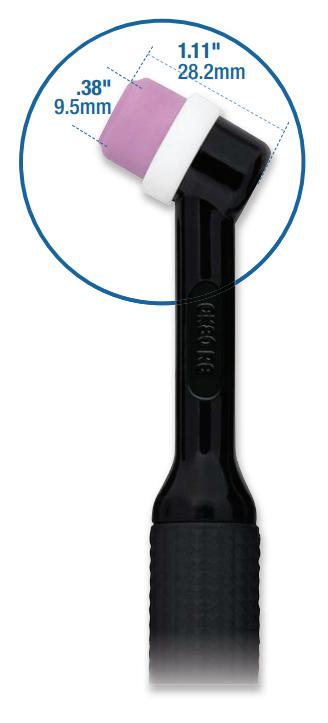

What do compact consumables and a short back cap give me, and what do I give up?icon-minus-redicon-plus-red

A short, button-style back cap and low-profile consumables shorten the overall head so it fits into small, low-clearance spaces. Makers note that short and medium back caps are used with tungsten electrodes cut down to a shorter length, whereas long back caps take a standard full-length electrode.

What you give up is gas coverage and convenience. Smaller cups generally give less shielding coverage than larger ones, so you may need to slow down, watch the heat input and check the weld for discolouration or porosity. Your torch manual will say which cups, collets and back caps fit your head size.

How do I tell whether the coolant is flowing properly?icon-minus-redicon-plus-red

Never start welding with a water-cooled torch unless the cooler is filled and running. Makers advise checking that coolant is circulating while you weld, and with many coolers you can see a strong return flow into the coolant tank when the system is working.

If the torch or cable becomes unusually hot, stop and let it cool, then check the coolant level, the flow, any kinked or blocked hoses and whether the coolant is contaminated. Persistent overheating means the torch should be checked by a competent person rather than used until it fails.

How do I deal with leaks and O-rings on a water-cooled torch?icon-minus-redicon-plus-red

Check that all coolant connections are leak-tight each time you set up, and look at the O-ring on the torch body before each start-up to make sure it is undamaged. Makers also advise inspecting coolant hoses, seals and connections regularly and replacing any that are damaged or leaking. A leak at the head, neck or hose should be fixed promptly because it can also lead to weld defects.

When you disconnect the torch, seal the coolant hoses with the plug supplied so coolant does not spill. Before any maintenance, isolate the power source and shut off the gas.

See all 6 questions for this category
