Rapid Ref : GPPH-IPL

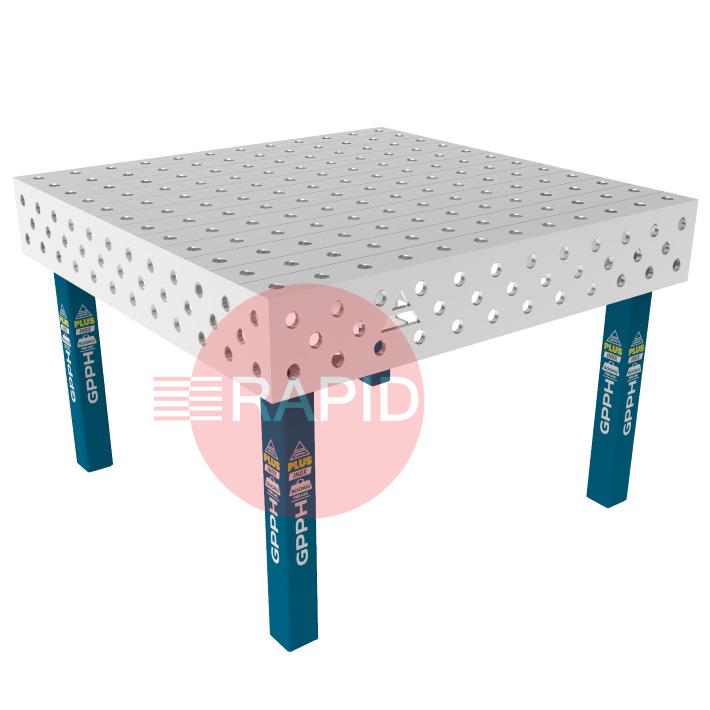

GPPH PLUS INOX Series Welding Table (12mm Top)
GPPH-IPL

Select your Table Specifications below.

The price will be calculated once you add it to your basket.

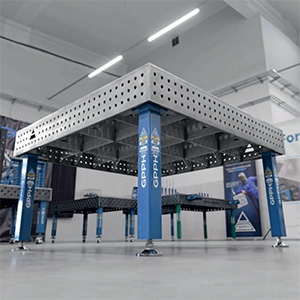

GPPH’s INOX welding tables come in two distinct ranges: PRO and PLUS. Robust and rigid construction of the tabletop provides maximum stability during use and protects against deformation. The height of the side walls of the tables is 200 mm, and they are made with a deviation tolerance of ±0.3°.

GPPH PLUS INOX tabletops have a thickness of 12 mm feature dense ribbing, which ensures a perfectly flat working surface. The massive and rigid tabletop structure guarantees maximum stability whilst manual or robotic welding and protection against deformation. The flatness tolerance of the table across the entire surface is ±0.3°.

Product Details

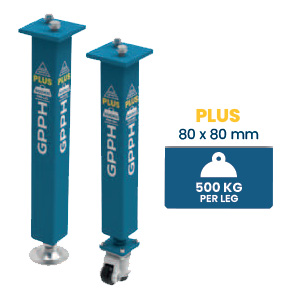

Select between two options of On Feet or On Wheels to suit your welding needs. PLUS series leg dimensions are 80 x 80 mm, and has a load of capacity of 500 Kg per leg.

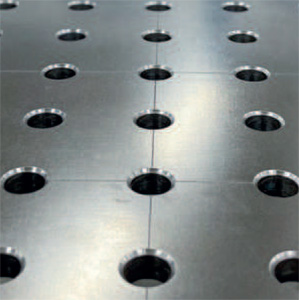

All GPPH traditional welding tables have dense ribbing. This contributes to a perfectly flat working surface. The ribs are spaced every 400 mm on average.

These tables are made of stainless steel with a high chromium content that provides durability and resistance to corrosion. When welding stainless steel structures, corrosion foci will not appear on them.

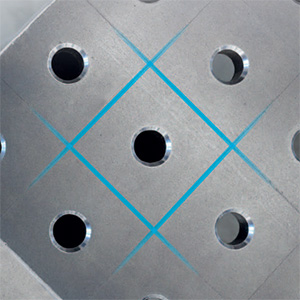

Each tabletop has an engraved scale. These are vertical and horizontal lines in a 50 x 50 (Ø 16) or 100 x 100 mm (Ø 28) grids. It is a reference point when laying out the structure and when assembling tools. Using measuring tools, you can adjust your structure accordingly to get the exact dimensions you need.
