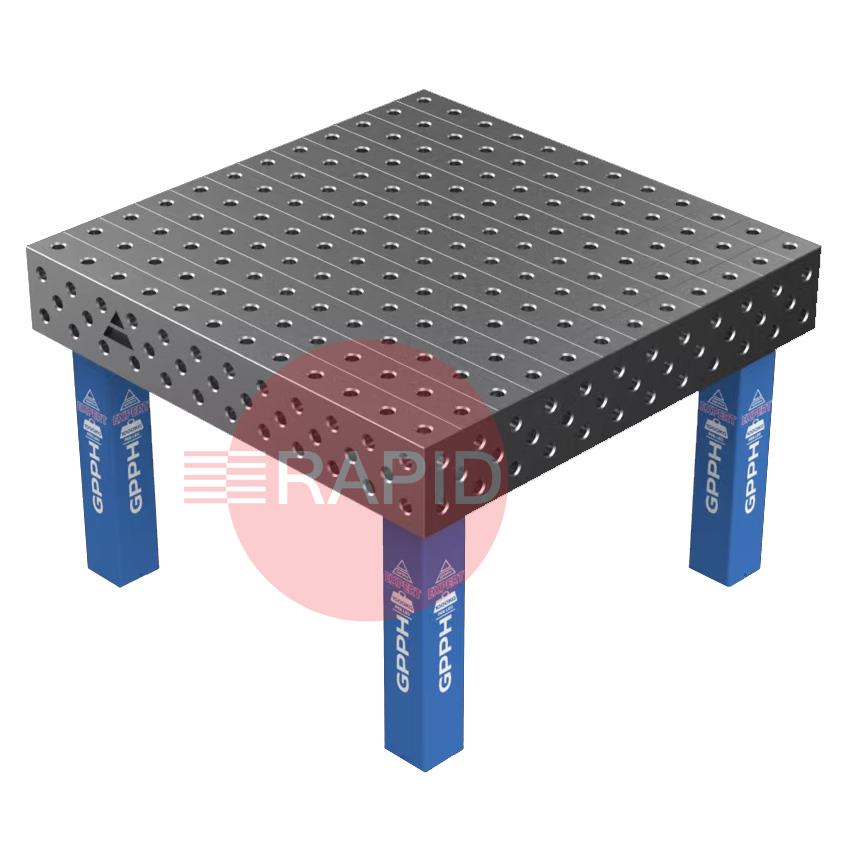

GPPH-TEX GPPH EXPERT Series Traditional Welding Table (25mm Top)
    Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

    Rapid Ref : GPPH-TEX

    GPPH EXPERT Series Traditional Welding Table (25mm Top)
    GPPH-TEX

    Select your Table Specifications below.

    The price will be calculated once you add it to your basket.
    Select Table Size
    3000mm x 1480mm
    2400mm x 1200mm
    2000mm x 1000mm
    1500mm x 1480mm
    1500mm x 1000mm
    1200mm x 1200mm
    1200mm x 1000mm
    1200mm x 800mm
    1000mm x 1000mm
    1000mm x 600mm
    Select Grid
    100mm x 100mm
    Diagonal
    Select Legs
    On Feet
    On Wheels
    GPPH EXPERT tabletops have a thickness of 25 mm feature dense ribbing, which ensures a perfectly flat working surface. The massive and rigid tabletop structure guarantees maximum stability whilst manual or robotic welding and protection against deformation. The flatness tolerance of the table across the entire surface is =0.15 mm.

    *Please be aware that the GPPH EXPERT tables are only available for System 28.*

    Product Details

    • Flatness tolerance of the table: ±0.3 mm
    • 3 rows of holes in the side wall: Yes
    • Thickness of the tabletop: 25 mm
    • Chamfered / milled holes: Yes
    • Chamfered holes on the underside: Yes
    • Tolerance of hole workmanship: +0.05 mm

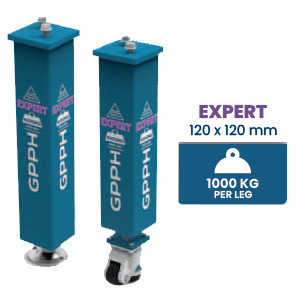

    • Leg profile: 120 x 120 x 4 mm
    • Carrying capacity per leg: 1000 kg
    • Total load capacity for table with 4 legs: 4000 kg
    • Total load capacity for table with 6 legs: 6000 kg
    • Total load capacity for table with 8 legs: 8000 kg
    • Milled edges of the tabletop: Yes
    • Table height: 880 – 930 mm
