Rapid Ref : INSTA110

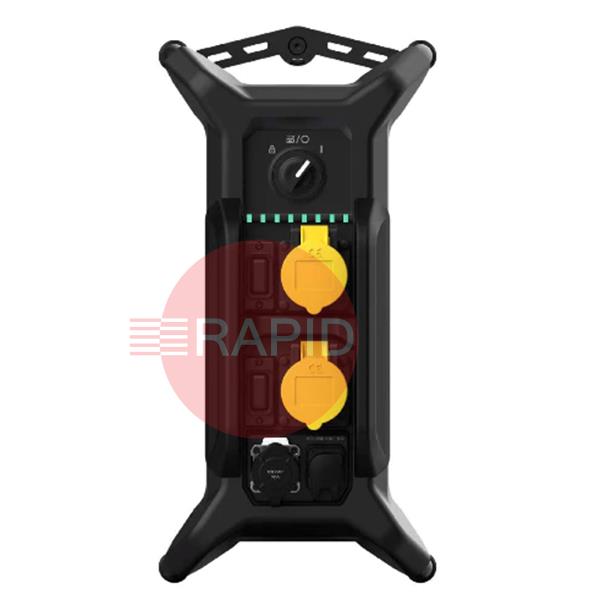

Instagrid Go 36 LV Portable 16A Battery Power Supply - 110v
INSTA110

£3596.00  EX VAT
 Buy in 3 easy interest free payments of £1198.67 with

Experience the freedom from mains power with the Instagrid Go Portable Power Supply System. Engineered to redefine mobile energy, this cutting-edge system delivers powerful, clean, and silent energy wherever you need it. Thanks to innovative micro-level inverter technology, the Instagrid design is compact, lightweight (just 21kg), and portable enough to carry in one hand, yet powerful enough to rival 32A/110V construction site power.

With a rated output of 3.6kW and an impressive peak power output of 18kW, Instagrid Go provides dependable energy for professionals working in remote locations, construction sites, or any off-grid environment. Say goodbye to noisy, polluting generators and hello to an emission-free revolution. Built to withstand outdoor and indoor conditions, the durable IP44-rated housing ensures reliability in all weather conditions.

Featuring a simple, plug-and-play design and adaptable power outputs, Instagrid makes powering your tools, welders, or devices effortless. Whether you’re powering heavy-duty tools or sensitive electronics, rest assured that the system generates a pure AC sine wave for stable, efficient energy delivery.

Silent, lightweight, and eco-friendly, Instagrid is the portable power solution for modern professionals demanding high-performance energy on the go.

Backed by a 4-year manufacturer’s warranty, you’ll enjoy peace of mind knowing this high-performance product is built to last.

Product Details

Operating state: Discharging
Output voltage 110 VAC / 50 Hz
Rated power 3.600 W / 2 x 16 A
150% overload (5,400 W / 49 A) Operating for >450 s possible
200% overload (7,200 W / 65 A)  Operation for >60 s possible
250% overload (9,000 W / 82 A)   Operation for >16 s possible
300% overload (10,800 W / 98 A)   Operation for >6.5 s possible
Peak Power  18.000 W / 80 A
Circuit breaker 32 A eFuse (tripping characteristics C) and one 16 A thermal breaker per CEE receptacle)
Permitted operating temperature   -20°C to 60°C
Operating state: Charging
Input voltage 100 - 240 VAC / 50 - 60 Hz
Rated input current 6 A
Rated input power   600 - 1,440 W
Charge time / 0 to 80% (230 V AC) below 2.5h (at room temperature 25 °C)
Charge time / 0 to 100% (230 V AC)   below 3.0h (at room temperature 25 °C)
Permitted operating temperature  0°C to 45°C
General information
Battery capacity   2.074 Wh (24 packs / 86.4 Wh each)
Weight   21 kg
Dimensions   458 x 210 x 420 mm
IP Class   IP54
Protection class   Class II / double-insulated
Noise emission   < 30 dB(A) / whisper-quiet (fanless)

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   Instagrid Go Instruction Manual
