Rapid Ref : INSTA230

Instagrid One Portable 16A Battery Power Supply - 230v
INSTA230

£3395.00  EX VAT
 Buy in 3 easy interest free payments of £1131.67 with

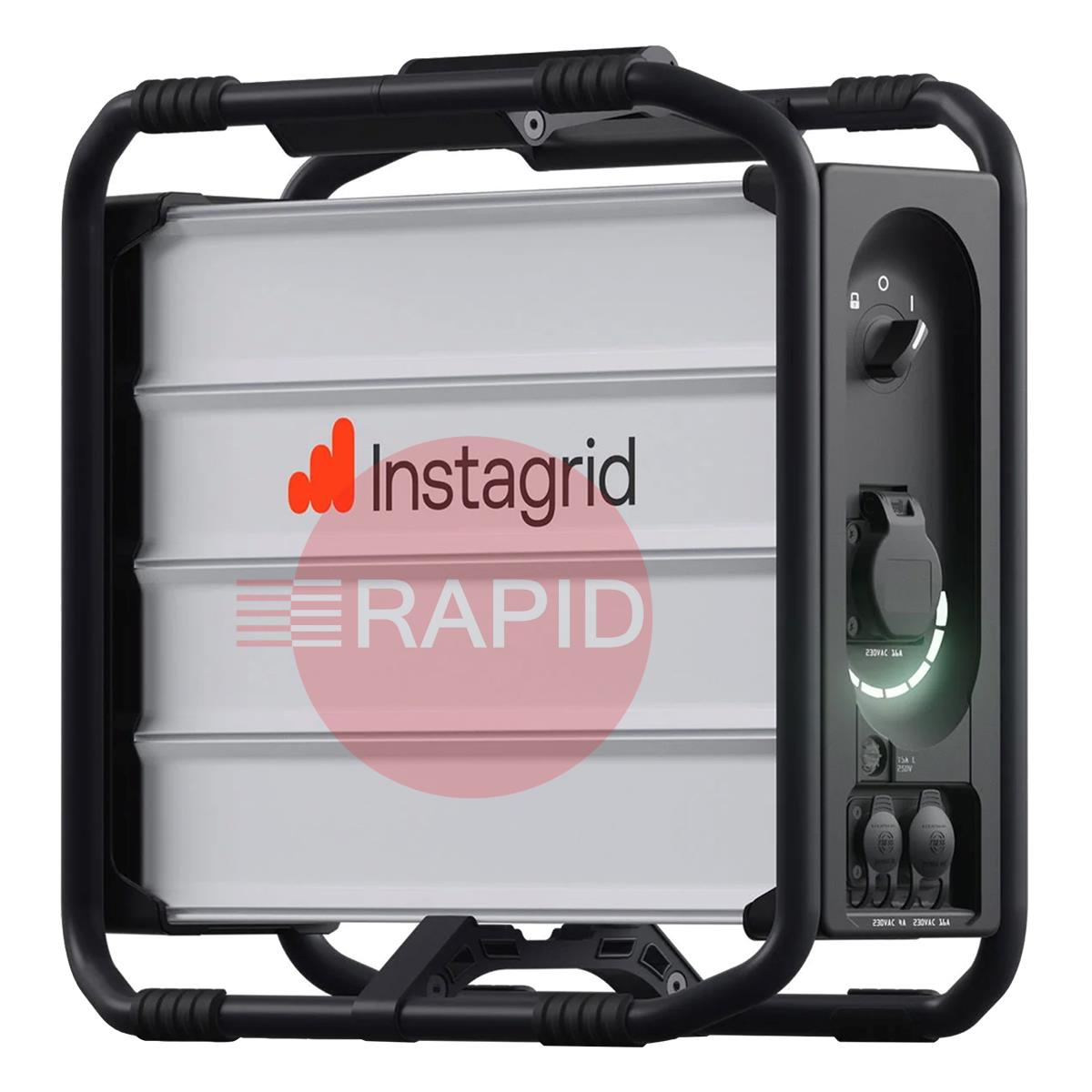

Experience the freedom of power on the go with the Instagrid One. Designed for professionals on the go, the power supply delivers reliable, clean energy wherever and whenever you need it. Weighing an ultra-light 20kg, this one-handed portable power solution packs a punch with 3.6kW of continuous power and a staggering 18kW peak power, making it ideal for construction sites, events, travel, production, or any off-grid workspace.

What sets Instagrid One apart is its revolutionary micro-inverter technology, breaking free from traditional bulky designs. Each battery module operates independently, working seamlessly to deliver a pure AC sine wave for stable and efficient power. Engineered and designed in Germany, this cutting-edge innovation ensures the ONE is more compact, lightweight, and powerful than standard battery systems.

Whether you're braving outdoor weather or powering indoor equipment, the IP44-rated weather-resistant design has you covered. With a long runtime of 2.1kWh and lightning-fast charging in just 2.5 hours, you'll never miss a beat. Plus, enjoy the luxury of zero emissions and completely silent operation, eliminating the hassle of noisy, fume-heavy generators.

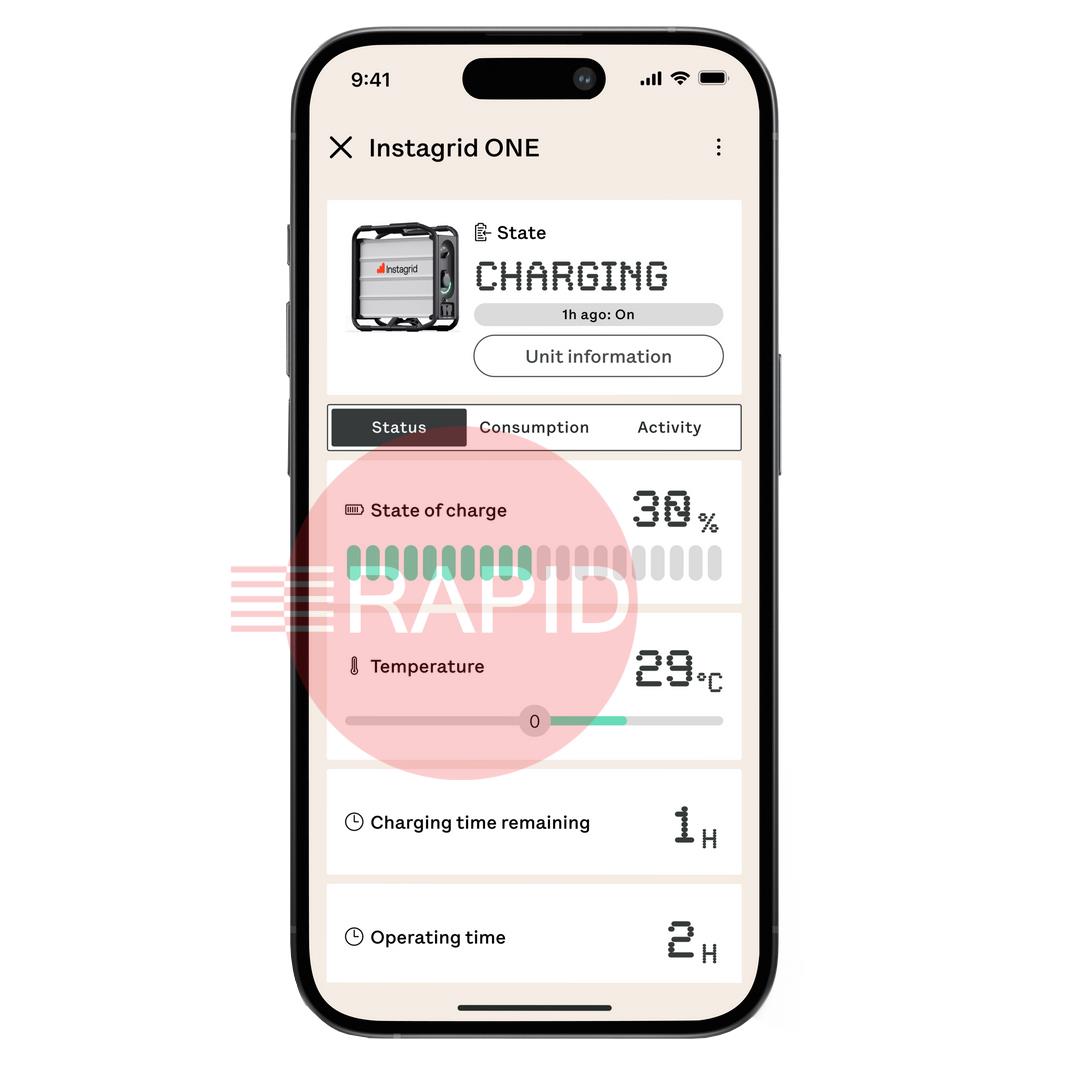

And it doesn’t stop there—Instagrid One is built for the future. With integrated GPS and a Smart App Controller, managing your power supply will be effortless.

Experience portable power like never before. The Instagrid One isn’t just a device; it’s your ticket to energy independence. Anywhere. Anytime.

Backed by a 4-year manufacturer’s warranty, you’ll enjoy peace of mind knowing this high-performance product is built to last.

Product Details

Operating state: Discharging
Output voltage 230 VAC / 50 Hz European grid standard
Rated power 3.600 W / 16 A RMS
150% overload (5,400 W / 24 A) Operating for >500 s possible RMS
200% overload (7,200 W / 32 A)  Operation for >50 s possible RMS
250% overload (9,000 W / 40 A)   Operation for >10 s possible RMS
Peak Power  18.000 W / 80 A  Peak
Maximum short-circuit current   500 A (peak)
Maximum operating time (idle)   150 h
Line protection   16 A - similar to B16" circuit breaker
Permitted operating temperature   -20°C to 60°C
Operating state: Charging
Input voltage 120-240 VAC / 50-60 Hz  RMS
Rated power   500-1.000 W / 4    Voltageindependent current consumption / RMS
Charge time  < 3h to 100%   At 230 VAC and 25°C ambient temperature
Permitted operating tempeature  0°C to 45°C
General information
Battery capacity   2.074 Wh
Weight   20 kg
Dimensions   420 x 210 x 420 mm
IP Class   IP54   Water and dust proof
Protection class   Class II / double-insulated   According to IEC 61140
Noise emission   < 10 dB(A)   Silent
Storage   > 3 years
