Rapid Ref : QPS 400  Mfr Ref : PJQ/B

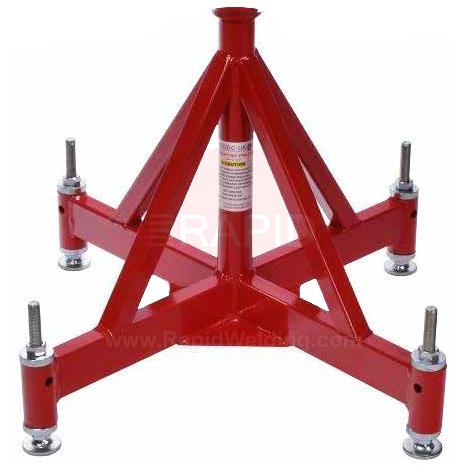

Pipe Jack Quattro Heavy Duty Stand (Base Only with Level Pads)
PJQ/B QPS 400

£159.40  EX VAT
 Buy in 3 easy interest free payments of £53.13† with

Quattro Heavy Duty Pipe Stands are designed for efficient, reliable pipe handling in workshops and on site.

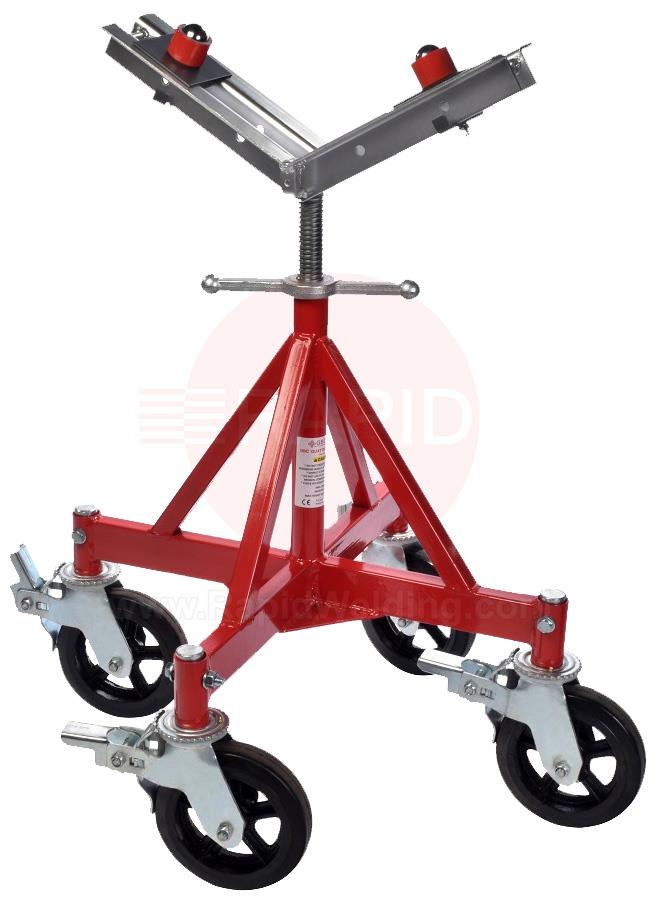

Each stand functions as a standard jack stand and includes levelling pads for uneven ground. Tested to support up to 2,500 kg per stand, it can also be supplied with lockable castor wheels, making it easy to move pipes up to 36” in diameter around a workshop or site.

Features

  • Weight certified to 2500kg
  • For pipe up to 36” in diameter
  • Variety of head options
  • Optional castor wheel for pipe transportation
  • Height adjustable
  • Suitable for carbon or stainless steel

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure

Related Items

Large Vee Head Jacks FAQs

Heads, wheel kits, ball transfers and hold-downs that adapt a heavy-duty pipe jack stand to the job in hand.

When should I use a large V head rather than a roller or wheel head?icon-minus-redicon-plus-red

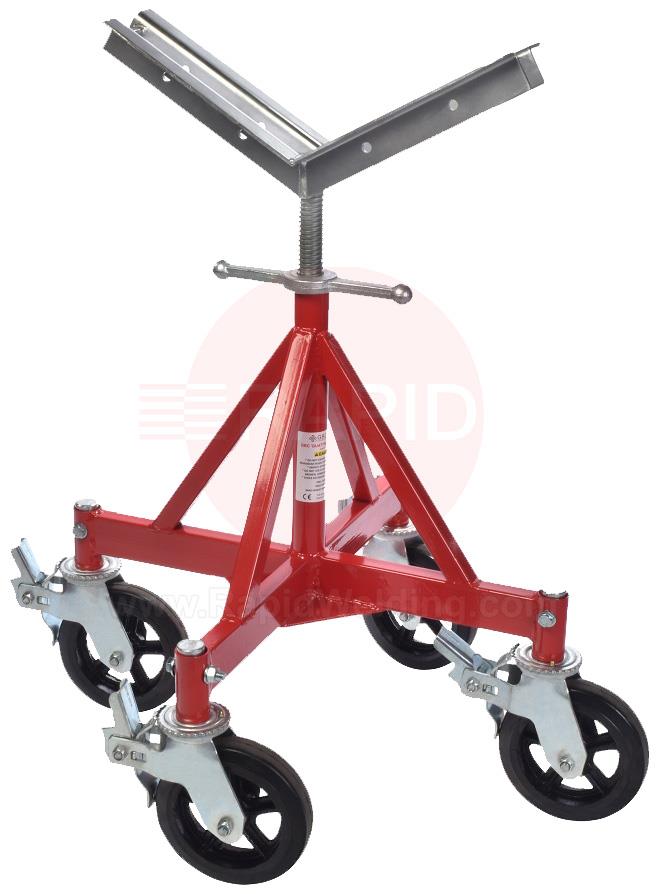

A V head is a fixed cradle. It centres round pipe and stops it rolling, so it is the usual choice for fit-up, tacking and any job where the pipe must stay put. A large V head also suits bigger diameters that a standard head would not seat properly.

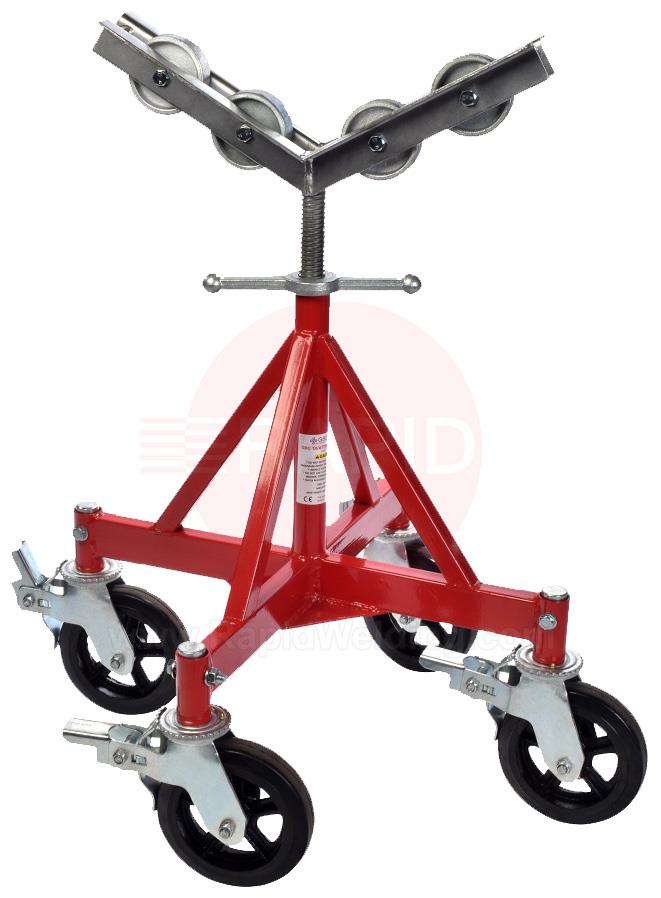

Roller or wheel heads are for turning the pipe, for example to weld in sections without moving the stand. A pipe that rolls at the slightest touch is easy to knock out of alignment, so many welders position and tack in a V head and only use rollers once the joint is secure.

How do I set up a pipe jack stand so it stays stable?icon-minus-redicon-plus-red

Use a solid, level surface that will carry the load, avoid slopes, dirt and gravel, and make sure every foot of the stand sits firmly on the floor. Support a pipe with at least two stands of the same height, spaced so the load is shared evenly, and think about the pipe length, diameter and weight when deciding how many you need.

Set the height before the pipe goes on, never adjust or move a loaded stand, lower the pipe gently rather than dropping it, and centre it on the head. Keep hands out from between the pipe and the head, and never let anyone stand under a supported load. Follow the maker's instructions and your risk assessment.

Why should I use stainless or non-metallic wheels and covers for stainless pipe?icon-minus-redicon-plus-red

Contact with carbon steel can leave iron particles on stainless steel. Those particles can later show as rust spots and weaken the corrosion resistance you chose stainless for. Stainless fabrication guidance says tools and handling equipment for stainless should be kept separate from carbon steel use, and that tooling and work surfaces should be cleaned before stainless goes on them.

Wheels and covers made of stainless steel or a suitable non-metallic material keep the pipe from touching bare carbon steel on the head. Dedicate them to stainless work, keep them clean, and do not reuse wheels that have been used on carbon steel.

Can welding current damage wheels and ball transfers?icon-minus-redicon-plus-red

It can. Welding current that finds an unintended path back to the machine can pass through bearings, wheels and ball transfers, which can pit or damage them. HSE says stray currents can be comparable to the welding current, and are more likely when the return clamp is on rusty or dirty metal.

So clamp the return lead directly to the workpiece, on clean bare metal and as close to the weld as possible, rather than relying on the stand, rails or other pipework to carry current. Keep the connection tight and clean, and inspect wheels and balls for pitting or roughness. Follow your welding equipment instructions and risk assessment.
