Large Vee Head Jacks FAQs

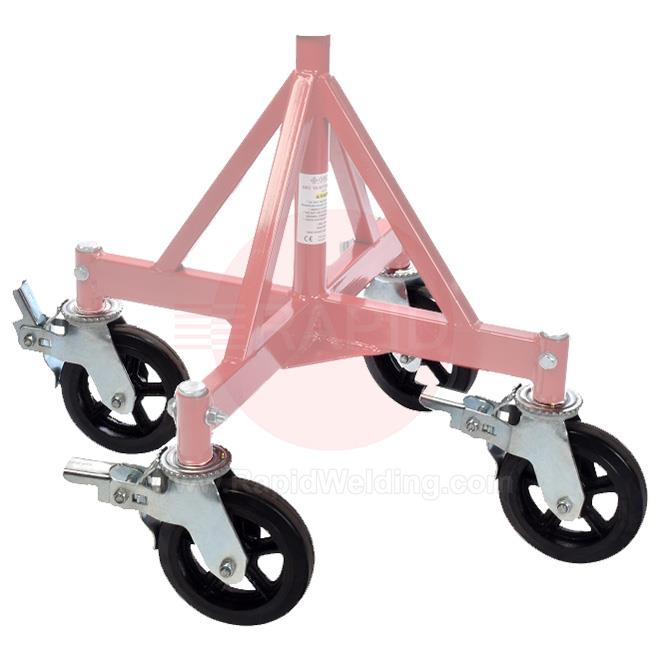

Heads, wheel kits, ball transfers and hold-downs that adapt a heavy-duty pipe jack stand to the job in hand.
When should I use a large V head rather than a roller or wheel head?

A V head is a fixed cradle. It centres round pipe and stops it rolling, so it is the usual choice for fit-up, tacking and any job where the pipe must stay put. A large V head also suits bigger diameters that a standard head would not seat properly.
Roller or wheel heads are for turning the pipe, for example to weld in sections without moving the stand. A pipe that rolls at the slightest touch is easy to knock out of alignment, so many welders position and tack in a V head and only use rollers once the joint is secure.
Why should I use stainless or non-metallic wheels and covers for stainless pipe?

Contact with carbon steel can leave iron particles on stainless steel. Those particles can later show as rust spots and weaken the corrosion resistance you chose stainless for. Stainless fabrication guidance says tools and handling equipment for stainless should be kept separate from carbon steel use, and that tooling and work surfaces should be cleaned before stainless goes on them.
Wheels and covers made of stainless steel or a suitable non-metallic material keep the pipe from touching bare carbon steel on the head. Dedicate them to stainless work, keep them clean, and do not reuse wheels that have been used on carbon steel.
Can welding current damage wheels and ball transfers?

It can. Welding current that finds an unintended path back to the machine can pass through bearings, wheels and ball transfers, which can pit or damage them. HSE says stray currents can be comparable to the welding current, and are more likely when the return clamp is on rusty or dirty metal.
So clamp the return lead directly to the workpiece, on clean bare metal and as close to the weld as possible, rather than relying on the stand, rails or other pipework to carry current. Keep the connection tight and clean, and inspect wheels and balls for pitting or roughness. Follow your welding equipment instructions and risk assessment.
What are ball transfer heads for, and when should I avoid them?

A ball transfer unit is a housing holding a load ball on smaller bearing balls, so the load ball turns in any direction. On a pipe stand that lets a pipe slide or turn freely, which is handy for moving a length through or lining up a joint before it is fixed.
Because the pipe moves so easily they are a poor choice for tacking or any time it must stay steady, so move it into a V head or use a hold-down once it is placed. Felt rings help keep dirt out of the housing, so keep the units clean. Check the maker's data for the rated load and any limit on how the unit may be mounted.
