    Rapid Ref : CK-525PCSF-BSP  Mfr Ref : 525PCSF

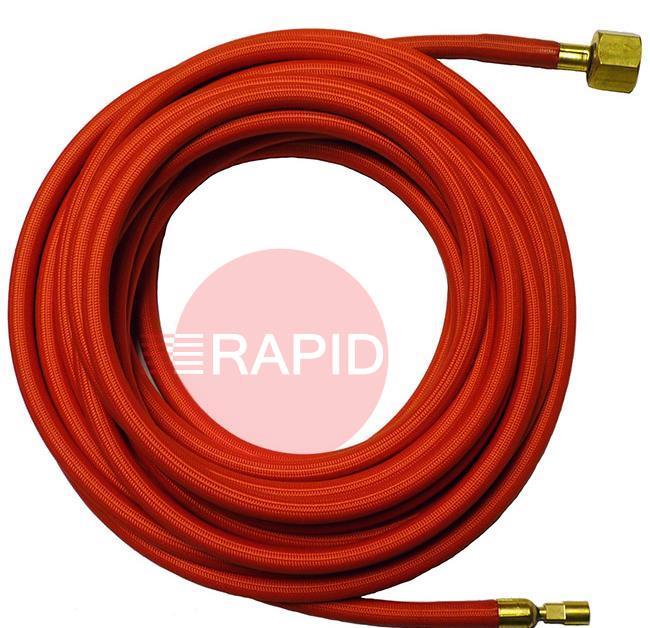

    CK 7.6m (25ft) Power Cable Superflex, BSP Fitting
    525PCSF CK-525PCSF-BSP

    £136.61  EX VAT
    SSP Suggested Selling Price = £273.20  YOU SAVE £136.59
     Buy in 3 easy interest free payments of £45.54† with

    CK510 Torch Parts FAQs

    Spares for a water-cooled TIG torch: the front-end parts, back caps and hoses, how to tell what is worn and how to order the right part.

    How do I check water hoses for leaks, and why does it matter?icon-minus-redicon-plus-red

    Before striking an arc, run the cooler and look and feel along the hoses and at every connection for drips, bulging, thinning walls, kinks or cracks. One maker's manual says to check all coolant connections for tightness and leaks at every start-up, and never to operate a water-cooled torch without coolant. A leak can also let coolant reach the floor and equipment, which adds an electric shock risk.

    The insulation on welding torches and cables should be undamaged, equipment should be checked before use, and unserviceable equipment should be withdrawn and marked as not for use. Do not tape over a leak as a repair.

    How do I match the collet and collet body to my tungsten electrode?icon-minus-redicon-plus-red

    Torch makers list collets and collet bodies by tungsten diameter and by torch series, so you need both pieces of information. Check the diameter of the tungsten you actually use, then check the torch series from the torch manual, the markings on the body, or the old part if it carries a size marking.

    A collet that is the wrong size will not clamp the electrode evenly, which causes poor current transfer, overheating and a tungsten that slips. Parts that look alike across torch series are often not interchangeable, because thread patterns differ, so confirm the match before ordering rather than relying on appearance.

    How do I tell a worn collet, collet body, cup or back cap O-ring?icon-minus-redicon-plus-red

    A maker's troubleshooting guide links short collet life and excessive electrode consumption to heat inside the torch, and says an ordinary collet can split, twist or jam and should be replaced. A collet or collet body that looks discoloured, distorted or pitted, or that no longer grips the tungsten firmly, is due for replacement. A cup that cracks or shatters in use should also be replaced.

    On the back cap, look for a cracked, flattened or dried-out O-ring, because that ring seals the rear of the torch and a damaged one can leak gas. Do not run the torch above its rating, because overheating wears these parts faster.

    When do I need a water-cooled torch rather than an air-cooled one?icon-minus-redicon-plus-red

    Water-cooled torches are generally chosen for higher current and long, continuous welding, because the circulating coolant removes heat that an air-cooled torch cannot shed as easily. A maker's troubleshooting guide says not to operate a torch beyond its rated capacity and to use a water-cooled model if heat is shortening torch head life. Air-cooled torches are simpler and suit lighter or intermittent work.

    The cut-off depends on the maker, the torch rating and the duty cycle, so check the rating on the torch data plate against the current you will actually use. A water-cooled torch also needs a cooling unit and extra hoses, so allow for the extra equipment and its upkeep.
