    Rapid Ref : CK-8CB2

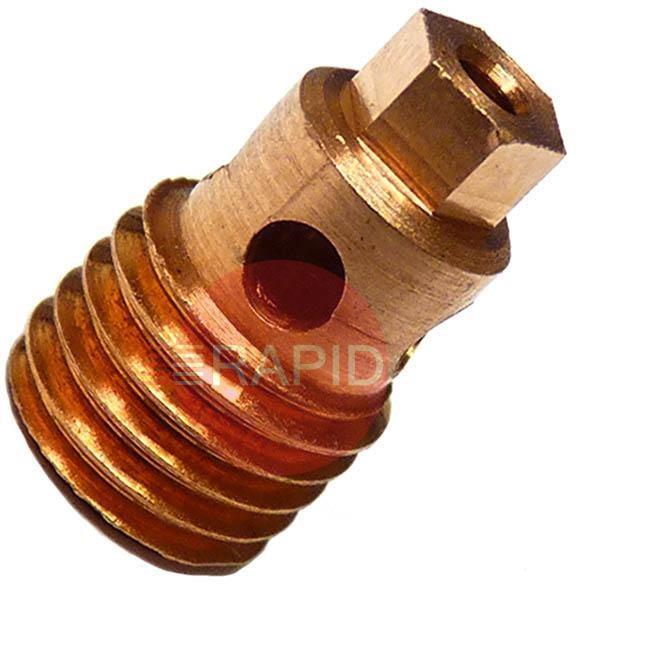

    CK Collet Body 8 Series
    CK-8CB2

    Select Option
    Prices From £2.18 ex VAT

    Collet Body, Standard, 8 Series, Torch Head Accessories.

    CK 8 Series Standard Parts FAQs

    Plain answers on identifying, choosing and looking after the standard collets, collet bodies, cups and heat shields for a compact TIG torch.

    How do I know these are the right standard parts for my compact torch?icon-minus-redicon-plus-red

    Start with the torch, not the part. Torch heads come in families, and the manual or parts list for your torch shows which collets, collet bodies and cups belong to it. A compact torch may even accept more than one family of parts, so you cannot assume.

    Look at the torch manual, the parts list or any markings on the old collet body, cup and heat shield. Compare the old parts side by side with the replacements, checking thread, length and the size of the collet and collet body. Part numbers from different suppliers are cross-referenced in different ways, so confirm against the manual rather than relying on one number. If you are unsure, our team can help you match them.

    What shielding gas should I use with a standard torch setup?icon-minus-redicon-plus-red

    For most TIG work, argon is the usual choice. Argon is the most commonly used shielding gas, and TIG normally uses pure argon because carbon dioxide promotes tungsten oxide formation, which wears the electrode and contaminates the weld.

    Some jobs add hydrogen or helium to the argon. Hydrogen can give cleaner welds but carries a cracking risk in carbon steels, and helium raises the arc temperature but makes starting harder, so it depends on the metal and the process. Follow the welding procedure and the equipment maker's instructions. The type of cup and collet body does not change which gas is right, only how it reaches the weld. Check the cylinder label and keep hoses and fittings free of leaks.

    How do I avoid contaminating the tungsten?icon-minus-redicon-plus-red

    Contamination usually happens when the tungsten touches the work or the filler rod, or when air reaches the hot electrode. If the electrode sticks to the workpiece it can leave a tungsten inclusion in the weld, and a lift-arc start, which makes the short circuit at a very low current, reduces the risk.

    Other common causes are dipping into the puddle, too much electrode extension and draughts or poor shielding. If the tip is contaminated, remove the affected portion and prepare it again. Post-flow lets the tip cool under gas; the right time depends on the machine, current and metal, so follow your manual. Check for gas leaks, and inspect cracked cups or worn parts that could let air in.

    What safety points apply when changing these parts?icon-minus-redicon-plus-red

    Isolate the welding power source before you change the tungsten, collet, cup or any other torch part, and follow the equipment maker's instructions. The head and cup can stay hot for some time and can burn you, so let them cool first.

    Welding radiation can burn the front of the eye (arc eye), with pain and redness a few hours afterwards, and skin can be reddened like sunburn. Ozone is a risk when TIG welding stainless steel and aluminium. Your risk assessment should cover eye and skin protection and local exhaust ventilation or respiratory protection. Replace cracked cups rather than continuing to use them.
