    Rapid Ref : 108040-SET

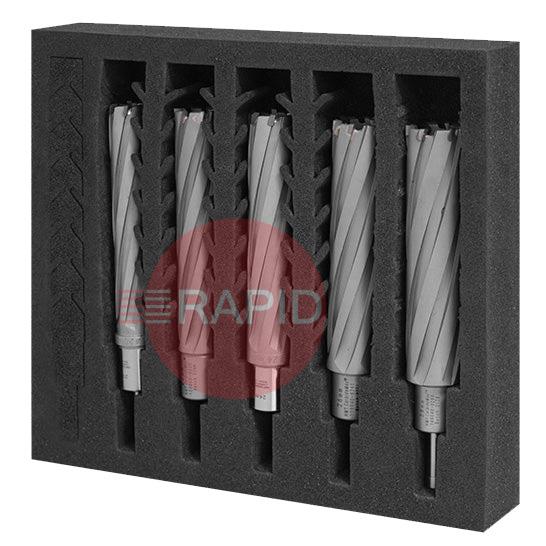

    HMT CarbideMax 110 TCT Cutter InsertFoam 5 Piece Set (14, 18, 22, 24, 26mm + 2 Pilots)
    108040-SET

    Click here to see what's included

    £531.63  EX VAT
    SSP Suggested Selling Price = £625.45  YOU SAVE £93.82
     Buy in 3 easy interest free payments of £177.21† with

    HMT CarbideMax TCT Broach Cutters are optimised to use the toughest steels. This Broach Cutter range is tipped with brazed cutting teeth of the highest quality Tungsten Carbide. These properties make it ideal for use in tooling ranges on even the toughest steels. HMT’s range of Tungsten Carbide Broach Cutters are extremely resistant to abrasion and can also withstand higher temperatures than standard high-speed steel (HSS) tools.

    This set offers incredible performance on the most difficult jobs. The CarbideMax TCT Broach Cutters feature an elaborate cutting geometry, resulting in faster, quieter, easier drilling and chatter-free performance. Furthermore, because the teeth of the cutter are doing all of the hard work, less strain is put on the wall of the cutter. Therefore, a thinner wall thickness is required, meaning less material is removed, resulting in a substantially faster cut.

    Product Details

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    HMT CarbideMAX TCT 110 Cutters FAQs

    Straight answers to the questions people ask most when choosing and using deep carbide-tipped annular cutters.

    What is a deep carbide-tipped annular cutter?icon-minus-redicon-plus-red

    It is a hollow cutter with tungsten carbide teeth that removes a ring of metal and leaves a solid slug. Deep versions are made for thick sections and stacked plate that a shorter cutter cannot cut through in one pass.

    The carbide teeth stay sharp far longer than high speed steel, but they are more brittle, so they need a rigid, well-gripped machine. Each cutter has a maximum depth of cut. Check this on the cutter and in the maker's literature, and make sure it is greater than the thickness of your material.

    What machine do I need to run a deep carbide cutter?icon-minus-redicon-plus-red

    Use a rigid magnetic drill, or similar machine designed for annular cutters, with a firm magnet and a shank type that matches the cutter. Annular cutters should not be run in a handheld drill. Deep cutters are long and put more load on the machine, so check that its rated capacity covers the cutter diameter and depth, and that it has enough stroke.

    A worn or underpowered machine may vibrate, which chips carbide teeth. Always check the data plate and manual for your own machine, and use the safety strap or chain.

    How do I choose the right pilot pin?icon-minus-redicon-plus-red

    Pilot pins come in versions for different diameter bands, and some are one-piece and some two-piece for larger sizes. They must match the series and the diameter of the cutter.

    The pin has to be long enough to reach through the deep cutter and eject the slug. Use the pin specified for the cutter, and replace worn pins promptly.

    How do I get a good result in thick steel?icon-minus-redicon-plus-red

    Make sure the magnet is gripping on clean, flat steel, secure the machine with a strap, and apply plenty of cutting fluid. Start the cut gently, then feed steadily with even pressure and avoid stopping with the cutter in the cut.

    For very deep holes, ease the cutter back now and then to clear swarf if the maker advises.
