    Rapid Ref : 506040-SET2

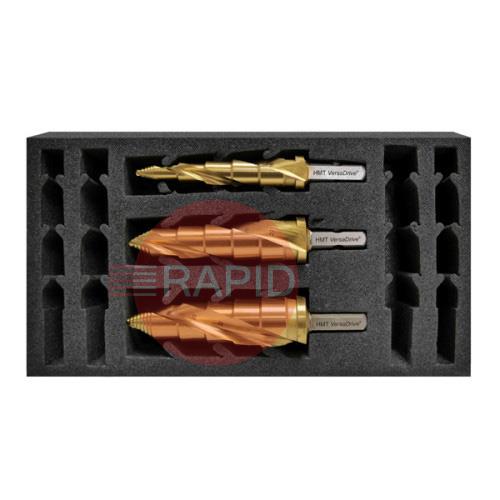

    HMT VersaDrive TurboTip Impacta Step Cutter Insert Foam 4 Piece Set (8 - 32mm)
    506040-SET2

    £447.78  EX VAT
    SSP Suggested Selling Price = £526.80  YOU SAVE £79.02
     Buy in 3 easy interest free payments of £149.26† with

    The new Impact-rated TurboTip ImpactaStep cutters are a unique combination drill bit. The innovative TurboTip stepped design now allows for fast pilot drilling with low feed pressure with superb accuracy and hole finish.

    • 5 heavy-duty drill bits in one tool
    • Drill new & enlarge existing holes in metal up to 1/2" thick
    • Safety collar prevents injury & damage when using the largest step
    • Upgraded spiral-flute design for increased performance and swarf clearance
    • Heavy-duty hex shank design for secure non-slip operation
    • Industrial grade Titanium Nitride coating reduces heat buildup and burn-out
    • Impact-rated due to dual hardening process - allows up to 15X faster speed than traditional methods
    • Use on Impact to prevent dangerous kickback

    HMT Step Drills FAQs

    Answers to common questions about choosing and using step drills for clean, accurate holes in thin sheet material.

    What is a step drill best used for?icon-minus-redicon-plus-red

    A step drill is a cone-shaped bit with a series of stepped diameters, and each step cuts one set hole size. It is intended for accurate, repeatable holes in thin material such as sheet steel, aluminium and plastic, for example in electrical enclosures, panels and vehicle bodywork. One bit covers several hole sizes, so you change tools less often.

    It is not meant for thick plate or deep holes, because each step only cuts a short length of material. For thicker material a twist drill is the usual choice.

    How does a step drill compare with a twist drill on sheet metal?icon-minus-redicon-plus-red

    On thin sheet, a twist drill can grab, wander and leave a rough or slightly out-of-round hole with a burr around the edge. A step drill cuts one diameter at a time, so the hole is usually round and cylindrical, and each step tends to clean up the edge left by the step before it.

    A twist drill is still the better choice for thicker material, for deep holes and for sizes that fall between the steps. Choose according to the thickness and material you drill most often.

    How thick a material can a step drill cut?icon-minus-redicon-plus-red

    Step drills are designed for thin material, and makers state a maximum thickness for each bit or set. The figure varies widely: general-purpose bits are often rated for only a few millimetres of sheet, and some cobalt bits are rated for sheet steel gauges around 2 to 3.5 mm, with stainless steel often rated lower.

    The limit depends on the bit, the material and the power of the drill. Thicker plate is better drilled with a twist drill, often starting with a small pilot hole. Always check the limit stated by the maker for your particular bit.

    What speed and pressure should I use with a step drill?icon-minus-redicon-plus-red

    Speed depends on the material. Makers and tool guides generally advise a low speed for stainless steel and other hard metals, and a higher speed for mild steel, with plastics usually run faster but watched for heat. Slow down as the bit reaches the larger steps. Use light, steady pressure and let the cutting edges do the work; excessive force overheats the bit and distorts the hole.

    A variable-speed drill makes this much easier. Exact speeds differ between makers and materials, so use the figures supplied with the bit as your starting point.
