    Rapid Ref : DSFXX

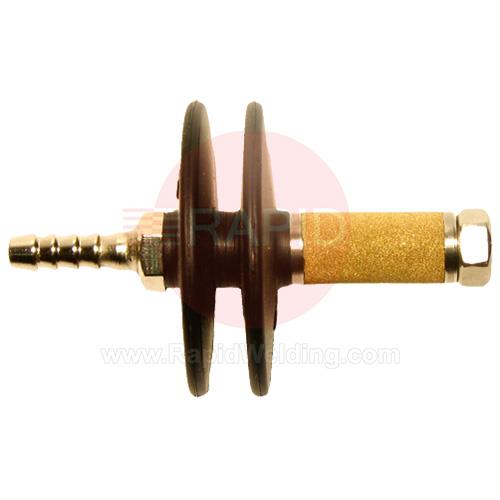

    Double Seal Gas Finger, for 16 - 38mm Pipe I.D.
    DSFXX

    Select Option
    Prices From £32.98 ex VAT

    The Silicon Double Seal purging system has been further designed to reduce both inert gas use and purging time. These systems use silicon discs to form an airtight seal, reducing purge times and gas usage for maximum efficiency. The Gas Finger system is designed for small pipes and tubes from 16 – 38mm i/d.

    • Typical purge times of less than 2 minutes (e.g. an 8” Pipe will purge to below 0.01% Oxygen in less than 2 minutes)
    • High-quality silicon sealing discs that prevent them from tilting or falling over inside the pipe
    • Guaranteed gas-tight seal
    • UV and temperature resistance up to 330ºc continuously or 450ºc for short periods
    • Suitable for purging pipes, elbows and fittings
    • The silicon seal units can be separated and used as a gas finger and pipe stopper, respectively

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Double Seal Purge System FAQs

    Answers on setting up, sizing, venting and safely using a twin-disc purge system inside pipe and tube.

    Why does a double seal system use less gas than flooding the whole pipe?icon-minus-redicon-plus-red

    Because only the short length between the two seals is purged, not the whole bore. The HSE notes that the quantity of gas released can be significantly less with localised purging techniques such as damming than when an entire pipe or vessel is flooded.

    A smaller purged volume generally means a faster purge and less gas to vent afterwards. It also means less gas to be released if something goes wrong, which is a safety benefit as well as a practical one.

    Can I rely on the seals to stop purge gas escaping into the pipe?icon-minus-redicon-plus-red

    No. The HSE states that the seal on dams and bladders should not be relied on to prevent gas leakage, and that the pipe or fabrication may still become a confined space. Gas can pass the discs, especially if the fit is poor or the bore is irregular.

    That means you must plan for it: vent spare gas safely, never put your head or body into pipework that has held inert gas, and carry out a risk assessment before the work starts. If entry into a space that may contain purge gas cannot be avoided, a safe system of work and a calibrated oxygen meter are essential.

    Does a short purge time mean I can skip checking the oxygen level?icon-minus-redicon-plus-red

    No. Makers often quote short purge times, but the actual time depends on pipe size, gas flow and how well the discs seal on your job. Time alone does not prove the oxygen has dropped far enough.

    The most reliable way to know is to measure the oxygen at the vent or in the purged section with a suitably calibrated oxygen meter and weld only when it reads at or below the level your welding procedure requires. Trade guidance also stresses that allowing plenty of time does not guarantee the oxygen has been removed, and that a device capable of accurate and reliable measurement is the best option.

    Why should I introduce the purge gas slowly?icon-minus-redicon-plus-red

    A gentle flow lets the gas push the air out ahead of it instead of churning the two together. Trade guidance on weld purging advises that the inert gas should enter slowly, with the vent at the opposite end or highest point so air can escape as it is displaced.

    A flow that is too high tends to cause turbulence, which can mix air back into the purge gas and slow down reaching a low oxygen reading. Start low, let the oxygen reading fall, and do not set a flow that blows the discs out of position or pressurises the section. The right flow depends on the pipe size and the maker's guidance.
