    Rapid Ref : 0311-0231

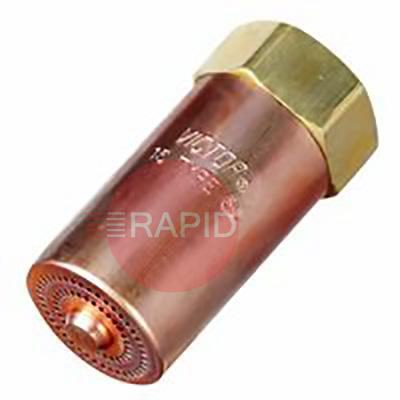

    GCE Type 55 Heat Tip Size 15
    0311-0231

    £54.07  EX VAT
    SSP Suggested Selling Price = £67.59  YOU SAVE £13.52
     Buy in 3 easy interest free payments of £18.02† with

    Related Items

    ESAB GCE Gas Torch Parts FAQs

    Replacement nozzles, heating tips, mixers and elbows for oxy-fuel torches: how to identify the right part and keep the torch working safely.

    How do I choose the right size of cutting nozzle?icon-minus-redicon-plus-red

    The diameter of the cutting oxygen hole is chosen according to the thickness of the material. Thicker steel needs a larger cutting orifice and more preheat, so the nozzle size has to suit the job.

    Nozzle size numbers are not standard between makers, so do not rely on the number alone. Use the chart supplied with your torch, which links nozzle size to material thickness and gives the gas pressures to set. Check the maker's markings on the old nozzle, and use the same fuel gas the nozzle was designed for. If you are unsure which part you have, our team can help you identify it.

    Why are some nozzles one-piece and others two-piece?icon-minus-redicon-plus-red

    The type of nozzle depends on the fuel gas, on whether the torch is used by hand or on a machine, and on the maker's preference. Nozzles for acetylene are usually one-piece, while machine cutting may use two-piece designs.

    In practice, a two-piece nozzle has an inner and outer part that fit together, and the shape of the fitting affects how the gases reach the flame. You cannot assume that different designs will swap over. Look at how the old nozzle seats in the torch head, check the manual, and replace like with like unless the torch maker says otherwise.

    What is a heating tip used for?icon-minus-redicon-plus-red

    Oxy-fuel equipment is used for welding, cutting, heating and straightening. A heating tip is a nozzle designed to give broad heat rather than a cutting jet, so it is used for jobs such as preheating, bending, freeing seized parts and straightening.

    Multi-flame or rosebud-style heads spread heat over a wider area, while single-flame tips give a more concentrated flame. The right tip depends on the fuel gas, the size of the job and your torch, so use the maker's chart. Heating tips do not replace cutting nozzles, and never use a heating tip to cut.

    How do I test the torch and nozzle connections for leaks?icon-minus-redicon-plus-red

    Use a proprietary leak detecting spray or solution made for oxy/fuel systems, and do not use soapy water or any solution containing grease or oil on oxygen systems. Never look for a gas leak with a naked flame.

    Repair or replace any leaking component immediately. Check the nozzle nut and seating, the torch valves and every hose connection, and do this regularly. Equipment used in tough conditions normally needs more frequent checks. If a leak will not stop after tightening a fitting properly, take that equipment out of use and have it repaired or replaced.
