Rapid Ref : 308010

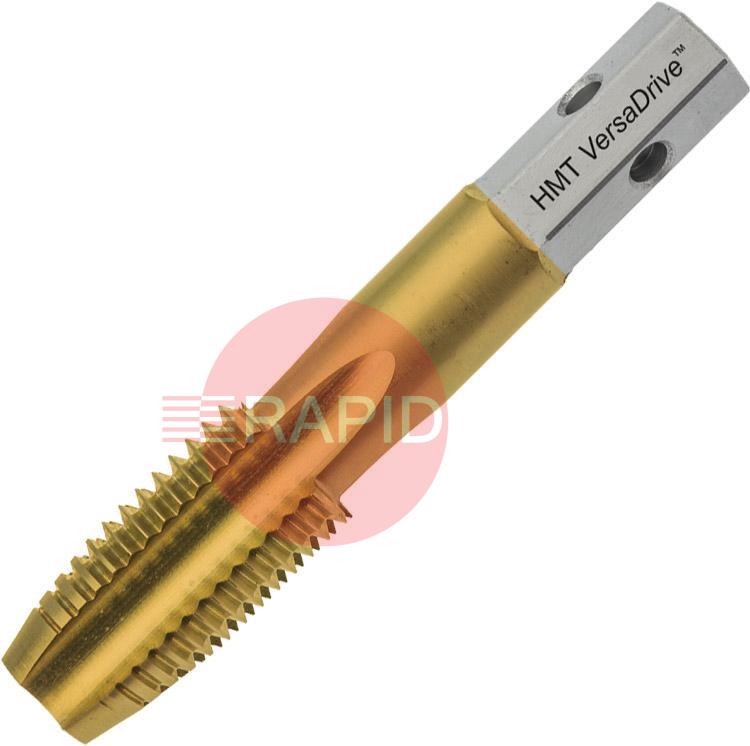

HMT VersaDrive ImpactaTap - Metric Coarse Size
308010

Select Option
Prices From £25.20 ex VAT

HMT VersaDrive ImpactaTaps

FIFTEEN TIMES FASTER THAN HAND TAPPING.

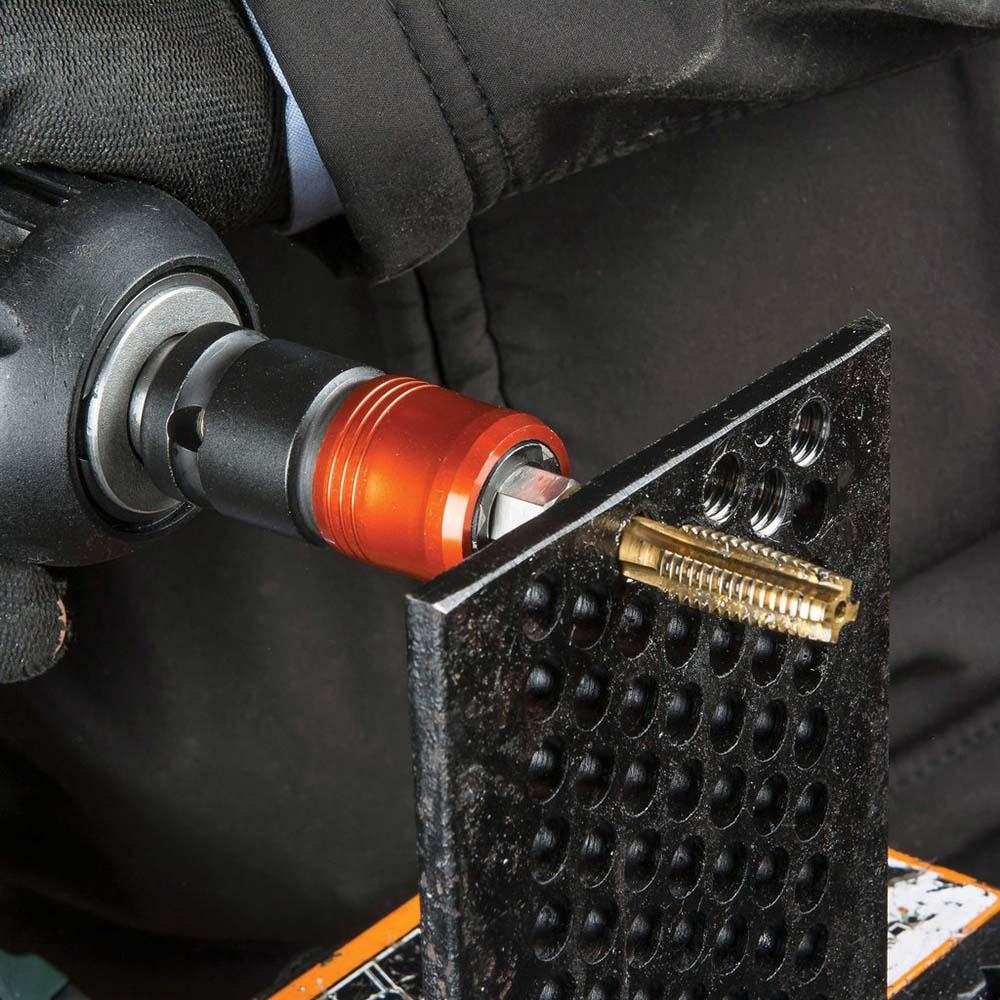

VersaDrive ImpactaTaps perform best when adapted with an Impact wrench for Tapping through holes. However, they can also be adapted for use in a reversible Magnet Drill or even used with any standard Hand Tap wrench.

Fast Tapping with Minimal Kickback; Specially hardened for Impact Wrench use. Chipbreaker action is for Automatic chip clearance when Impact Tapping. Unique Dual-Point Starting Angle for easy alignment and fast cut. High-Grade Tool Steel with Ground Flutes for high accuracy & long life. GoldMax low-friction Titanium coating to stop heat burnout. High Strength, Non-slip Shank Design.

Product Details

Brochures, Manuals & Videos

HMT Taps FAQs

Answers to common questions about choosing and using taps and thread chasers for cutting and restoring internal threads.

Should I use a spiral flute tap or a spiral point tap?icon-minus-redicon-plus-red

The choice depends on where the chips can go. A spiral point tap pushes chips ahead of it, so it suits through holes where chips can leave the far side. A spiral flute tap draws chips back out along its flutes, so it suits blind holes.

Using a spiral point tap in a blind hole can pack chips at the bottom until the torque rises sharply and the tap breaks. Spiral flute taps are generally not recommended for very hard materials, so check the maker's guidance for the material you are tapping.

Why do taps break, and how can I avoid it?icon-minus-redicon-plus-red

A tap is hard and brittle, and it rarely breaks without warning. Common causes are a hole drilled too small, chips packing in the flutes, the wrong tap style for a blind or through hole, hitting the bottom of a blind hole, side loading from a tap that is not square, and too little lubricant.

Check the tap drill size, keep the tap square, use suitable cutting fluid and clear the chips by backing off regularly. Stop if the tap suddenly becomes harder to turn, as forcing it is how most taps snap.

How do I choose the right drill size before tapping?icon-minus-redicon-plus-red

A tapped hole starts with a drilled hole, called the tap drill, which is smaller than the thread's nominal size so that metal remains to form the thread. For metric coarse threads a common workshop rule is the nominal diameter minus the pitch, and a finer pitch therefore needs a larger drill than a coarse pitch of the same diameter.

The rule is only a quick estimate, so use a tap drill chart for your thread and the maker's guidance, especially for fine, inch, pipe or special threads. A hole that is too small overloads the tap, while one that is too large leaves a shallow thread with less holding strength. Drill square and remove any burr at the entry.

What are taper, plug and bottoming taps?icon-minus-redicon-plus-red

These describe how long the lead-in chamfer is on a hand tap. A taper tap has the longest chamfer, which spreads the cutting load and makes it the easiest to start straight. A plug tap has a shorter chamfer and is the general-purpose choice for through holes and blind holes with room at the bottom.

A bottoming tap has only a very short chamfer, so it can cut a thread close to the bottom of a blind hole, but it does not start as freely and is usually used to finish a hole already started with a taper or plug tap. Chamfer lengths vary between makers, so check the tap's specification.
