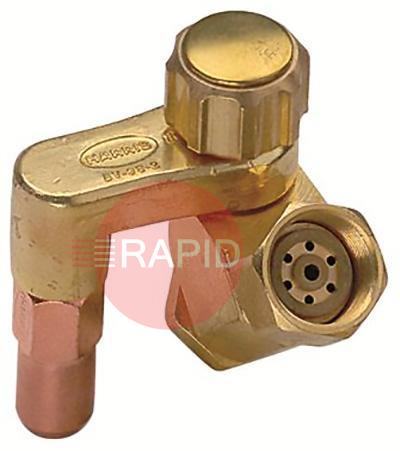

To be used with natural gas or propane only. Increases speed efficiency and quality of bevel cuts. 6290 cutting tips can be used with this product.
Straight answers on choosing, setting up and looking after machine-mounted oxy-fuel cutting torches, with the safety points that matter most.
A machine cutting torch is a barrel-style torch that is clamped into a carriage, profile cutter, pipe-cutting rig or similar mechanised equipment instead of being held by an operator. The machine moves the torch at a steady speed along the line of cut, which is why it is used for long straight cuts, repeat shapes and bevels where an even, repeatable edge matters.The cutting process is the same as with a hand torch: a preheat flame brings the steel up to temperature and a jet of cutting oxygen burns through it. The differences are mostly in the build, such as a longer barrel to reach the work, a mounting point for the machine, and often a rack for height adjustment. Check the machine's mounting diameter before choosing.
A rack is a toothed bar on the barrel that engages a pinion in the machine's torch holder, so that the torch can be raised or lowered by turning a knob. This lets you set the distance between the nozzle and the plate without loosening the clamp and without disturbing the angle of the torch.It is useful because nozzle height has a direct effect on cut quality: the preheat flame needs to be at the right distance from the plate for the cut to start cleanly and stay square. Torches without a rack are normally positioned by sliding them in the clamp, which is harder to adjust finely. Make sure the rack and the holder are compatible and that the clamp is tight before cutting.
Tips are chosen mainly by the thickness of the material to be cut and by the fuel gas being used. The cutting oxygen bore is sized to suit the thickness, so a thicker plate needs a larger bore and more cutting oxygen. The tip type also depends on the fuel gas, on whether the work is manual or mechanised, and on the torch design, so a tip made for acetylene is not automatically right for propane.Standard tips have a parallel central bore with preheat ports around it, while high-speed tips are mainly used on mechanised equipment to exploit higher travel speeds. Use the tip chart from the torch or tip maker to match thickness, tip size and gas pressures, and do not guess.
Both work, and the choice depends on the job. Acetylene gives the hottest flame, so it starts a cut and pierces plate faster, and its focused flame suits thin plate and bevel cutting with little distortion. Propane has a lower flame temperature and is slower to pierce, but cutting speeds with comparable tips are similar, it often gives a smoother edge with less slag, and it tolerates more variation in nozzle height.The tip must be designed for the fuel gas you use, and the torch, hoses, regulators and arrestors must all be suitable for that gas. Ask your gas supplier or our team if you are unsure which suits your cutting thickness and equipment.
