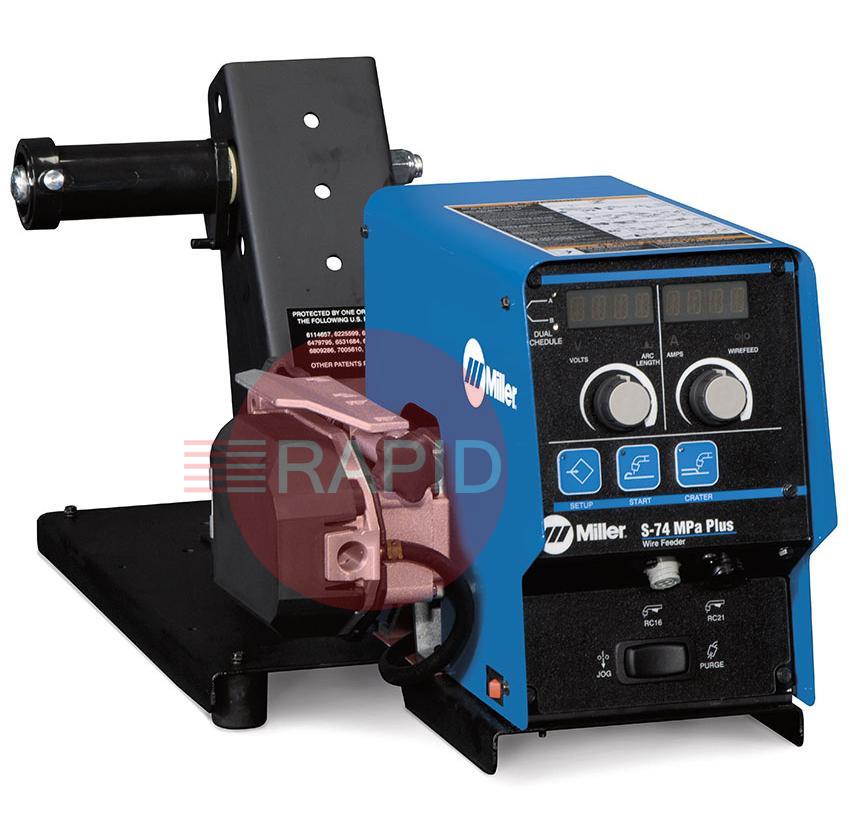

Miller S-74 MPa Wire Feeder is designed for synergic pulsed MIG welding and can support up to 4 welding programs for quick setup. This machine integrates with XMT MPa welders and works with Miller push-pull aluminium MIG guns. Features include remote voltage control, digital volt and wire feed speed meters, and a four-drive roll system for consistent wire feeding. Alumination technology enhances aluminium wire feeding, and Profile Pulse offers TIG-like weld appearance.
Specification
- Input Power: 24 VAC,10 A, 50/60 Hz
- Electrode Wire Diameter Capacity: 023–5/64 in (0.6–2.0 mm) .035–1/16 in (0.9–1.6 mm) Aluminum
- Wire Feed Speed: 50–780 IPM (1.3–19.8 m/min)
- Dimensions: H: 356 mm x W 318 mm x D 711 mm
- Net Weight: 26 kg
