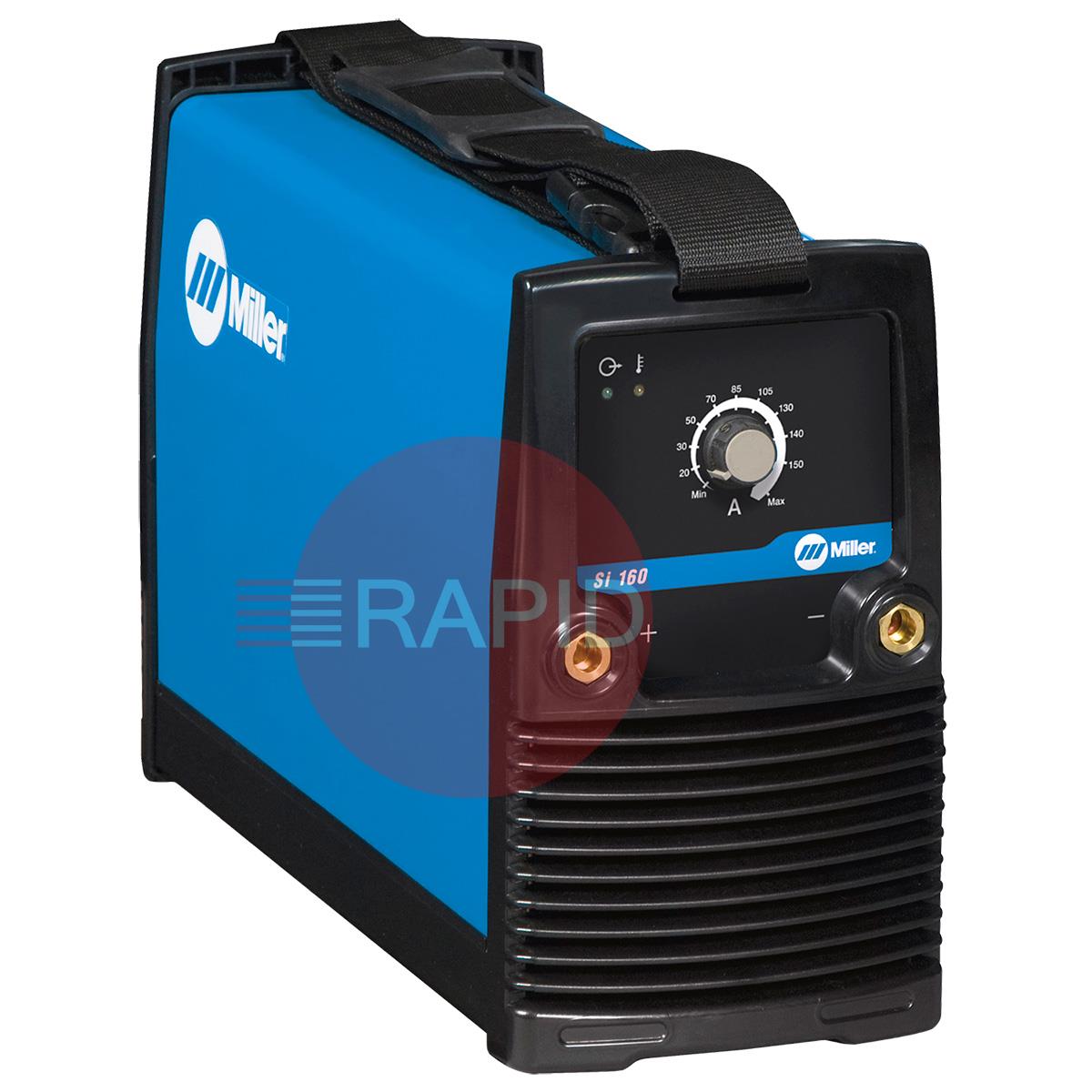

Portable in the shop or at the jobsite— at less than 6.2 kg (13.7 lb.), this Inverter-based, DC power source has a simple-to-use operator interface providing only the necessary controls in a compact machine and possess the best-in class stick arc characteristics for tough and demanding applications. Thanks to dual fan technology, the optimised power source cooling system enables the machine to operate at a lower temperature, increasing its performance and life cycle. Thermal overload protection with indicator light helps prevent machine damage if the duty cycle is exceeded or airflow is blocked. The VRD function is a simple design that reduces the open-circuit voltage to 20 volts when the welding power source is not in use. Preset Hot Start™ stick arc starts automatically increases the output amperage at the start of a weld should the start require it. Prevents the electrode from sticking and creating an inclusion.
Specifications
Input power: 230 V, 1-phase, 50/60 Hz
Amperage range: 15 – 150 A
Rated output: 100 A at 100% duty cycle / 150 A at 25% duty cycle
Max. open-circuit voltage: 85 V
Net weight: 5.2kg (11.5 lbs)
