    Rapid Ref : 790085030

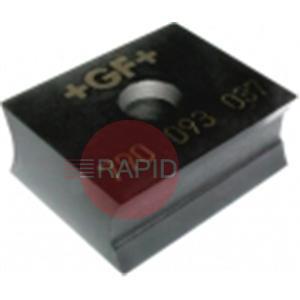

    Orbitalum MFW5-V / I-2 High Performance Multifunction Tool for Facing I-Seam / Bevelling V-Seam (for use with BRB 2)
    790085030

    £82.00  EX VAT
     Buy in 3 easy interest free payments of £27.33† with

    Multifunctional tool MFW for working on the pipe outer diameter. Suitable for use with BRB 2 with WH5-I and WH5-U-20° tool holder. Max wall thickness 6mm (0.236").

    For WH5-I Click Here
    For WH5-U-20° Click Here

    BRB 2 Tool Bits FAQs

    Answers on choosing, fitting and looking after the multifunction cutting tool bits used on a small tube bevelling machine.

    What bevel angle and land should the bit produce?icon-minus-redicon-plus-red

    The angle, land (root face) and gap depend on the joint design, material, thickness and welding process, and should be taken from your welding procedure or the relevant code. The bevel gives access to the whole joint, and smaller angles and gaps increase the risk of defects.

    Choose a bit that produces the form your procedure calls for, and measure the first prepared end before working through a batch.

    How should I change a tool bit safely?icon-minus-redicon-plus-red

    Make the machine safe before you start. The HSE says to ensure moving parts have stopped and to isolate electrical and other power supplies, and to lock off the machine if there is any chance the power could be switched back on. For an air-driven machine, disconnect the air line as well.

    Then follow the maker's instructions for removing and fitting the bit, using the correct tools and fixing screws. The HSE advises using the manufacturer's maintenance instructions as a guide, particularly for safety-critical features. Clean the seat before fitting, tighten fixings as specified, and turn the head by hand to check it moves freely before restarting.

    What protective equipment should I use when machining?icon-minus-redicon-plus-red

    Choose eye protection that suits the hazard. The HSE says it should give the right combination of protection against impact, dust, splash or molten metal for the task, and fit the user properly. Swarf and fragments can fly or bounce back, so your risk assessment should decide the type.

    The HSE also says PPE should be assessed as fit for purpose, maintained and stored properly, and backed by instruction and training. Near rotating tools, avoid gloves, loose or baggy clothing and jewellery including rings, and tie back long hair, because rotating parts can catch them. Handle used bits and swarf only when the machine has fully stopped, because edges stay sharp.

    How do I know when a tool bit is worn?icon-minus-redicon-plus-red

    Trade guidance on cutting tools lists the common warning signs: a poorer surface finish, higher cutting force or load, squealing or vibration, tube ends drifting out of size, visible wear or chipped edges, and a bit that wears out faster than usual.

    Replacing too late can scrap a tube end or break the cutter, while replacing too early wastes useful life. Look at the cutting edge under good light each time you change tube size or material.
