    Rapid Ref : RG-440  Mfr Ref : 92501144

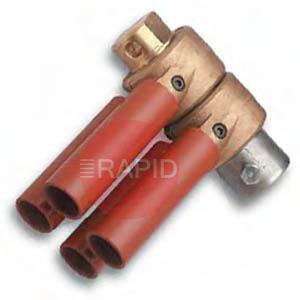

    Tweco Roto-Ground Heavy Duty Rotary Earth Clamp - 1500 Amp
    92501144 RG-440

    £850.37  EX VAT
    SSP Suggested Selling Price = £944.85  YOU SAVE £94.48
     Buy in 3 easy interest free payments of £283.46† with

    Tweco® Roto-Ground is a highly efficient device for grounding weldments while rotating on turning rolls or positioners. The 2" shaft shoulders up to a steel nut, which the user welds to his rotating work or fixture. Tweco Roto-Grounds have no brushes, springs or mercury. A simple tension-adjusting bolt provides maximum efficiency.

    Specification

    • Amperage Capacity: 1500A
    • Cable Capacity: 4 – 4/0
    • Number of Heads: 2
    • Shaft Stud: 1-3/8” NC
    • Length: 270mm (10-5/8”)

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Rotary Earth Clamps FAQs

    Answers on how rotary earth clamps work, how to choose one and how to keep the return path safe while the work turns.

    What is a rotary earth clamp and how does it work?icon-minus-redicon-plus-red

    A rotary earth clamp is a return clamp with a rotating joint between the part that grips the work and the part that takes the welding cable. The clamp turns with the workpiece, while the cable side stays still.

    This lets welding current pass across the rotating joint into the work, so you can weld a pipe, vessel or other round part as it turns on a positioner or rollers without the return cable wrapping up. Ratings and the types of cable connection vary between models, so check the product details for yours.

    Why not just use a standard clamp on a part that turns?icon-minus-redicon-plus-red

    A standard clamp has a fixed cable, so as the work rotates the cable winds around the part, twists and can be pulled off or damaged. Constant movement can also make the contact unreliable, and that causes an unstable arc.

    A rotary clamp lets the part turn while the cable stays put. It is not needed for work that stays still. Our team can help you choose one that suits your positioner or rollers.

    How do I choose the right current rating?icon-minus-redicon-plus-red

    Match the clamp to the highest welding current and duty cycle you will use, and leave some margin rather than running it at its limit. Welding cable and connectors must be insulated and thick enough to carry the current safely, and the clamp is part of that same path.

    Cable size depends on the machine's output, its duty cycle and the total length of the circuit. Look at the machine's rating plate and manual, and make sure the clamp's rating is shown on the product. Where the work will be heavy, repeated or long runs, choose the higher rating.

    How often should I check and maintain a rotary earth clamp?icon-minus-redicon-plus-red

    Check leads, connection devices and clamps at regular intervals for fitness for use, and repair or replace anything that is damaged or worn. For a rotary clamp that means looking at the cable connection, the insulation, the jaw or contact surface and the rotating joint.

    The joint should turn freely and without roughness or looseness. How often to inspect depends on how hard it is used, so base it on your own risk assessment and the maker's instructions. Never use a clamp with damaged insulation or a loose connection.
