    Rapid Ref : WCRG-2000  Mfr Ref : 92551120

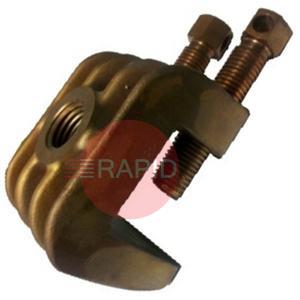

    Tweco Roto Work WCRG-2000 Ground Clamp - 2000 Amp (Fits RG-440/640)
    92551120 WCRG-2000

    £689.37  EX VAT
    SSP Suggested Selling Price = £765.97  YOU SAVE £76.60
     Buy in 3 easy interest free payments of £229.79† with

    Tweco Roto-Work Ground Clamps are designed primarily to work with the Tweco Roto-Ground Device. However, they may also be used for other high-amperage grounding applications. The Roto-Ground shaft screws into the tapped back of the Roto-Work Clamp. The clamp is quickly attached or moved from one rotating weldment or fixture to another without removing the Roto-Ground. Saves welding downtime.

    Roto-work clamps are made from a copper alloy. They come in 600, 1200 and 2000 ampere capacity. Number WCRG- 2000 has two tightening screws. Number WCRG-600 works only with No. RG-230 due to its smaller shaft size. Large tightening screws and ample contact surface area provide cool, efficient operation.

    Specification

    • Amperage Capacity: 2000A
    • Fits Roto-Ground: RG-440/640
    • Clamp contact: 12 sq inch
    • Throat height: 76.2mm (3")
    • Throat depth: 76.2mm (3")
    • Over-All Height: 171mm (6-3/4")
    • Over-All Width: 102mm (4")
    • Tapped For: 1-3/8" NC

    Rotary Earth Clamps FAQs

    Answers on how rotary earth clamps work, how to choose one and how to keep the return path safe while the work turns.

    Where should I fit the clamp on the workpiece?icon-minus-redicon-plus-red

    Connect the return as near to the welding arc as is practical. Guidance from TWI says the current return clamp should be as near to the welding arc as possible, and that extraneous conductive parts should not be used as part of the return circuit unless they are part of the workpiece itself.

    On a turning job that usually means clamping the rotary clamp to the work itself, or to a fixture that is part of it, rather than relying on the positioner or other equipment to carry the current.

    Why does welding current need to avoid bearings?icon-minus-redicon-plus-red

    Welding current will take any route back to the machine, including routes you did not intend. TWI lists wire ropes, slings and chains and bearings in motors among the unintended paths that welding current can use.

    Bearings in positioners and rollers are not designed to carry welding current, and arcing inside them can damage them. A rotary clamp gives the current a deliberate path across the rotating joint, so it does not need to cross the bearings. Check your positioner's manual for how the maker recommends connecting the return.

    How do I choose the right current rating?icon-minus-redicon-plus-red

    Match the clamp to the highest welding current and duty cycle you will use, and leave some margin rather than running it at its limit. Welding cable and connectors must be insulated and thick enough to carry the current safely, and the clamp is part of that same path.

    Cable size depends on the machine's output, its duty cycle and the total length of the circuit. Look at the machine's rating plate and manual, and make sure the clamp's rating is shown on the product. Where the work will be heavy, repeated or long runs, choose the higher rating.

    How often should I check and maintain a rotary earth clamp?icon-minus-redicon-plus-red

    Check leads, connection devices and clamps at regular intervals for fitness for use, and repair or replace anything that is damaged or worn. For a rotary clamp that means looking at the cable connection, the insulation, the jaw or contact surface and the rotating joint.

    The joint should turn freely and without roughness or looseness. How often to inspect depends on how hard it is used, so base it on your own risk assessment and the maker's instructions. Never use a clamp with damaged insulation or a loose connection.
