Rapid Ref : 1012016013

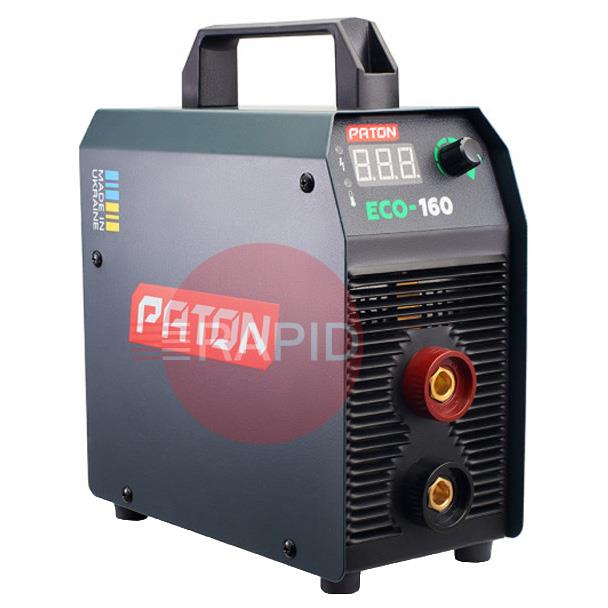

PATON ECO-160-C Inverter 160A Arc Welder Suitcase Package - 230v, 1ph
1012016013

Click here to see what's included
£173.33  EX VAT
 Buy in 3 easy interest free payments of £57.78† with

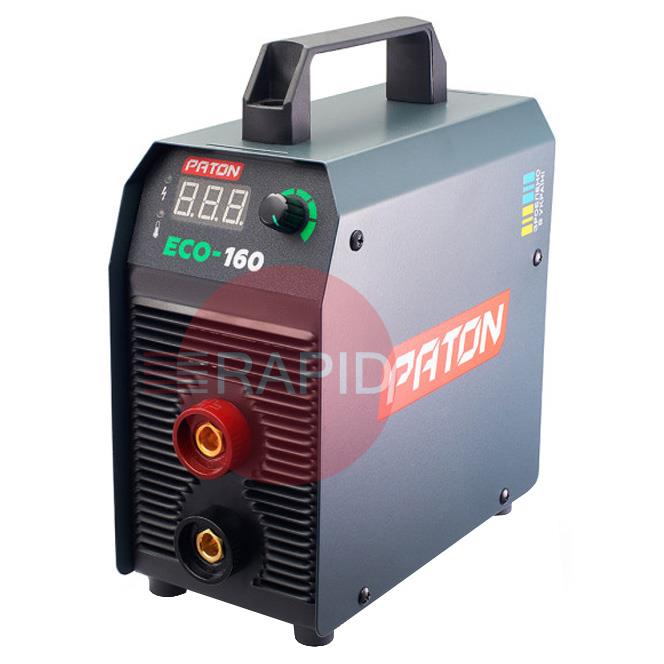

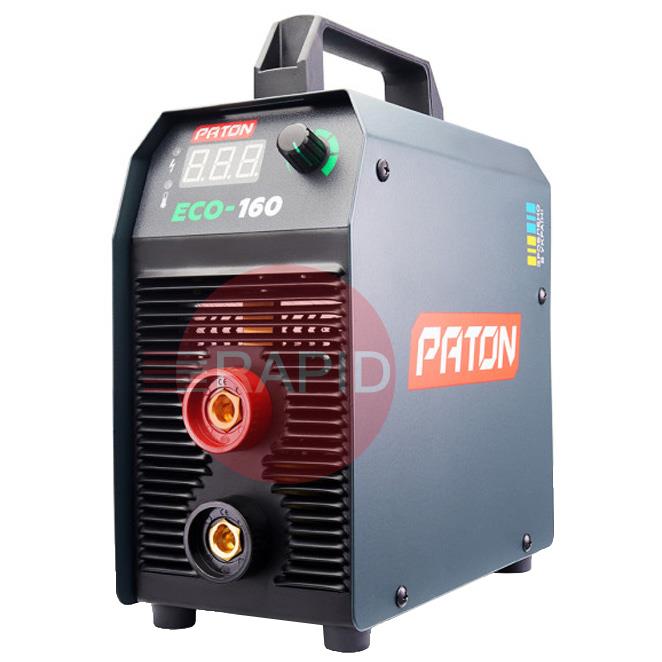

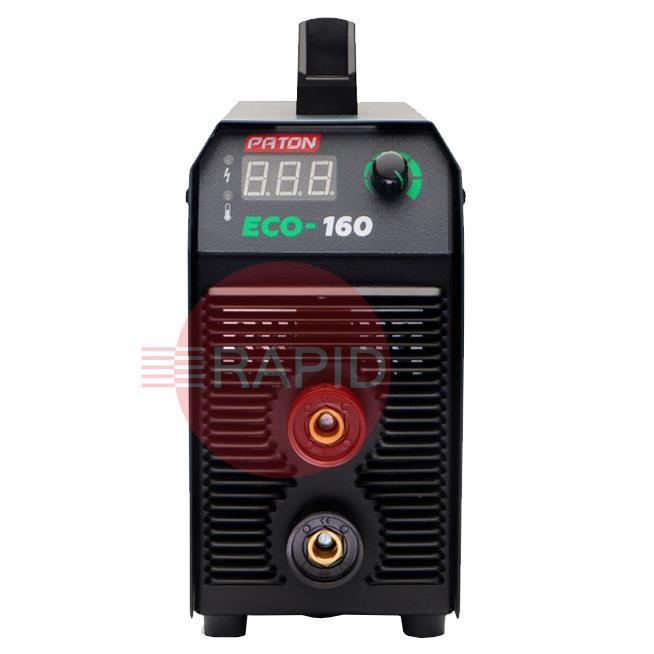

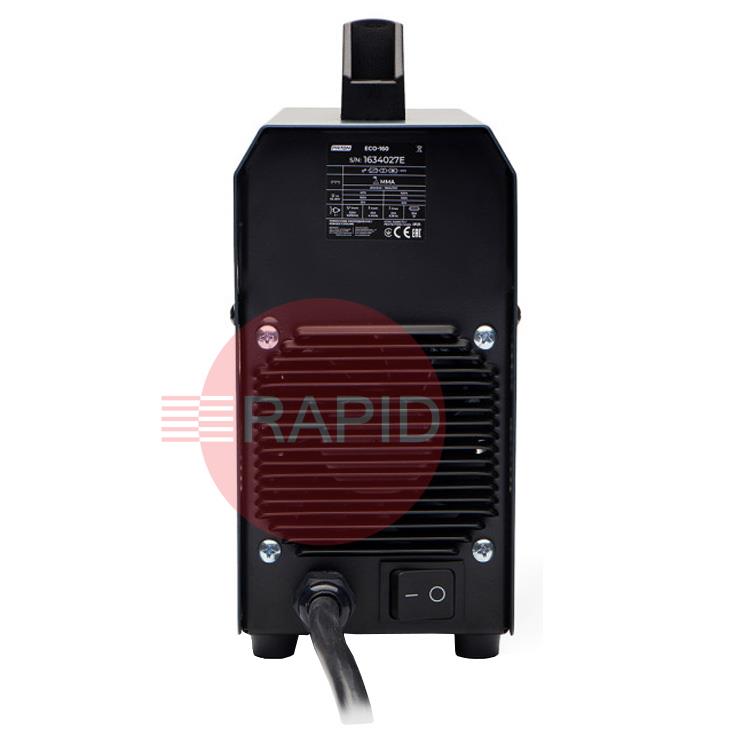

The PATON ECO-160-C is a compact 160A arc welder, perfect for field work and household conditions. The device's small size makes it very mobile. The PATON ECO-160-C welder has a work stabilisation system installed, allowing it to be powered by a generator. The 160A output allows the use of electrodes from 1.6mm to 4.0mm in diameter. The ECO-160-C benefits from a 40% duty cycle and 5-year warranty.

  • Powerful Output in a Compact Package: Weld with confidence — the ECO 160-C delivers up to 160A of steady, reliable power for MMA (Stick) welding. For electrode diameters 1.6mm up to 4.0mm
  • Lightweight & Portable: Weighs just 3.7 kg – ideal for site work, garages, and hard-to-reach spots
  • Ukrainian Engineering: Built by Paton™ in Europe, one of Europe’s most trusted welding brands with over 60 years of innovation
  • Generator Ready: Possibility to work on long extension cables as well as with a generator
  • Hot-Start, Arc-Force and Anti-Force functions
  • 5-Year Warranty

Product Details

The PATON ECO-160-C MMA stick welder is designed for manual MMA arc welding with direct current. ECO series is dedicated for home users who require a functional device with a nominal current of 160A. This is sufficient to work with any electrode from 1.6mm to 4mm, including low-fusing electrodes. The duty cycle is at least 40%, which makes it possible to carry out most tasks on a semi-industrial scale, and it works perfectly in the household sector.

Specification

Mains Voltage: 230V
Welding Current Range: 20 - 160A
Duty Cycle: 160A at 40%, 101A at 100%
Maximum Power Consumption: 5.5kVA
Open Circuit Voltage: 80V
Dimensions (L x W x H): 200mm x 100mm x 260mm
Weight: 3.7kg
Protection Class: IP33

Perfect For

  • Household & DIY Use
  • Field Work
  • Small Workshops

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   PATON MINI-C ECO MMA User Manual

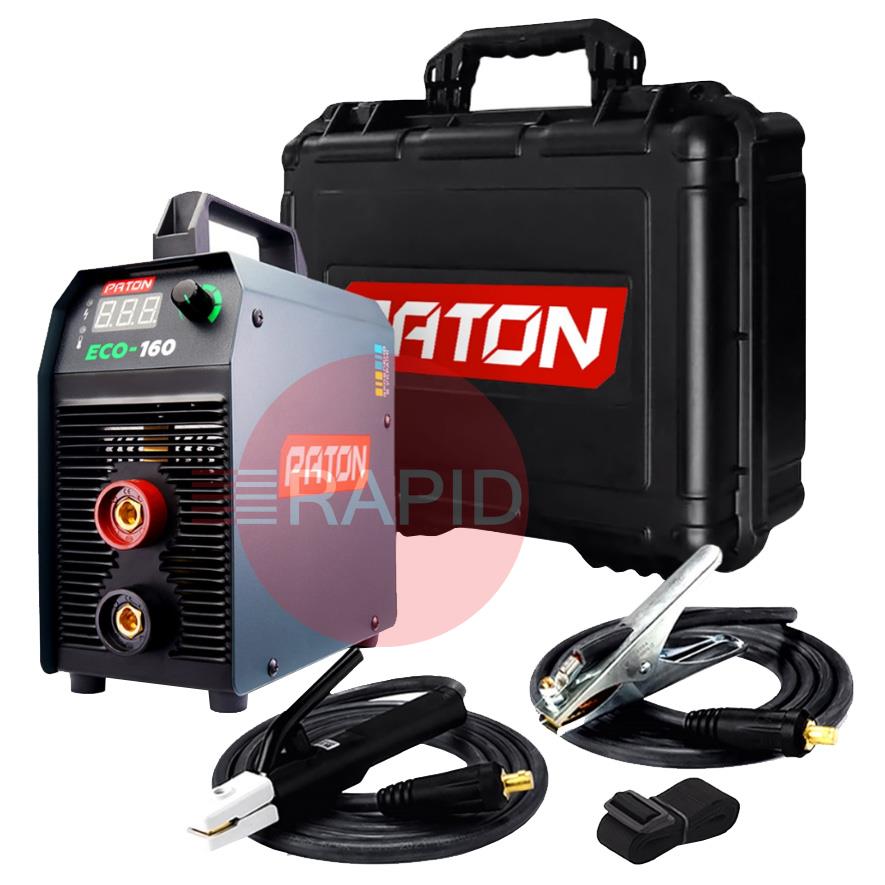

What's Included

PATON-CASE PATON Carry Case

PATON Carry Case

PATON-SSTRAP PATON Shoulder Strap

PATON Shoulder Strap
PTN-MMA16CBL PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²

PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²

WARRANTYP5 PATON 5 Year Warranty

PATON 5 Year Warranty

Warranty and Support

  • 5 Year Warranty
  • UK based service centre and support hotline
  • Access to spare parts and calibration service

Whether you're welding at home, in the field, or on the job site, the PATON ECO-160-C Arc Welder gives you the power, precision, and portability you need, without the bulk.
