Rapid Ref : 1012020012

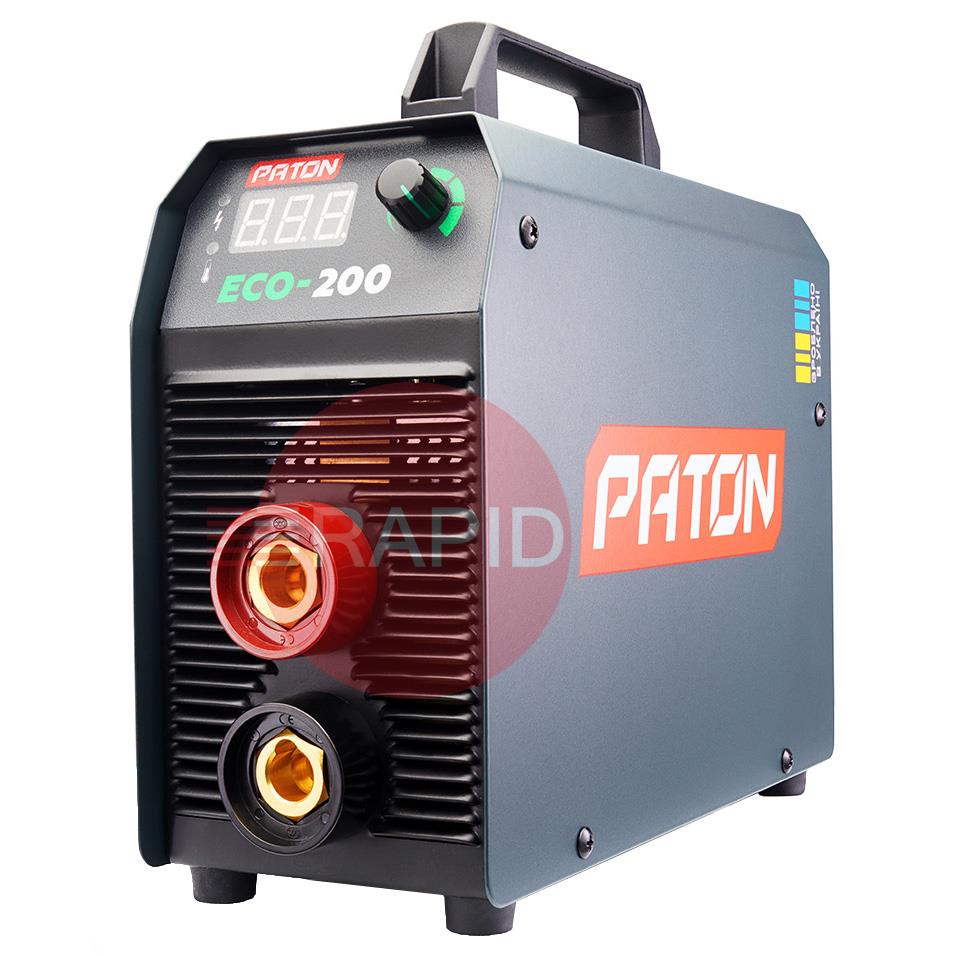

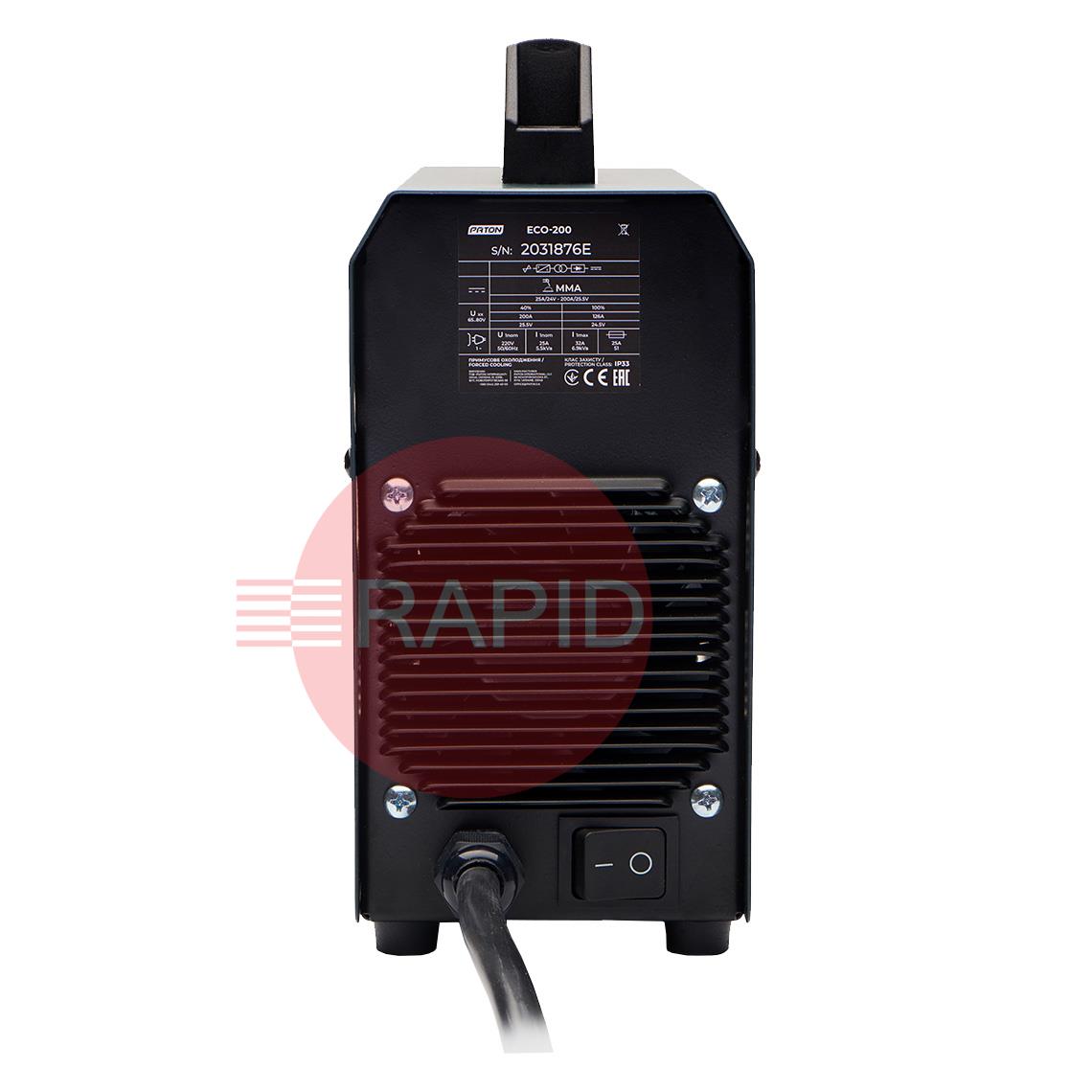

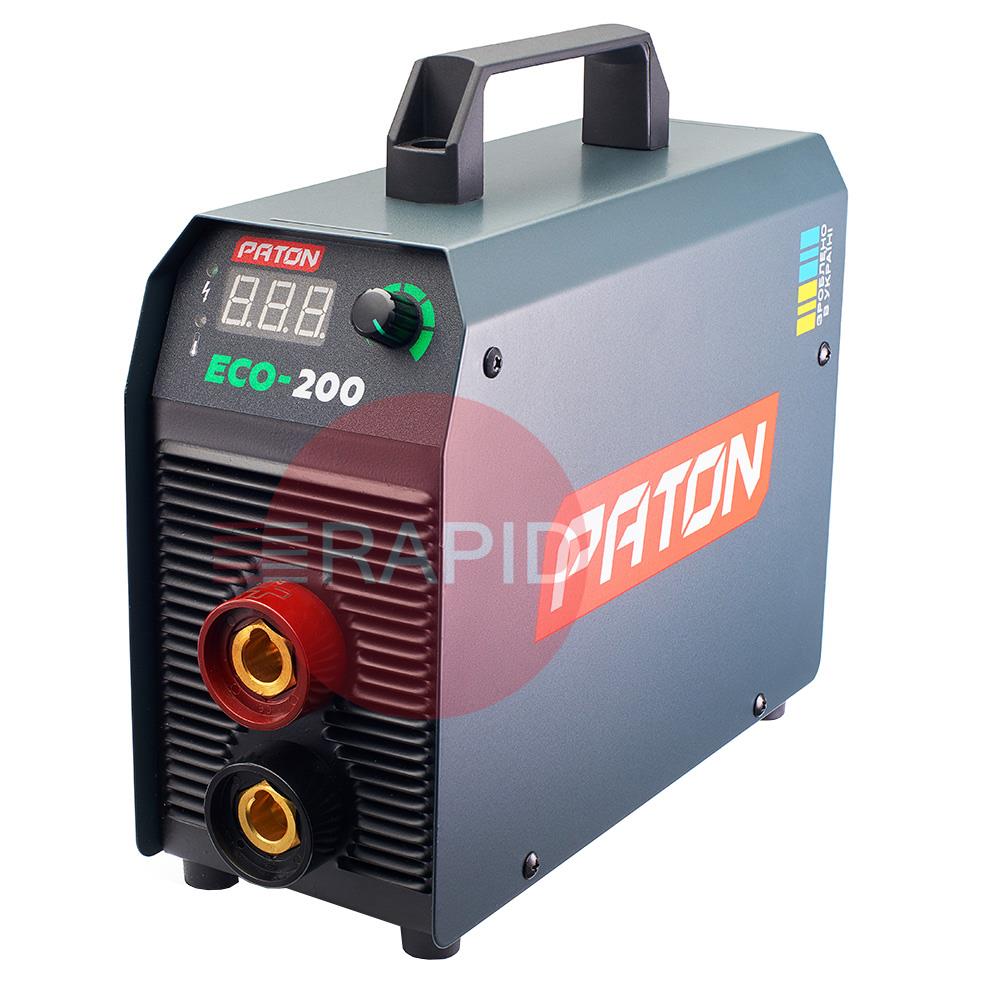

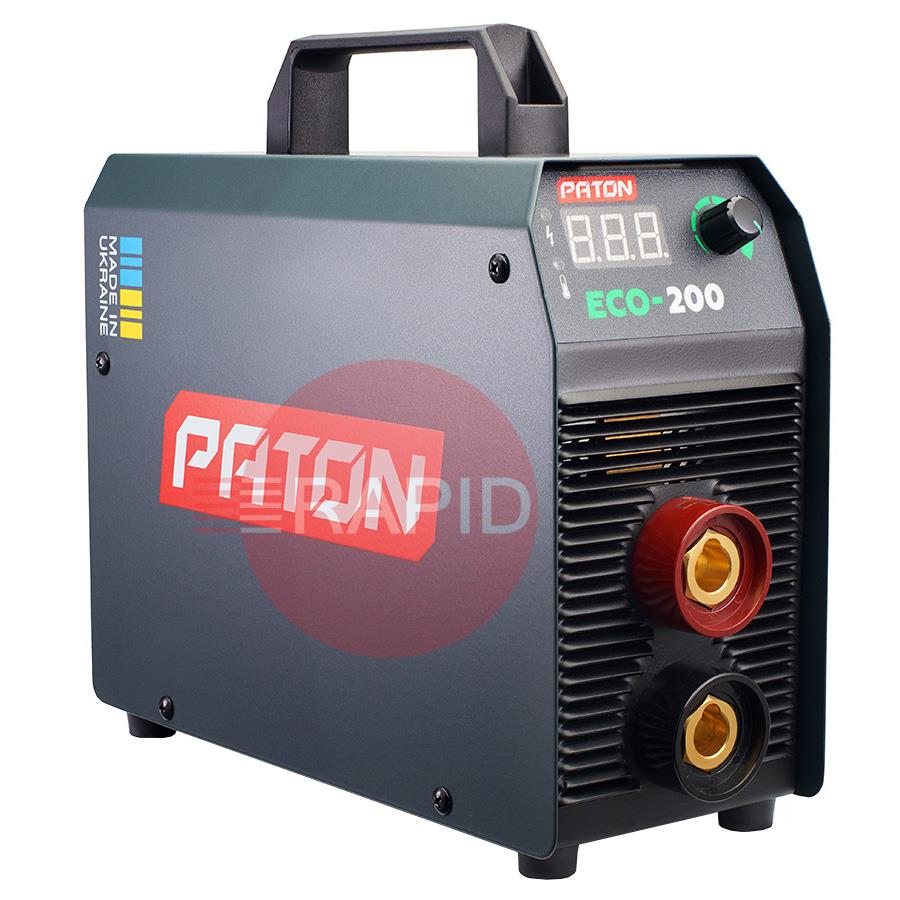

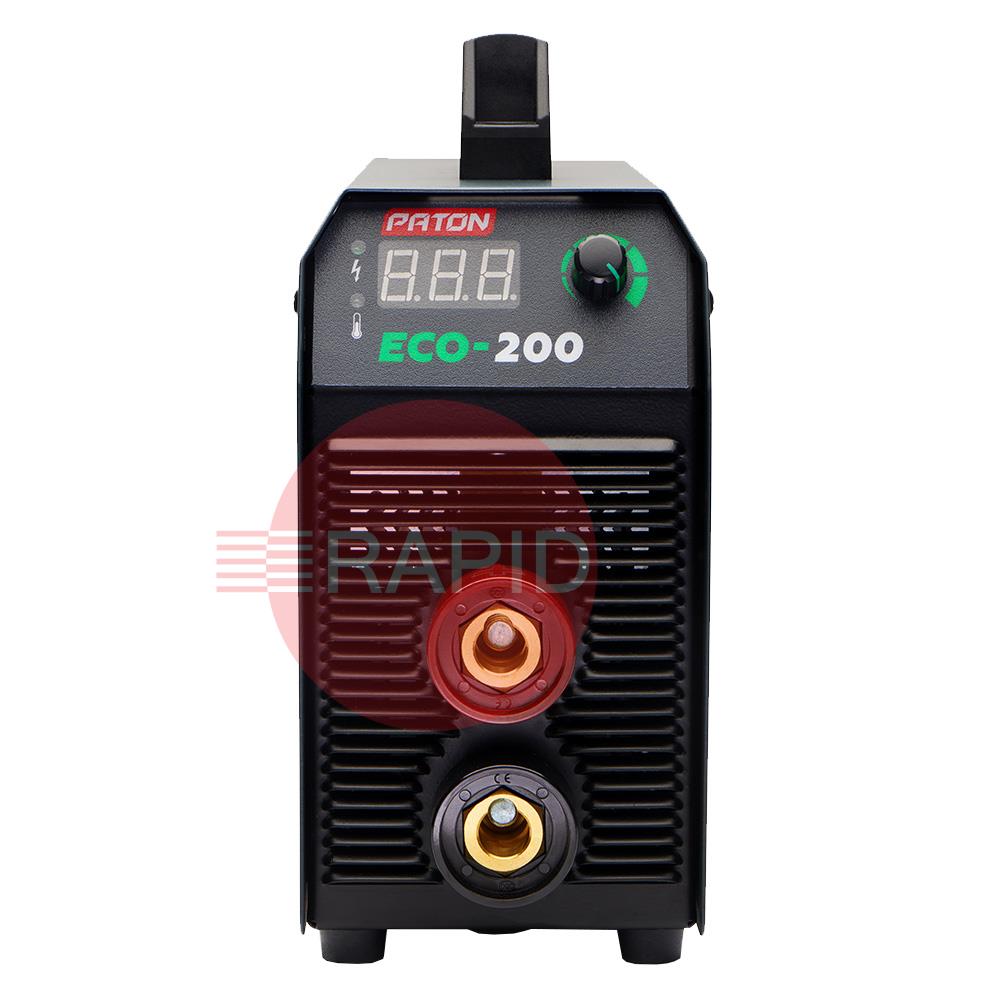

PATON ECO-200-C Inverter 200A Arc Welder - 230v, 1ph
1012020012

Click here to see what's included
£170.83  EX VAT
 Buy in 3 easy interest free payments of £56.94† with

The PATON ECO-200 is a compact 200A arc welder, perfect for field work and household conditions. The device's small size makes it very mobile. The PATON ECO-200 welder has a work stabilisation system installed, allowing it to be powered by a generator. The 200A output allows the use of electrodes with diameters from 1.6mm to 5.0mm. The ECO-200 benefits from a 40% duty cycle and 5-year warranty.

  • Powerful Output in a Compact Package: Weld with confidence — the ECO 200 delivers up to 200A of steady, reliable power for MMA (Stick) welding. For electrode diameters 1.6mm up to 5.0mm
  • Lightweight & Portable: Weighs just 4 kg – ideal for site work, garages, and hard-to-reach spots
  • Ukrainian Engineering: Built by Paton™ in Europe, one of Europe’s most trusted welding brands with over 60 years of innovation
  • Generator Ready: Possibility to work on long extension cables as well as with a generator
  • Hot-Start, Arc-Force and Anti-Force functions
  • 5-Year Warranty

Product Details

The PATON ECO-200 MMA stick welder is designed for manual MMA arc welding with direct current. ECO series is dedicated for home users who require a functional device with a nominal current of 200A. This is sufficient to work with any electrode from 1.6mm to 5mm, including low-fusing electrodes. The duty cycle is at least 40%, which enables most tasks to be carried out on a semi-industrial scale, and it works perfectly in the household sector.

Specification

Mains Voltage: 230V
Welding Current Range: 25 - 200A
Duty Cycle: 200A at 40%, 126A at 100%
Maximum Power Consumption: 6.9kVA
Open Circuit Voltage: 80V
Dimensions (L x W x H): 270mm x 110mm x 270mm
Weight: 4kg
Protection Class: IP33

Perfect For

  • Household & DIY Use
  • Field Work
  • Small Workshops

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   PATON MINI-C ECO MMA User Manual

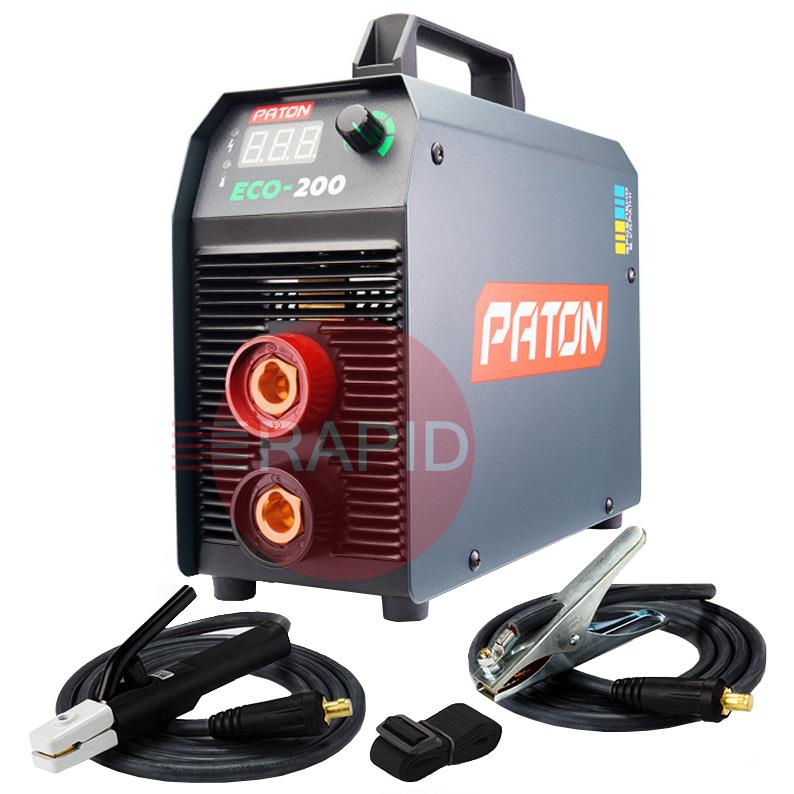

What's Included

PATON-SSTRAP PATON Shoulder Strap

PATON Shoulder Strap

PTN-MMA16CBL PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²

PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²
WARRANTYP5 PATON 5 Year Warranty

PATON 5 Year Warranty

Warranty and Support

  • 5 Year Warranty
  • UK based service centre and support hotline
  • Access to spare parts and calibration service

Whether you're welding at home, in the field, or on the job site, the PATON ECO-200 Arc Welder gives you the power, precision, and portability you need, without the bulk.
