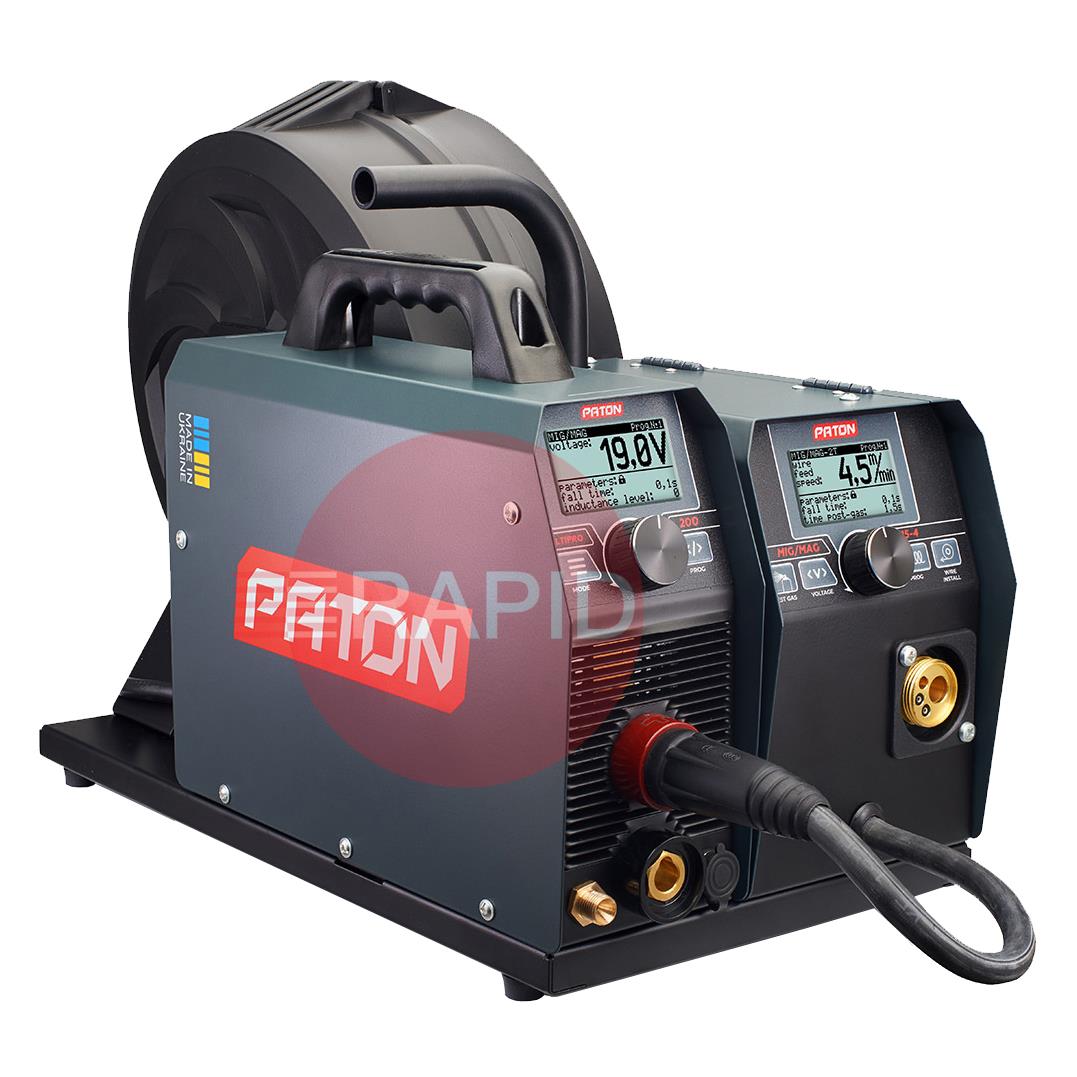

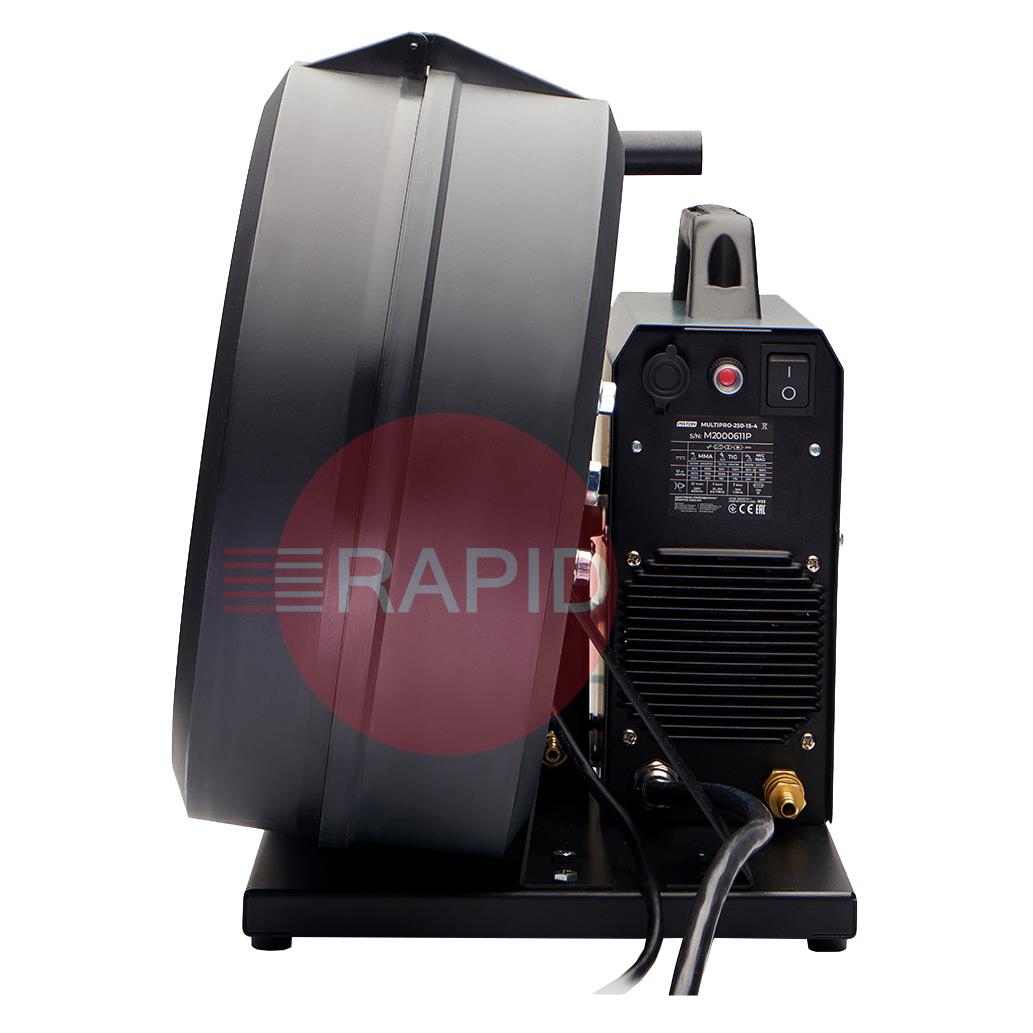

PATON MultiPRO 200-15-4 Multi Process 200A UK Spec MIG, TIG, MMA Welder Package - 230v, 1ph
1044020012

Name: PATON MultiPRO 200-15-4 Multi Process 200A UK Spec MIG, TIG, MMA Welder Package - 230v, 1ph
SKU: 1044020012
Price: 812.50 GBP

Click here to see what's included

£812.50 EX VAT

SSP Suggested Selling Price = £1130.00 YOU SAVE £317.50

Buy in 3 easy interest free payments of £270.83^† with

Additional items to consider

All machines supplied by Rapid Welding are load tested, have a gas hose with 3.8" fittings supplied and a UK plug adaptor included.

Multi Process MMA, MIG-MAG, TIG HF
Function: Non-contact arc ignition (HF), brazing, gas-free welding, inductance adjustment, pulse x3, aluminium MIG, VRD, 2t/4T, IGBT
Ukrainian Engineering: Built by PATON™ in Europe, one of Europe’s most trusted welding brands with over 60 years of innovation

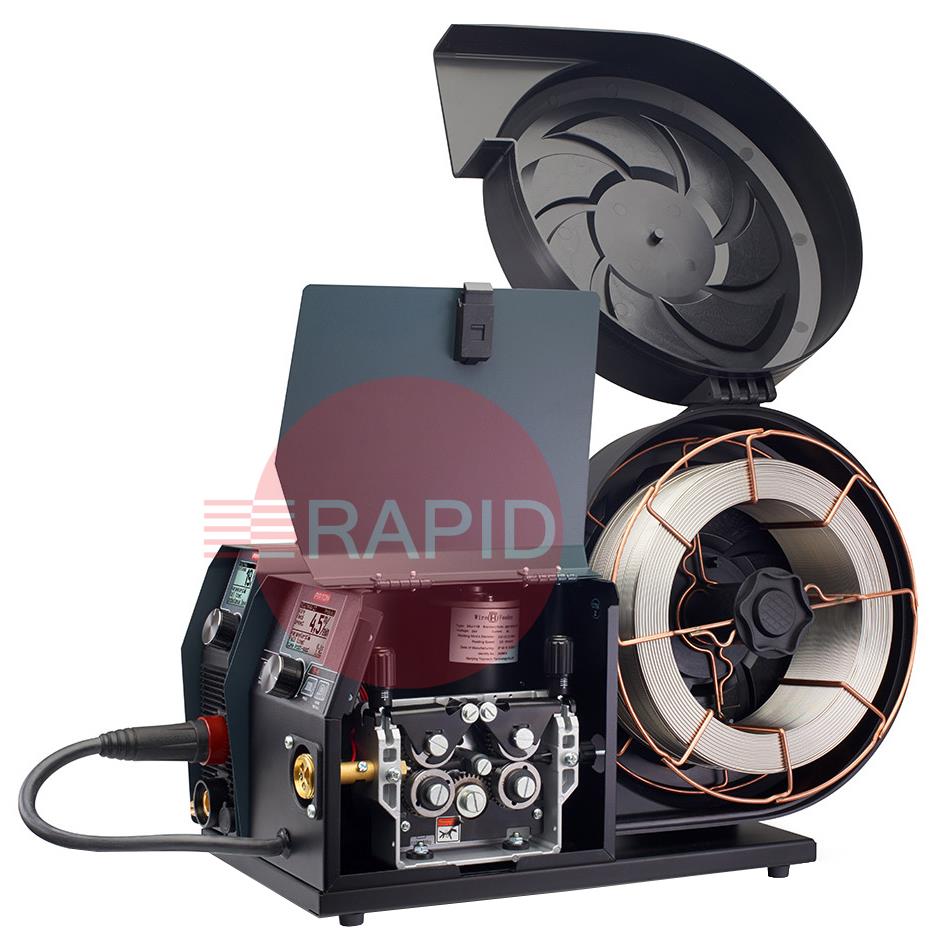

Wire Feeder: 4 rollers, supporting 5kg, 15kg and 18kg spool

3-Year Warranty

Product Details

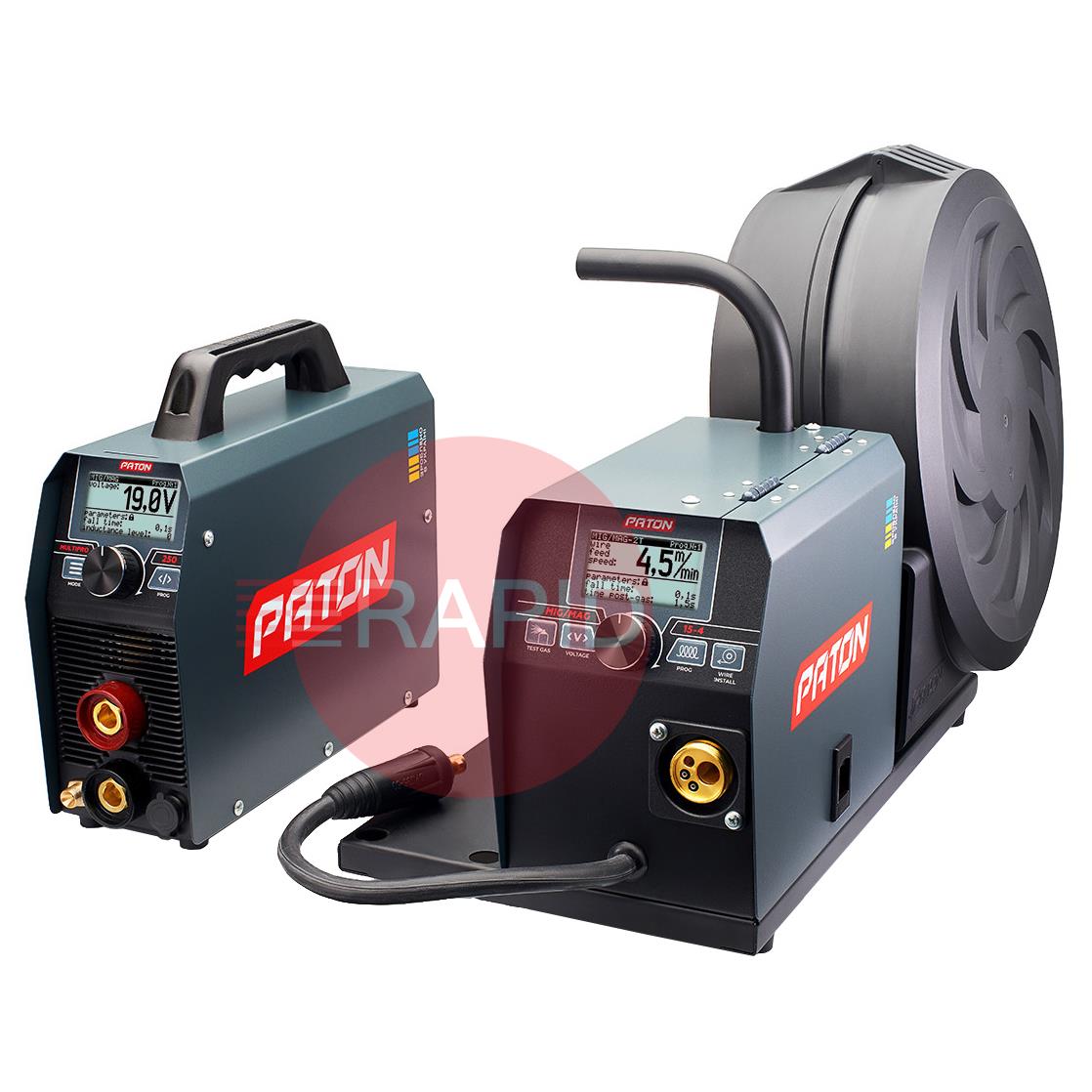

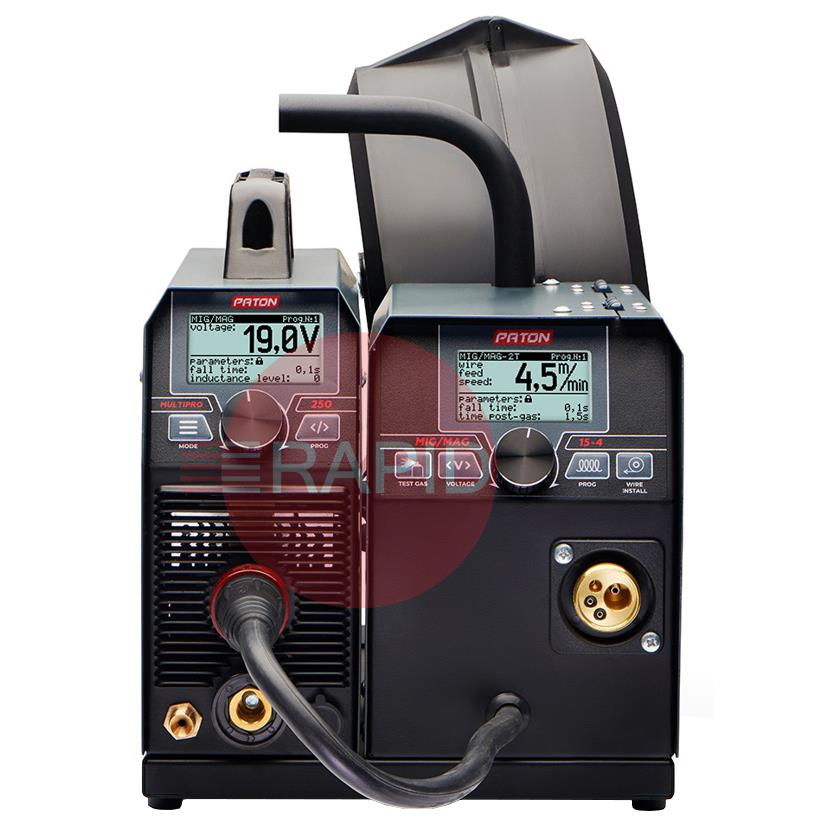

The digital multifunctional welder inverter PATON MultiPRO 200 15-4 230V is intended for semi-automatic welding with the MIG/MAG method, manual arc welding with the MMA method, and arc welding with the TIG HF method in a shield of gases and protective mixtures with direct current. These machines operate from a 230V single-phase power supply and have an IP33 protection rating.

An additional advantage is the CLEAN mode, which offers cleaning of stainless-steel parts and their weld seams from oxides and heat tint, as well as surface polishing to restore its aesthetic appearance and corrosion resistance properties. To operate in CLEAN mode, it is necessary to additionally purchase a special electrolytic liquid for the passivation of high-alloy steels and a PATON TIG brush. Without these accessories, cleaning and polishing of stainless steel using this function is not possible.

Specification

Mains Voltage:	230V
Welding Current Range:	10 - 200A
Duty Cycle:	200A at 70%, 167A at 100%
Maximum Power Consumption:	7.5kVA
Dimensions (L x W x H):	360mm x 260mm x 270mm
Weight:	13.3kg
Protection Class:	IP33

Perfect For

Welding a wide range of products, both of low-carbon and low-alloy steels, and high-alloy steels in workshops, production shops, when manufacturing and assembling metal constructions.

Brochures & Manuals

BROCHURES & MANUALS

PATON MultiPRO User Manual

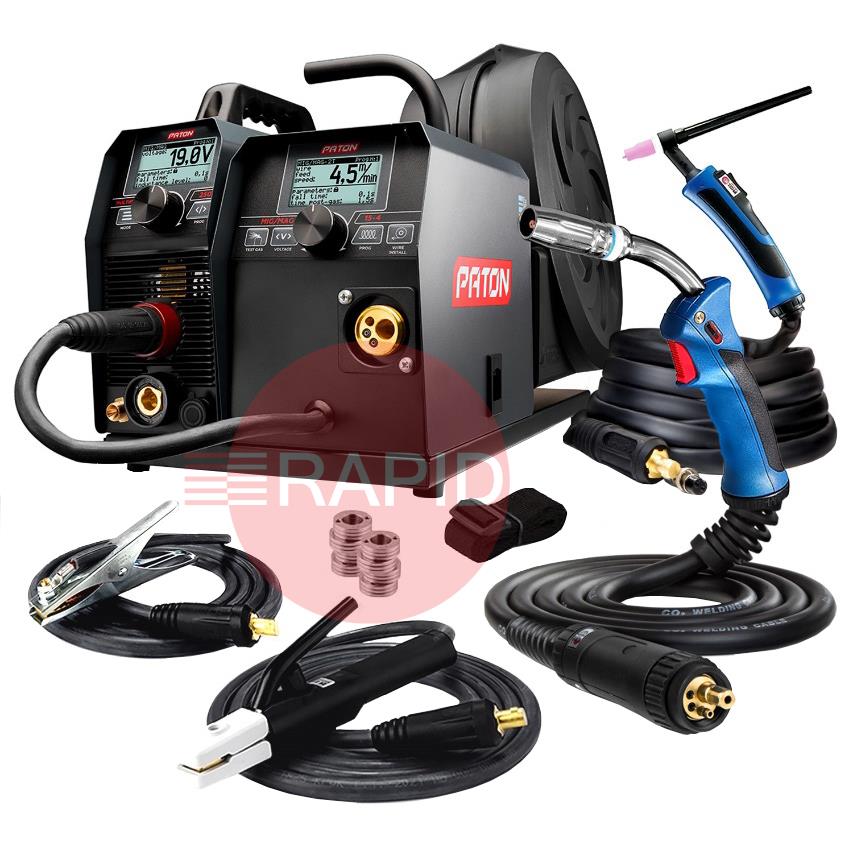

What's Included

	Binzel Abimig Grip A 155 LW 3 Meter Mig Torch (Air Cooled) 190A CO2, 170A Mixed Gas
	Binzel Abitig Grip 26 4 Meter Tig Torch (Air Cooled) 180A
	PATON Shoulder Strap
	PATON U-Groove Roller Set – Aluminium Wire: 0.8 / 1.0mm

	PATON V-Groove Roller Set – Solid Wire: 0.8 / 1.0 / 1.2 / 1.6 mm
	PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²
	PATON Quick Gas Connector
	PATON 3 Year Warranty
