    Rapid Ref : 301130-SET2

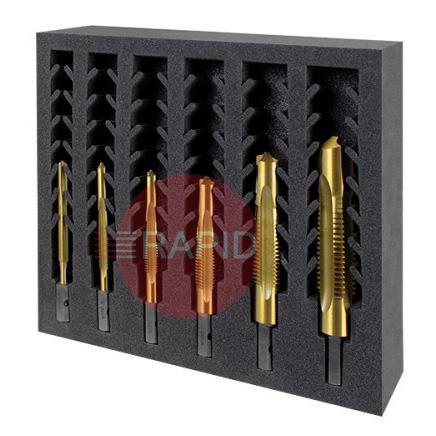

    HMT VersaDrive HD Combi Drill-Tap InsertFoam 6 Piece Set (M8 - M24)
    301130-SET2

    Click here to see what's included

    £570.22  EX VAT
    SSP Suggested Selling Price = £670.85  YOU SAVE £100.63
     Buy in 3 easy interest free payments of £190.07† with

    HMT VersaDrive Heavy Duty Impacta-Drill Taps are primarily designed to be adapted for use with a reversible Magnet Drill to drill and tap heavy plate in 1 easy operation. However, they can also be adapted with an impact wrench to enlarge and tap existing holes. Due to the high rotational torque generated by larger thread sizes, Heavy Duty Impacta-Drill Taps are not recommended for use in a standard drill chuck.

    Ground Flute Twist Drill Creates the perfect Tapping Hole. Safer Tapping with Minimal Kickback; specially hardened for impact wrench use. High-grade tool Steel with ground flutes for high accuracy & long life. GoldMax low friction Titanium Coating to stop heat burnout. High Strength, Non-slip shank design.

    • Fast Tapping with Minimal Kickback
    • Specially hardened for Impact Wrench use
    • Automatic chip clearance when Impact Tapping
    • High-Grade Tool Steel for high accuracy & long life
    • GoldMax low-friction titanium coating to stop burn-out
    • High strength, non-slip shank design
    • Unique Dual-Point Starting Angle for easy alignment & fast cut
    • Ground Flute Twist Drill Creates the perfect Tapping Hole
    • High Strength, Non-slip shank design

    Product Details

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    HMT Drill Taps FAQs

    Answers to common questions about combination drill-taps that drill and thread a hole in a single operation.

    Why do I need cutting fluid when using a drill-tap?icon-minus-redicon-plus-red

    Tapping is a high-friction cut because the tap flanks are in contact with the work along the whole thread. Without proper lubrication, friction and heat build up, the tool wears faster and the thread finish suffers, and the risk of the tool seizing and breaking goes up.

    A purpose-made cutting or tapping fluid is usually the better choice, and tougher materials such as stainless and alloy steels generally need more lubrication than aluminium or cast iron. Apply it before you start and keep topping it up, especially in deeper holes where fluid struggles to reach the cutting edges.

    Can I use a drill-tap in a blind hole?icon-minus-redicon-plus-red

    It depends on the design, so check the maker's instructions for your tool. Some combination tools are specifically recommended for through holes only, because the chips have nowhere to go at the bottom of a blind hole.

    If a blind hole is unavoidable, remember that the drill point and the unthreaded lead-in reduce the useful thread depth, and chips build up at the bottom and reduce it further. Allow extra depth beyond the thread you need, clear swarf regularly, and never drive the tool into the bottom of the hole, because that is a common way to break it. For deep blind holes, a separate drill and a spiral-flute tap are often the safer approach.

    Does the drill-tap need different speed and feed for drilling and tapping?icon-minus-redicon-plus-red

    A drill-tap does two jobs in one pass, so follow the maker's instructions for speed and feed. The general principle is that the drill section should break through the workpiece before the tap section starts to cut, so do not stop or force the tool while the threaded part is entering the hole.

    In practice use a slow, steady, controlled rotation and a feed that lets the tool cut rather than rub. Exact figures depend on the tool, the material, the machine and the thread size, so use the data supplied with the tool rather than a general figure.

    How do I choose the right thread size and type?icon-minus-redicon-plus-red

    Choose the thread to match the bolt, stud or fitting that will go into it. That means matching both the diameter and the pitch, and also the thread form: metric, UNC (unified coarse inch) and BSW (Whitworth) are not interchangeable even when the sizes look close.

    Metric pitch is given in millimetres, while inch threads are given as threads per inch. A pitch gauge and calipers on the mating male thread will tell you what you have. A quick check is that a correct bolt should start by hand for several turns; if it does not, it is the wrong thread. Do not force a mismatched thread, as that risks cross-threading and a weak joint.
