Rapid Ref : 805036-T

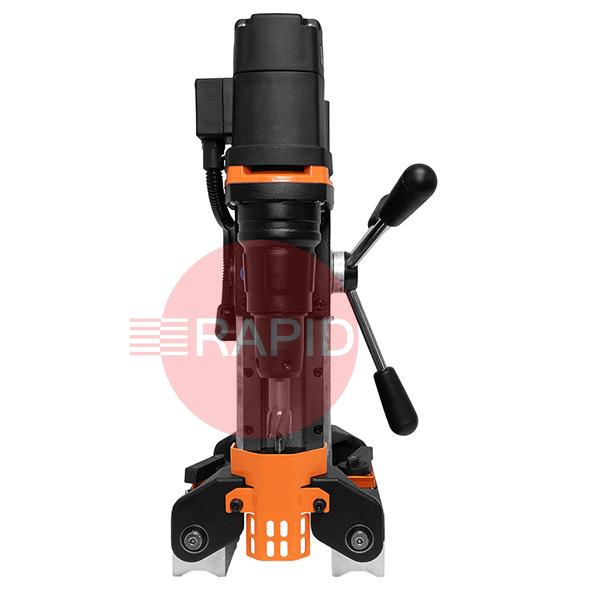

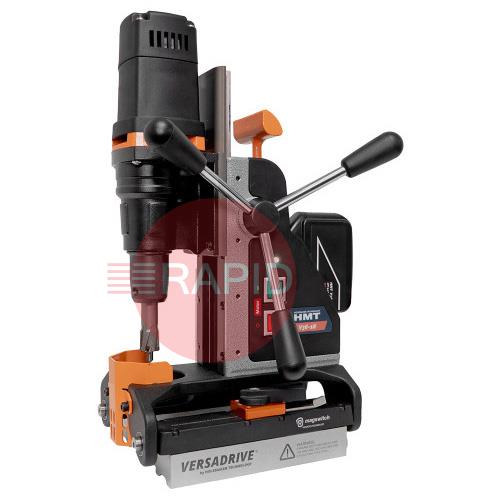

HMT Steelbor Cordless V36-18 Pipe Magnet Drill Kit with STAKIT Base 350 Case, 2x Batteries & Charger
805036-T

Select Option
Prices From £2530.00 ex VAT
 Buy in 3 easy interest free payments of £843.33† with

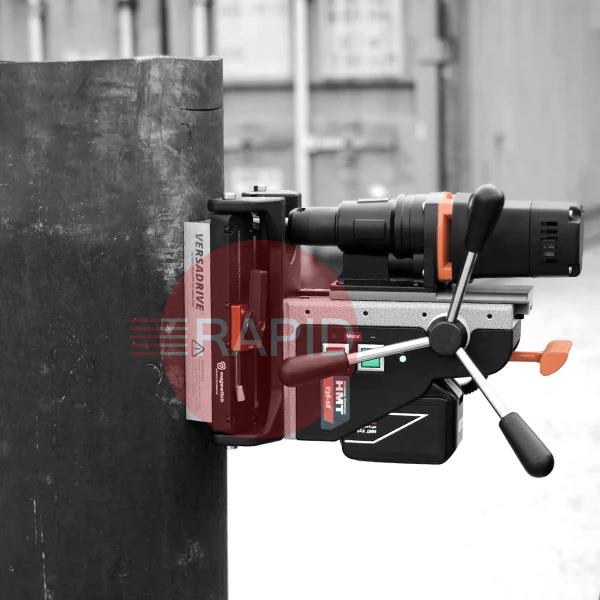

The V36 Pipe delivers cordless hole making with secure clamping on curved surfaces — ideal for pipework in any location. As the world’s first cordless pipe mag drill, the V36 Pipe is optimised for steel pipe and tube applications where cables are a hazard. It uses a dual-swivel magnet base for safety and control, and integrates with VersaDrive tooling for versatile performance.

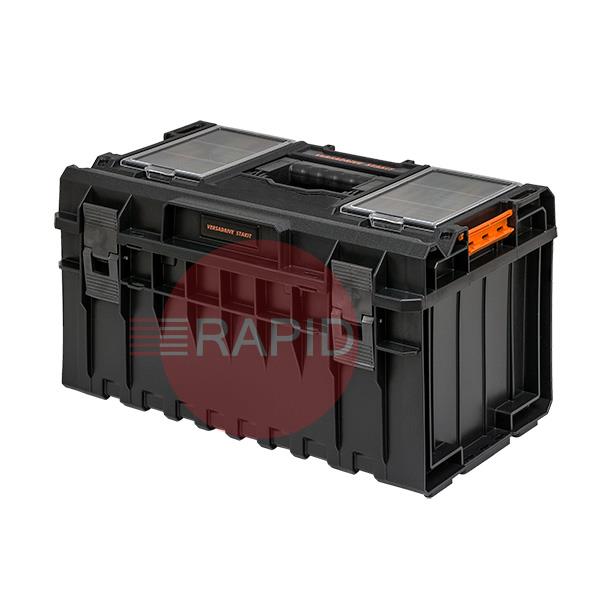

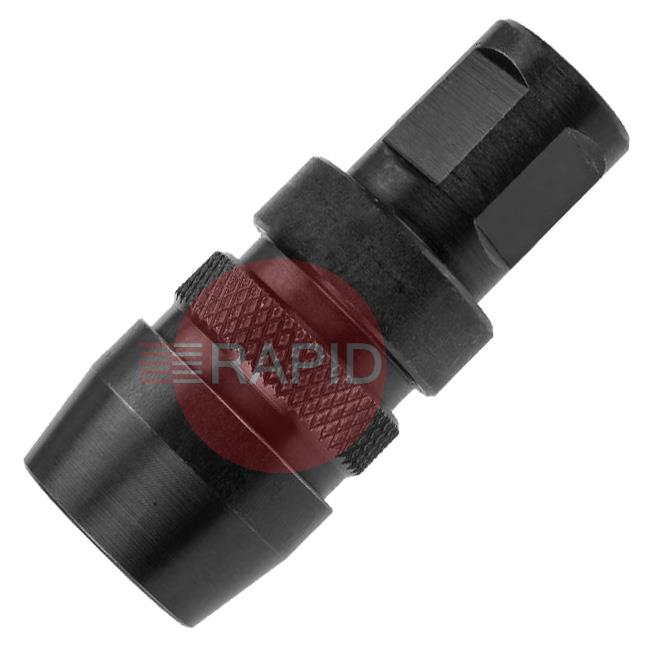

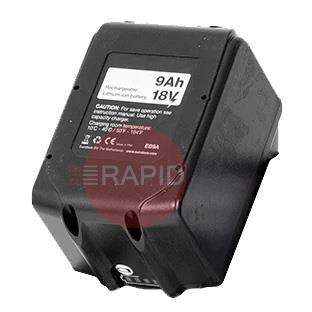

These mag drills are supplied with case, 2x 18V batteries, compact charger, VersaDrive Rapid-Lock adaptor, restraint strap and heavy duty metal guard.

  • Designed for pipes from 80mm OD and above
  • Cordless operation ideal for access limited job sites
  • Dual pivoting magnet holds safely on curved surfaces
  • Swivel base allows easy positioning and tool changes
  • Weldon arbor and VersaDrive compatible and standard
  • Lightweight and portable with STAKIT integration

Product Details

Specification

MAX TCT CUTTER CAPACITY 36mm
MAX HSS CUTTER CAPACITY   32mm
MAX CUTTER LENGTH 110mm
TWIST DRILL CAPACITY 13mm
COUNTERSINKING 10-25mm
LENGTH 204mm
WIDTH (INC HANDLES) 220mm
HEIGHT (MIN-MAX) 315-455mm
WEIGHT (WITH 4AH BATTERY)
11.35Kg
STROKE 140mm
MAGNETIC FORCE 532Kg
MOTOR POWER 1000W
TOTAL POWER 1000W
SPEED RPM (No Load) 530
SPINDLE WELDON 3/4"
ARBOR 19.05mm 3/4" Weldon
COOLANT SYSTEM Optional Extra
WARRANTY 1 Year
BATTERY CAPACITY 18V 4Ah / 9Ah Li-ion

Brochures & Manuals

HMT Mag Drills FAQs

Straight answers to the questions people ask most when choosing and using magnetic drilling machines.

What is a magnetic drill and what is it used for?icon-minus-redicon-plus-red

A magnetic drill is a portable drilling machine with a powerful electromagnet in its base. When switched on, the magnet clamps the machine firmly to steel, so you can drill accurate holes on site or in the workshop without a drill press.

It is mainly used with annular (hollow core) cutters to make clean holes in structural steel, plate, beams, channel, pipe and fabrications. It is widely used in steel erection, fabrication, shipbuilding, rail and plant maintenance.

How do I choose the right magnetic drill?icon-minus-redicon-plus-red

Start with the largest hole diameter and the deepest cut you need, then match the machine's capacity to that. Next consider the type of work: heavy plate in a workshop suits a larger, more powerful machine, while site work at height or in tight spaces favours a lighter, compact one.

Also think about power supply, whether you need variable speed for different cutter sizes and materials, and whether you need reverse for tapping. Check the spindle fitting so it suits the cutters you plan to use. Our team can help you choose.

What can a magnetic drill be fixed to, and what affects the magnet's grip?icon-minus-redicon-plus-red

The magnet only holds well on ferrous steel. It will not grip aluminium, stainless steels that are non-magnetic, copper or plastics, so those need a clamp, vacuum base or other fixing method.

Holding force depends on the thickness, flatness and cleanliness of the steel. Thin sheet, rough or painted surfaces, rust, swarf under the base and curved surfaces all reduce the grip. Clean the surface and the magnet face, and use the manufacturer's guidance on minimum material thickness. On pipe or uneven work, use a suitable pipe or V-base and a safety chain or strap.

Which cutters and accessories do I need with a magnetic drill?icon-minus-redicon-plus-red

Most magnetic drills are used with annular cutters, which cut only the outer ring of the hole and leave a slug of metal. These are quicker and need less power than a twist drill. You also need a pilot pin matched to the cutter, an arbor or adaptor that fits the spindle, and a suitable cutting fluid.

A twist drill chuck adaptor or a tapping attachment may be useful for small holes or threads. Always check that the cutter shank type matches your machine's spindle before choosing.
