Rapid Ref : GS-WG180PH

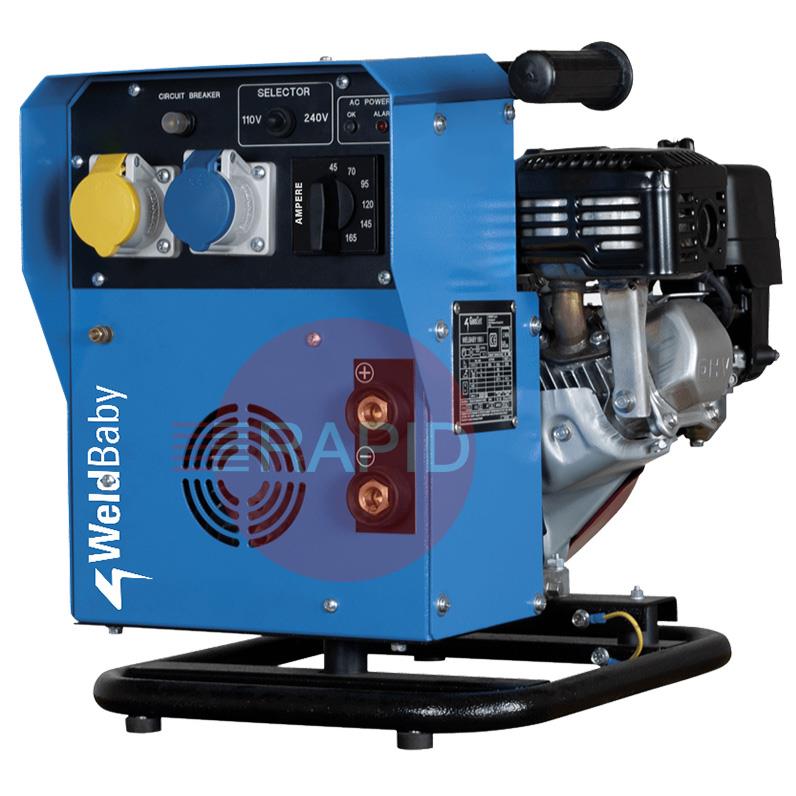

GenSet Weld Baby 180 Petrol Engine Driven Welder Generator
GS-WG180PH

£2075.00 EX VAT

Buy in 3 easy interest free payments of £691.67^† with

Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

Compact and lightweight portable engine driven welder. Equipped with a stage 5, 4000 RPM Honda engine. Just like all the GenSet engine driven welders, it is designed to be used as both generator and welder simultaneously. Its simple and smart design allows a practical and easy use.

Low oil shutdown device
1 x 16A 110V single phase socket
1 x 16A 230V single phase socket
Power output protection
Automatic idle device when no load is connected

Product Details

Technical Specifications

Noise Level (LWA)	98 (73dB a 7m)
Generator 50Hz	PMG
Single Phase Max. Power	1kVA - 230V
Single Phase Max. Power	0.5kVA - 110V
Power Factor	Cos 1
DC Welding	Electrotechnical current regulation
Duty Cycle @ 60%	150A - 24V
Output Range	40A - 150A
Open Circuit Voltage	70V
Max Welding Rod	3.25mm

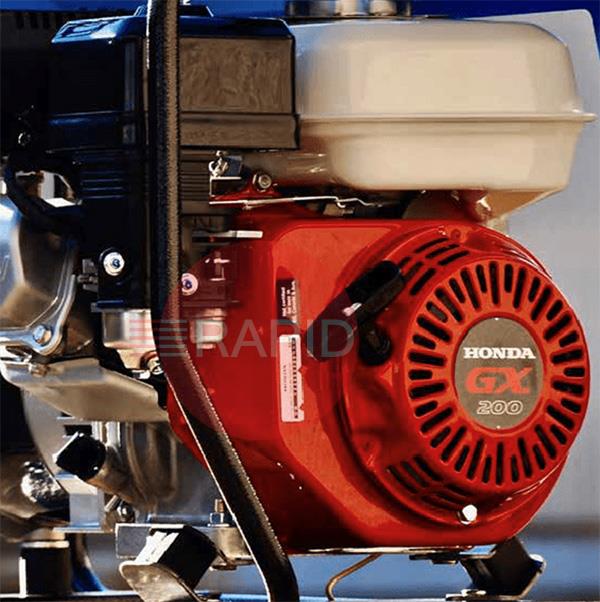

Honda Engine	GX 200 4000RPM
Fuel	Petrol
No. Cylinders	1
Power	5.1 HP (3.8kWm)
Displacement	196cm3
Cooling System	Air
Starting System	Recoil
Fuel Tank Capacity	3.1l
Fuel Consumption @ 75%	1.5l/h
Insulation Class	H
Ambient Temperature	40ºC
Altitude	1000m
Degree of Protection	IP23
Dimensions (LxWxH)	510 x 440 x 460mm
Dry Weight	35Kg
