Large Vee Head Jacks FAQs
Heads, wheel kits, ball transfers and hold-downs that adapt a heavy-duty pipe jack stand to the job in hand.
When should I use a large V head rather than a roller or wheel head?

A V head is a fixed cradle. It centres round pipe and stops it rolling, so it is the usual choice for fit-up, tacking and any job where the pipe must stay put. A large V head also suits bigger diameters that a standard head would not seat properly.
Roller or wheel heads are for turning the pipe, for example to weld in sections without moving the stand. A pipe that rolls at the slightest touch is easy to knock out of alignment, so many welders position and tack in a V head and only use rollers once the joint is secure.
How do I set up a pipe jack stand so it stays stable?

Use a solid, level surface that will carry the load, avoid slopes, dirt and gravel, and make sure every foot of the stand sits firmly on the floor. Support a pipe with at least two stands of the same height, spaced so the load is shared evenly, and think about the pipe length, diameter and weight when deciding how many you need.
Set the height before the pipe goes on, never adjust or move a loaded stand, lower the pipe gently rather than dropping it, and centre it on the head. Keep hands out from between the pipe and the head, and never let anyone stand under a supported load. Follow the maker's instructions and your risk assessment.
How do I know whether a head or wheel kit is within my stand's load rating?

Never exceed the maker's rated load for the stand. Fitting a different head, wheel kit or castors can change what the stand can safely carry, so check the rating for every part and the stand's data plate or manual before use. In practice you work to the lowest figure marked on any part of the assembly.
The rating normally assumes a load that is centred on the head and a stand on a level, solid base. Use the same head style on every stand supporting one pipe, and add another stand rather than pushing one to its limit. If you cannot find a figure for a part, ask the maker instead of guessing.

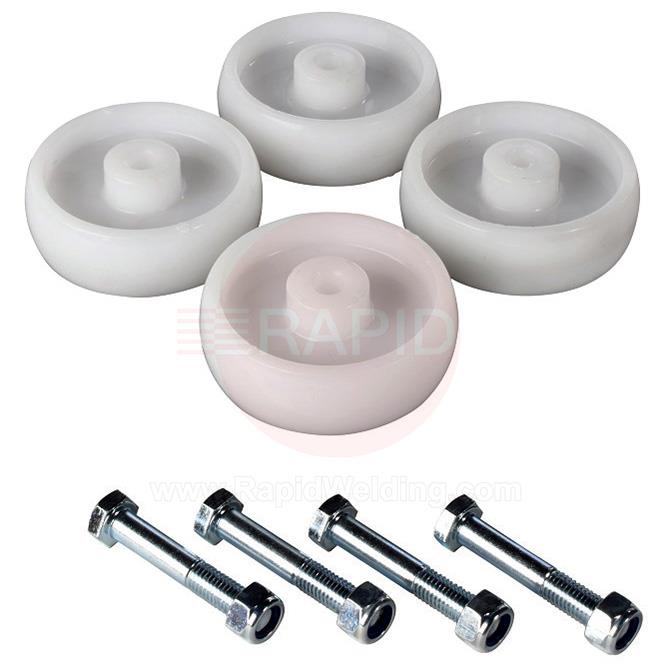

Why should I use stainless or non-metallic wheels and covers for stainless pipe?

Contact with carbon steel can leave iron particles on stainless steel. Those particles can later show as rust spots and weaken the corrosion resistance you chose stainless for. Stainless fabrication guidance says tools and handling equipment for stainless should be kept separate from carbon steel use, and that tooling and work surfaces should be cleaned before stainless goes on them.
Wheels and covers made of stainless steel or a suitable non-metallic material keep the pipe from touching bare carbon steel on the head. Dedicate them to stainless work, keep them clean, and do not reuse wheels that have been used on carbon steel.
